KCM-5211E Hardware User’s Manual
8

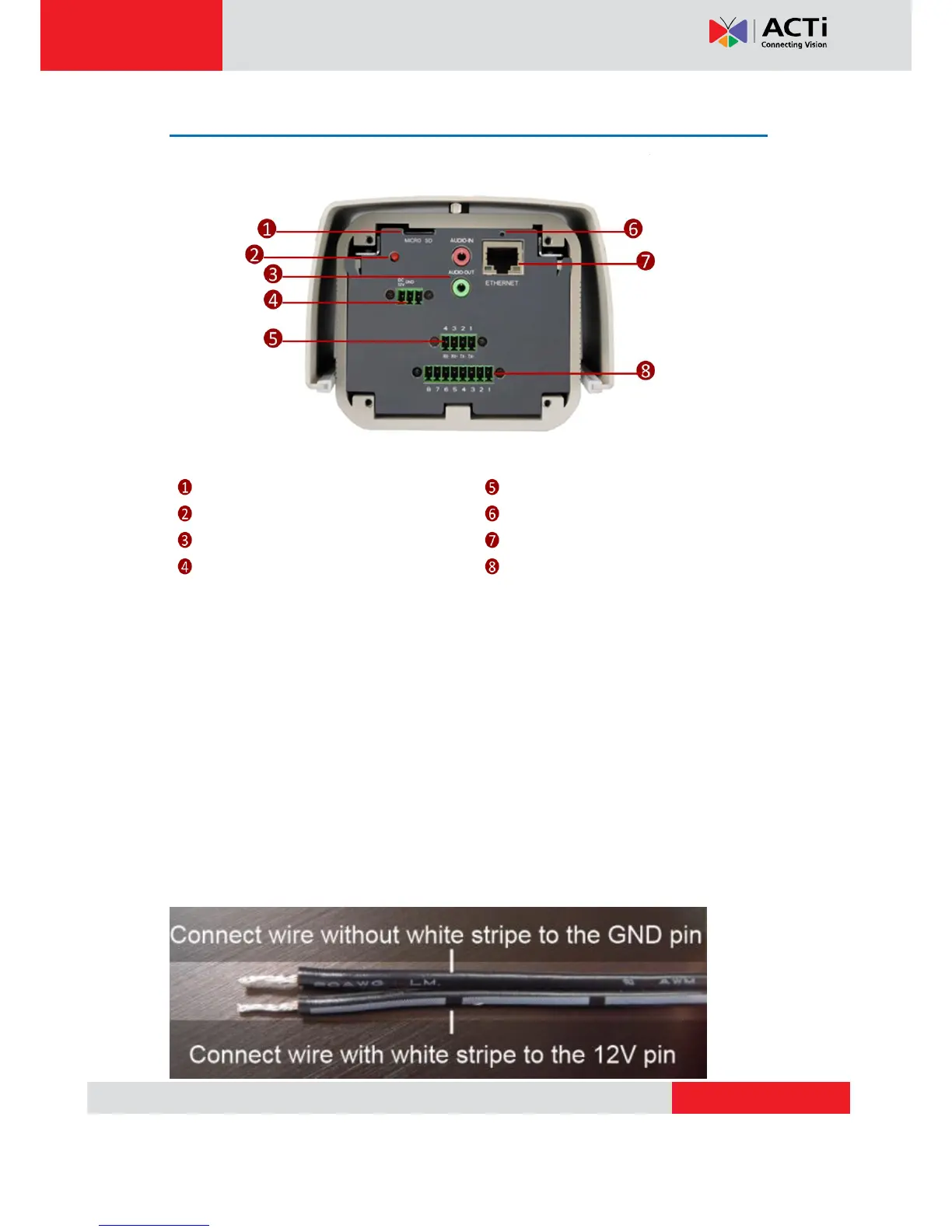

Physical description
Micro SD / Micro SDHC Card Slot
Serial Port Input
Power LED
Reset Button
Audio Input / Output
Ethernet Port
DC 12V Power Input
Digital Input / Output
1) Micro SD / Micro SDHC Card Slot*
Insert your Micro SD card here for local recording on camera
2) Power LED
This LED light will indicate current camera status.
3) Audio Input / Output
The IP device supports audio input and output with earphone jack
4) Power Input
If you use Power Adaptor to run the device, please connect the power adaptor to the terminal
block in the way shown below.
