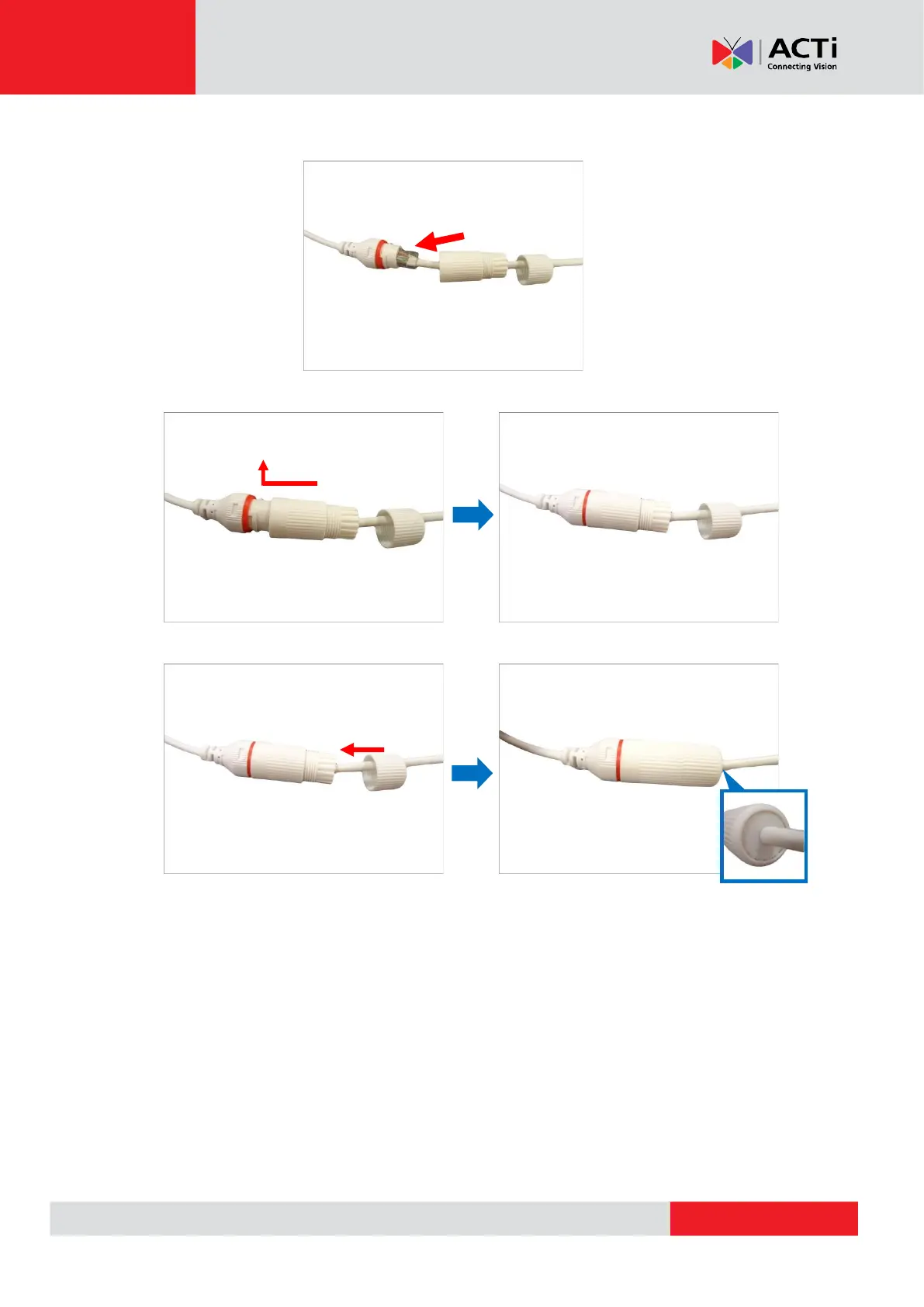

7. Connect the RJ-45 connector to the camera connector.
8. Attach the gland body to the camera connector.
9. Attach the clamping nut to the gland body to complete the cable solution.
NOTE: Make sure the clamping nut is tightly attached to the cable gland body and the sealing
insert is squeezed tightly.
