Mount the Camera to the Base

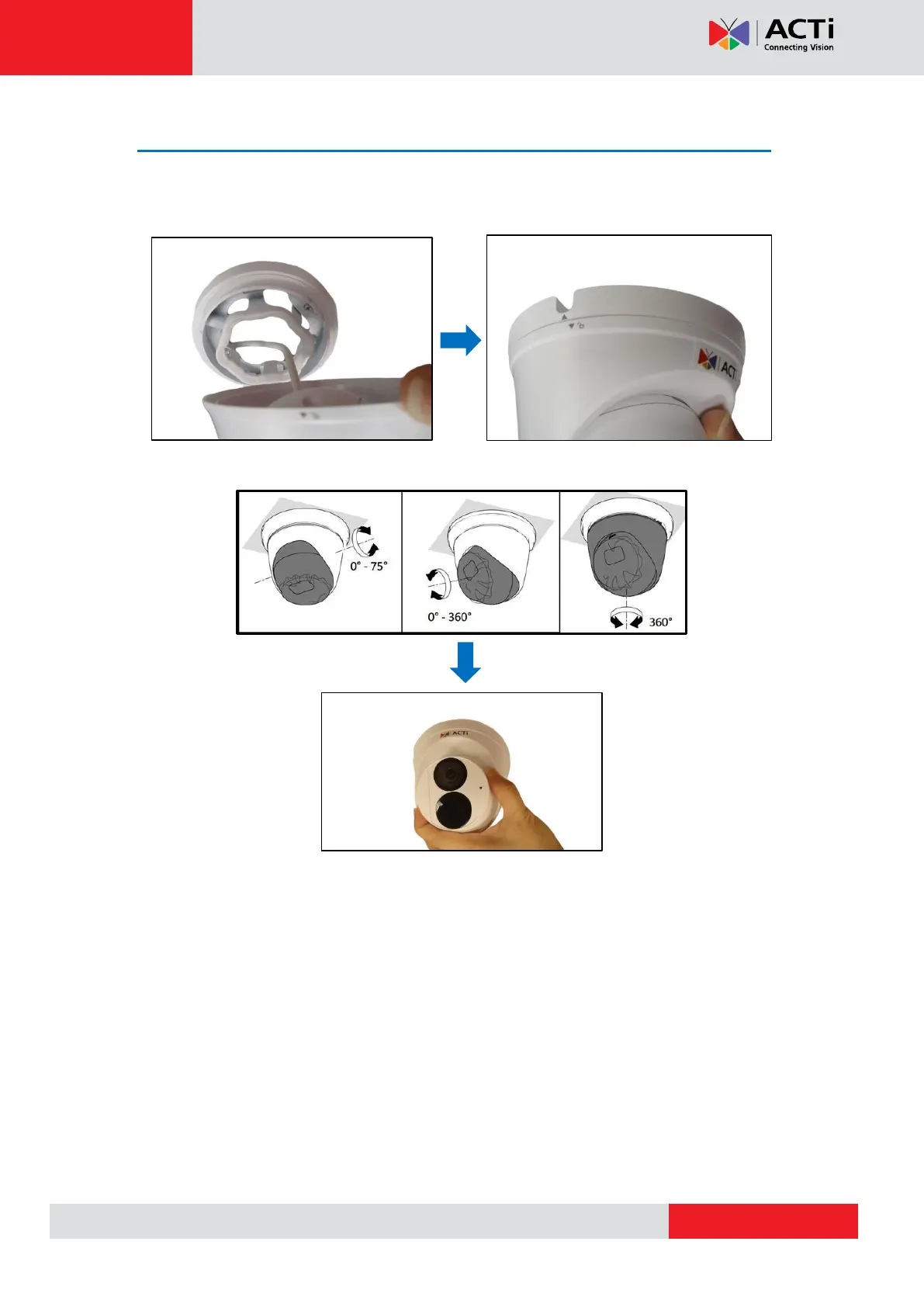

1. Push the cables through the hole. Align the two (2) arrows to mount the camera and twist
until the camera body locks to the base.
2. Move the lens to adjust the rotation and viewing angle, as needed.
