31
Chapter 3 Performing a Basic Setup

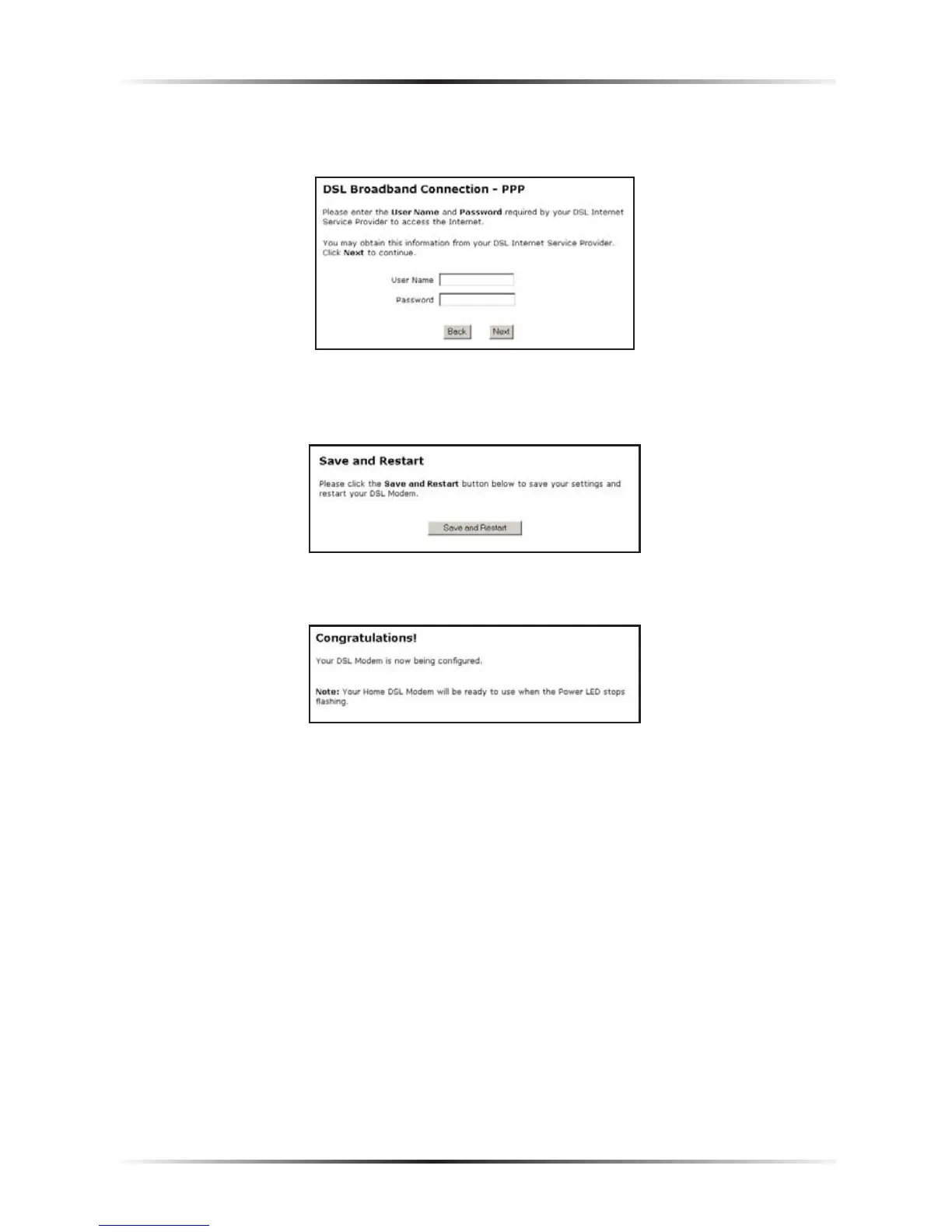

6. Enter the User Name and Password provided by the ISP in the “DSL
Broadband Connection - PPP” screen. Click Next.
7. Click Save and Restart in the “Save and Restart” screen.
8. The “Congratulations” screen appears. The Modem is successfully configured.
The Power light flashes rapidly while the Modem restarts, then glows steadily
green when fully operational. The Internet light will also glow steadily green. The
Modem is now configured and users can start surfing the Web.
If an error stating the Web browser was unable to connect to the Internet appears,
check the configuration settings. Ensure all the information required by the ISP is
entered correctly.
