Power LED e Power LED, located on the front of the Receiver, is
used to display the state of the Receiver’s power. If unlit, the unit is o.
If lit, the unit is on.
USB Port e USB port, located on the front of the Receiver, is used to
connect a USB stick drive to the Receiver when a rmware update is
available. See “Updating MyWirelessTV’s Firmware” for more details. It
is also used for the USB Backchannel feature.

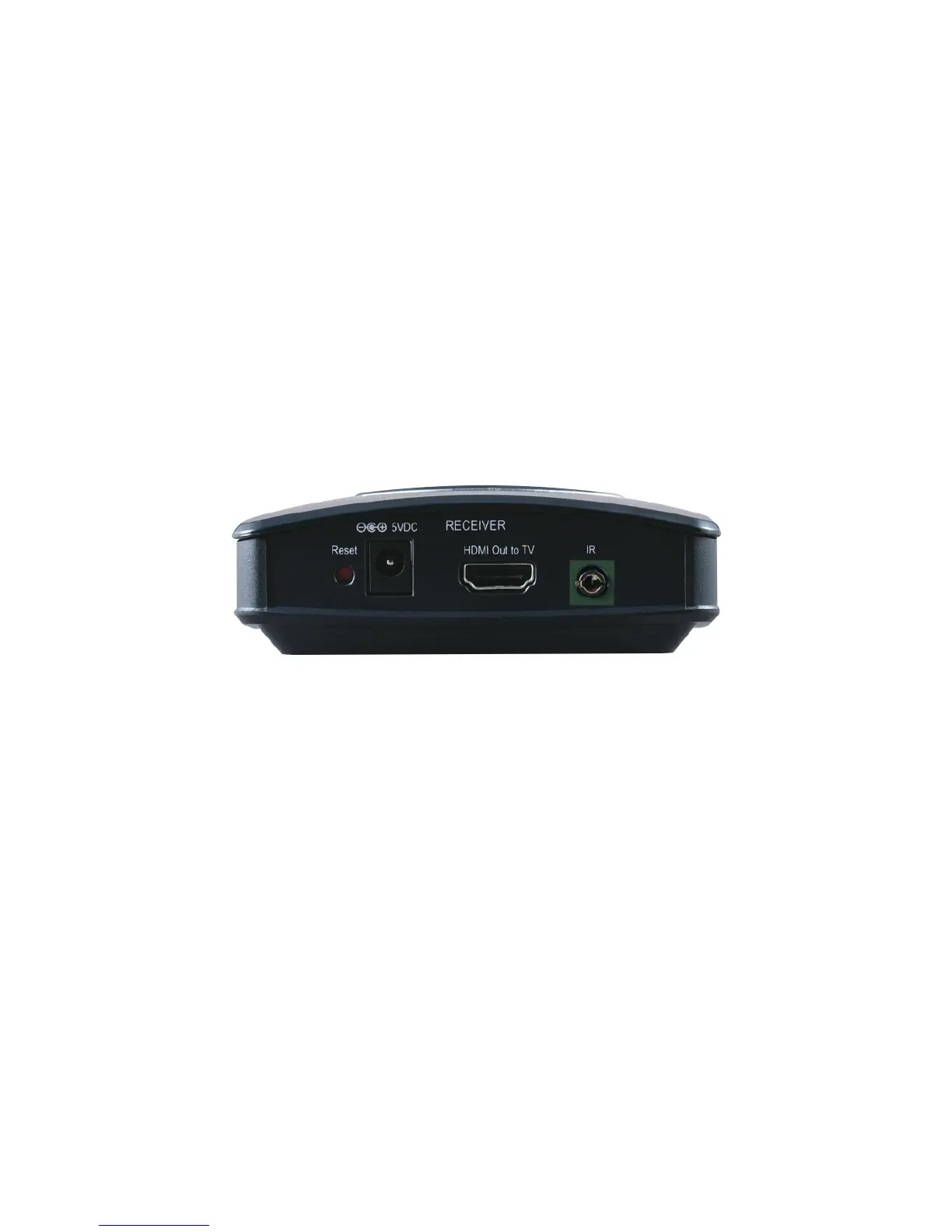

Receiver Rear Panel
Reset Button e Reset button, located on the back of the Receiver, is
used to reset the Receiver to factory default settings.
Power Port e Power port, located on the back of the Receiver, is
used to connect the Power cord to the Receiver.
HDMI Out to TV Port is port, located on the back of the Receiver, is
used, via an HDMI cable, to connect the Receiver to an HDMI-ready
display, such as a high-denition TV.
IR Port is port, located on the back of the Receiver, is used to
connect the IR Receiver cable, used to extend the range of the source
device’s remote control (in conjunction with the IR Blaster cable
connected to the Transmitter).
MyWirelessTV User Manual
10
