Installing the Extender
ere are two parts to installing an Extender: syncing the Wi-Fi settings,
and placing and connecting the Extender.
Syncing Wi-Fi
To sync the Extender with the gateway/modem’s Wi-Fi settings:
1. Place the Extender next to the gateway/modem.
2. Plug the Extender’s power adapter into the Power port of the
Extender, and the other end into an electrical wall outlet.

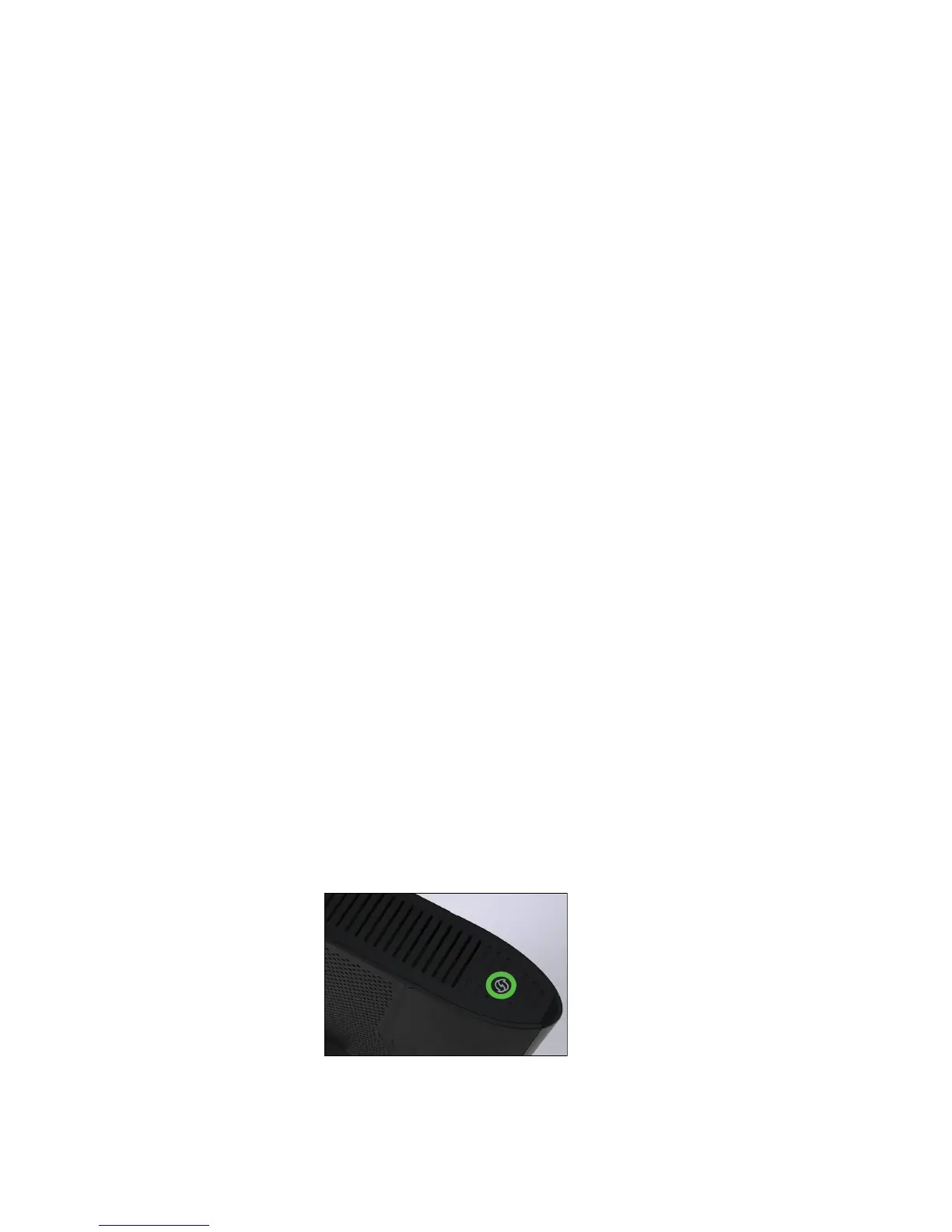

3. Wait until the WPS button on the Extender is glowing green.
4. Press the WPS button on the Extender for ten seconds.
5. Press the WPS button on the gateway/modem for 2-3 seconds.
6. Make sure the WPS button on the Extender is glowing green. If the
WPS button glows red, try syncing the Wi-Fi settings again. e
Extender can also be manually congured to connect with the
gateway/modem’s wireless network (see “Wireless Setup” on !
page 14).
