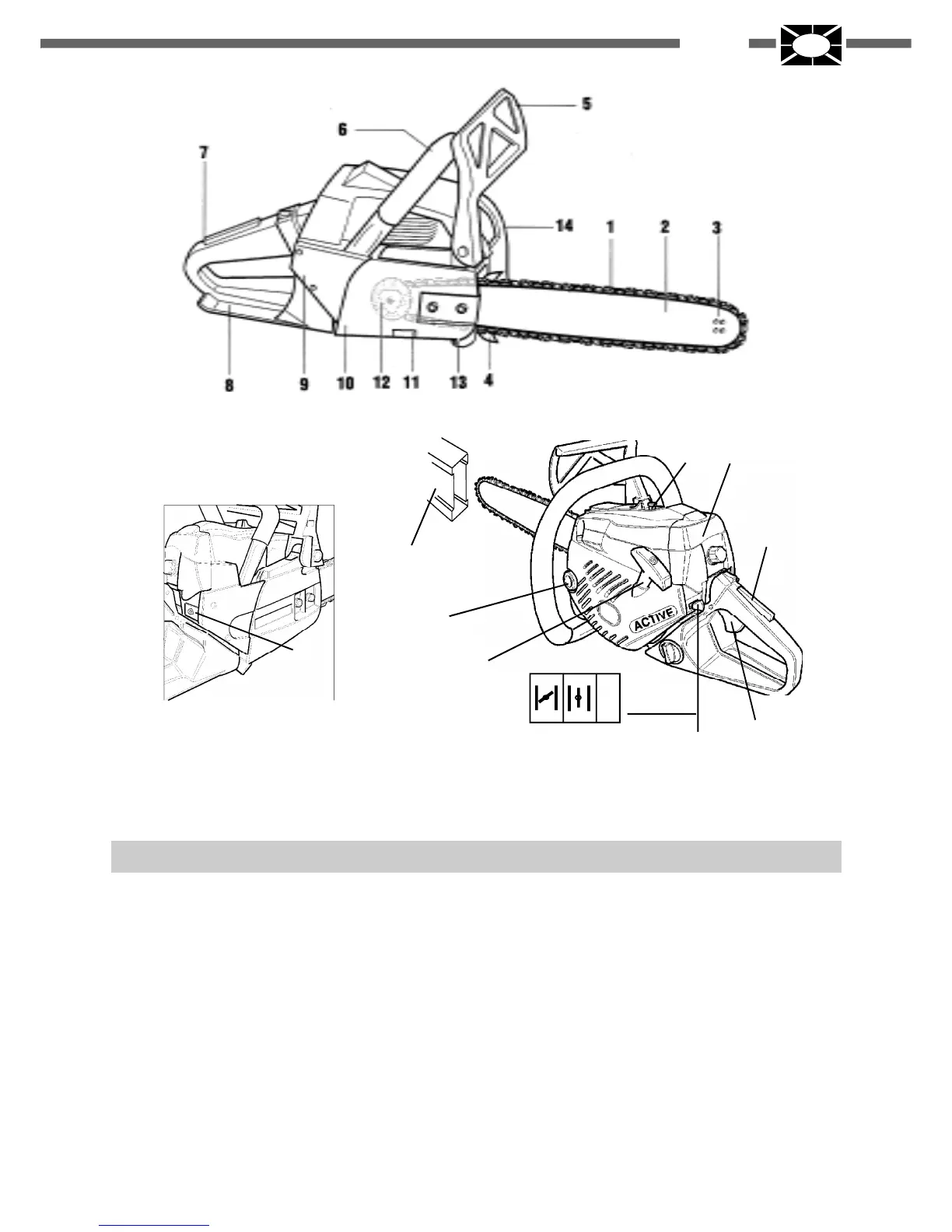

CHAIN SAW COMPONENTS (fig 1.)
15
. Chain guard
16
. Oil tank cap
17
. Starter grip
18.
Fuel tank cap
19.
Ignition switch and STARTER
A = STARTER position
B = ENGINE RUNNING position
C = STOP position
20.
Throttle lever
21.
Safety lever
22.
Air filter cover
23.
Primer (air purge)
24.
Decompression valve (56.56-62-62)
