12 13

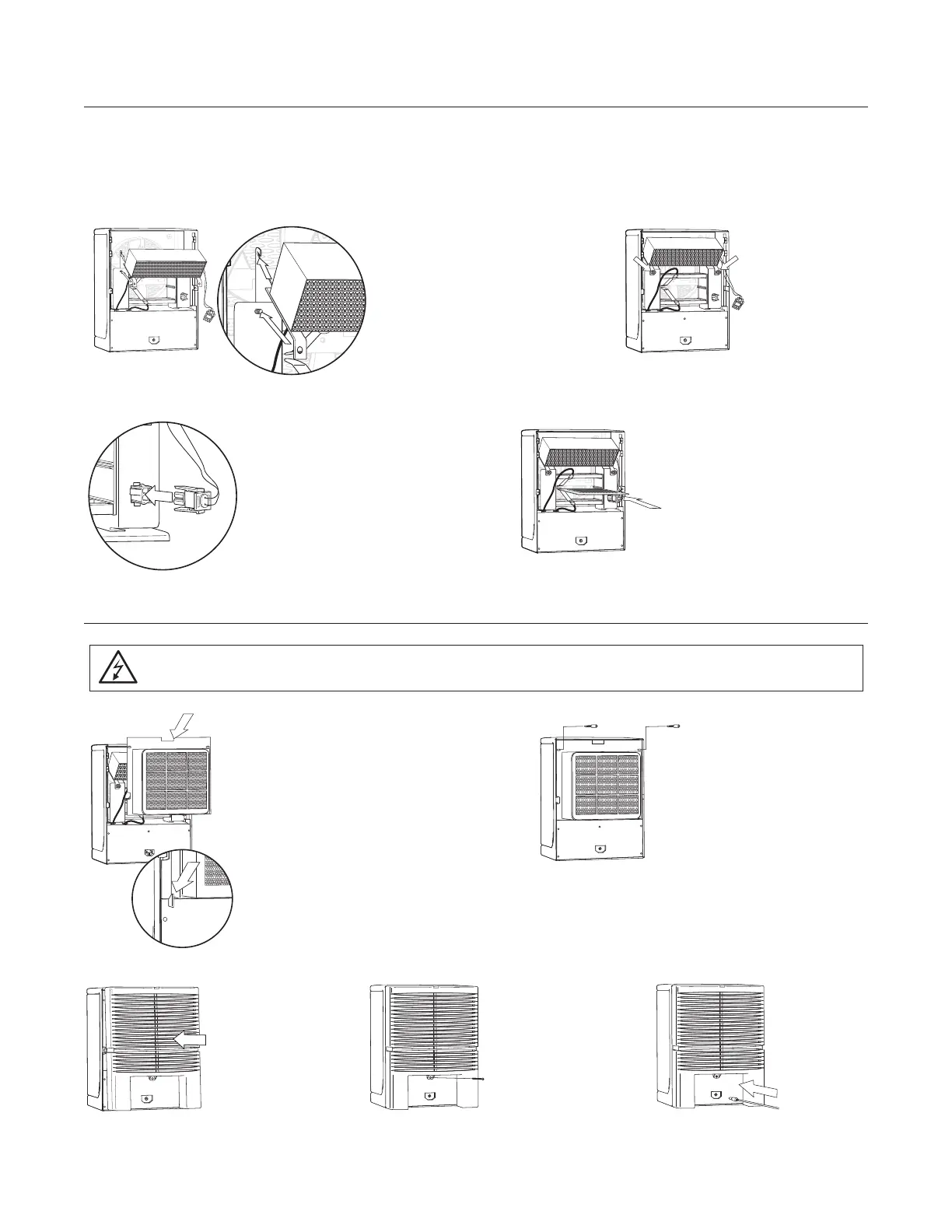

INSTALLING THE PURIFIER PLATE & ACTIVEPURE® (RCI) CELL
INSTALLING THE FILTER ASSEMBLY
When installing the purification plate, be sure that the metal tabs are making contact with the screen on each side of
the plate.
2. Replace the two (2)
thumbscrews and
tighten.
1. Slide the ActivePure® (RCI) Cell up
and into the unit. Be sure the back lip
of the ActivePure® (RCI) Cell engages
the two slotted protrusions at the
rear of the plate cage, and that the
angle brackets and studs are correctly
aligned.
4. Gently insert the purifier
plate between the guides
(inside the cage) until it
stops.
3. Insert the ActivePure® (RCI) Cell
connector into the plug on the plate
cage. Press the connector firmly until
the two tabs lock into place.
1. Replace the Filter
Assembly, inserting
the bottom of the
Filter Assembly first.
For disassembly instructions, see page 11.
WARNING:
Do not operate AP3000 without the Filter Assembly and back cover properly installed.
NOTE: The bottom of the Filter Assembly
is held into place by two alignment
guides (see insert).
5. Reinstall the
power cord.
2. Secure the top of the Filter
Assembly by replacing the
two (2) Filter Assembly
holder thumbscrews.
4. Replace the back
cover screw.
3. Replace the back
cover by snapping
into place.
To Next Page
