ActronAir ACM-1 - Wiring Diagram

19
ActronConnect Installation & Commissioning Guide - Website
Doc. No.9590-1001 Version No.3.0 150901C

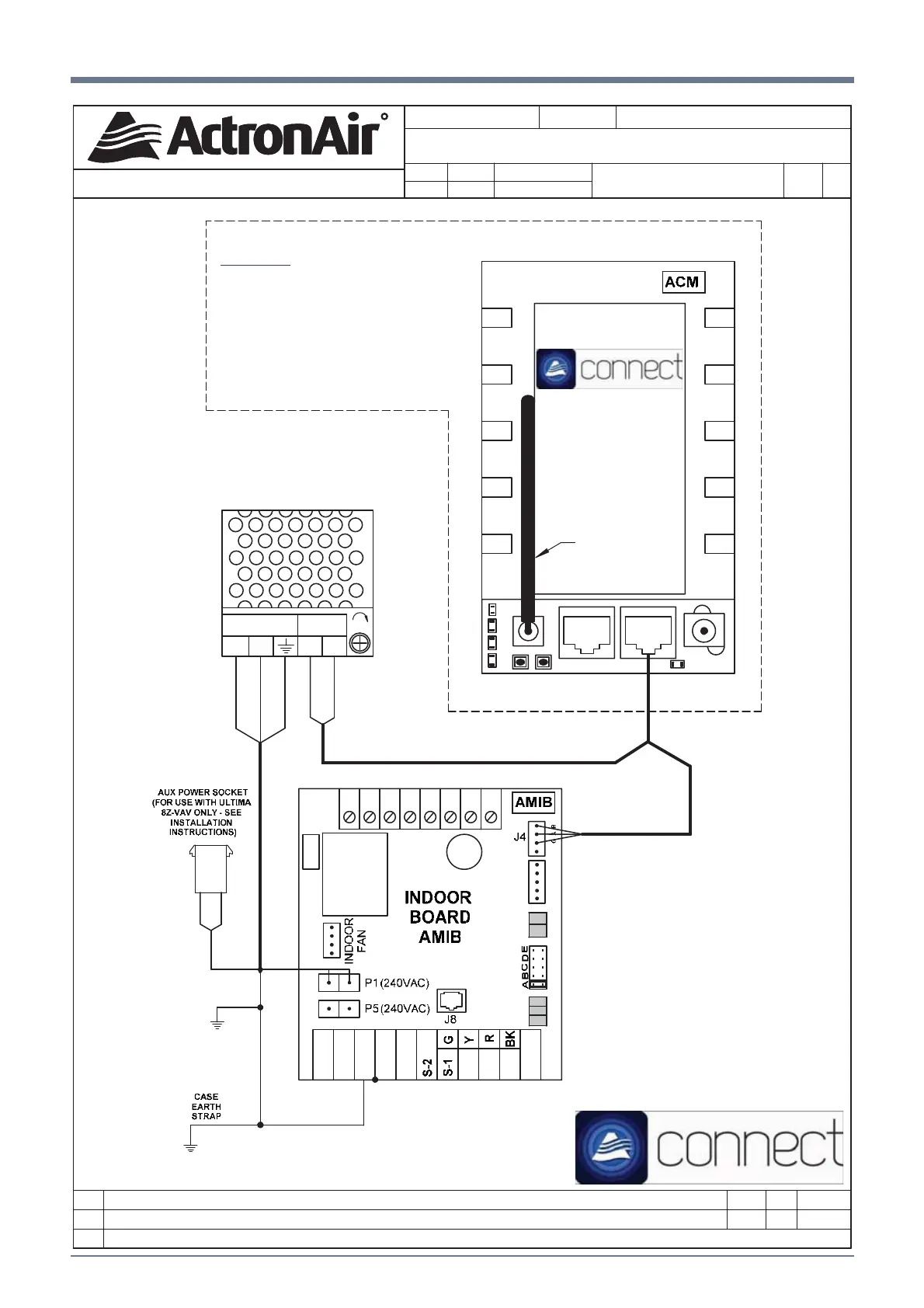

WIRING DIAGRAM
R
This drawing remains the intellectual property of Actron Engineering Pty Ltd.
Reproduction, modification and/or distribution are prohibited without written consent.
Revision
Description:
A5
Size:
Base
Model No:
Variation:
Variation Code:
Drawing No:
Drawn:
Date:
Approved:
Date:
Rev.
Description
Date
By
PCR
ORIGINAL
A
SCRN COM PWR KEY COM DATA EARTH NEUT ACT
COIL IN
SENSOR
EC CONTROL
COIL OUT
SENSOR
EXV
+V
-V
N
A
AC IN
DC OUT
ADJ
ACM POWER SUPPLY
(240VAC - 12VDC 1.3A)
IMPORTANT:
DO NOT MOUNT ACM DIRECTLY
ON INDOOR UNIT
- FOR OPTIMUM PERFORMANCE OF
WIFI SIGNAL MOUNT MINUMUM OF
1 METRE AWAY & NOT ABOVE
EVAPORATOR
- MOUNT MINIMUM 1 METRE BELOW ROOF
ACTRON
CONNECT
MODULE
(ACM)
E2
RST
MODE
ETH AC
PWR
P1
BROWN
BLUE
GREEN / YELLOW
BRN / WHITE (GREEN)
BROWN
BROWN
BLUE
ANTENNA
3G
LPW WIFI ETH
B
WD0904
SRG/V/M
14-07-2013
MJH
MJH
20-07-2013
M-SERIES INDOOR BOARD WITH ACTRON CONNECT
ACM MODULE & AUX POWER SUPPLY
ACTRON CONNECT
B
MINOR NOTE REVISIONS
31-10-13
MJH
N/A
IMPORTANT :
DO NOT MOUNT ACM DIRECTLY ON INDOOR
UNIT.
- FOR OPTIMUM PERFORMANCE OF Wi-Fi
SIGNAL MOUNT 1 METRE AWAY (OR GREATER)
AND NOT ABOVE THE INDOOR UNIT.
- MOUNT MINIMUM 0.5 METRE BELOW ROOF
LINE.
