Installation and Commissioning Guide - Split Ducted ESP Plus/Ultima Indoor Unit
Doc. No.0525-078 Ver. 2 190925
22
Installation and Commissioning Guide
Split Ducted ESP Indoor Unit

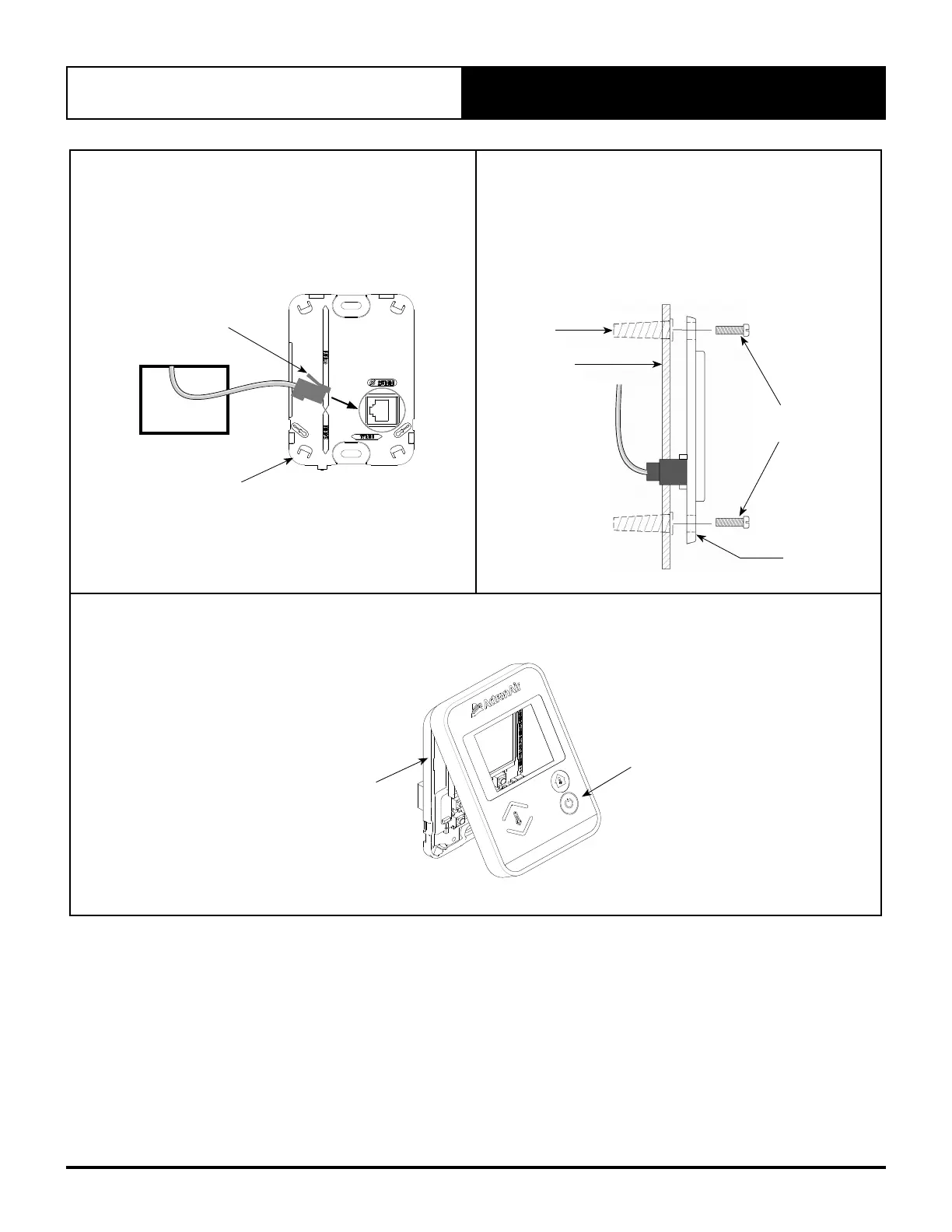

3. Connect the RJ45 plug to Zone Control.
• Feed the zone cable through the wall opening, make sure
not to damage the barb.
• Protect the RJ45 connector barb by using tape.
BARB
WALL OPENING
ZONE
CONTROLLER
4. Mount back cover to the wall using the provided mounting
screws.
• Mount the back cover to the wall with screws via screw holes.
• It is recommended to use Wall Mates to secure mounting
screws tightly against the wall.
• Ensure the sensor is aligned and leveled on the wall before
tightening the screws.
WALL
MATE
MOUNTING
SCREWS
CONTROLLER
BASE
WALL
5. Attach the front cover, as shown in the diagram below
• On completion of the mounting installation, check that the Controller is aligned and leveled on the wall.
BACK COVER
(Mounted on the wall)
COVER PLATE
