Installation and Commissioning Guide
Split Ducted ESP Indoor Unit
Installation and Commissioning Guide - Split Ducted ESP Plus/Ultima Indoor Unit
Doc. No.0525-078 Ver. 2 190925
10.03. Remote Zone Sensor LM-RS-2 for ESP Plus and Zone Sensor LM-ZS-2 for ESP
Ultima
IMPORTANT NOTES
• Do not locate sensor on external walls, directly below the supply air grille or near other additional heat load sources, as
these locations may alter sensor readings.
• Use of 8 Zone Sensors on the ESP Ultima System is not allowed.

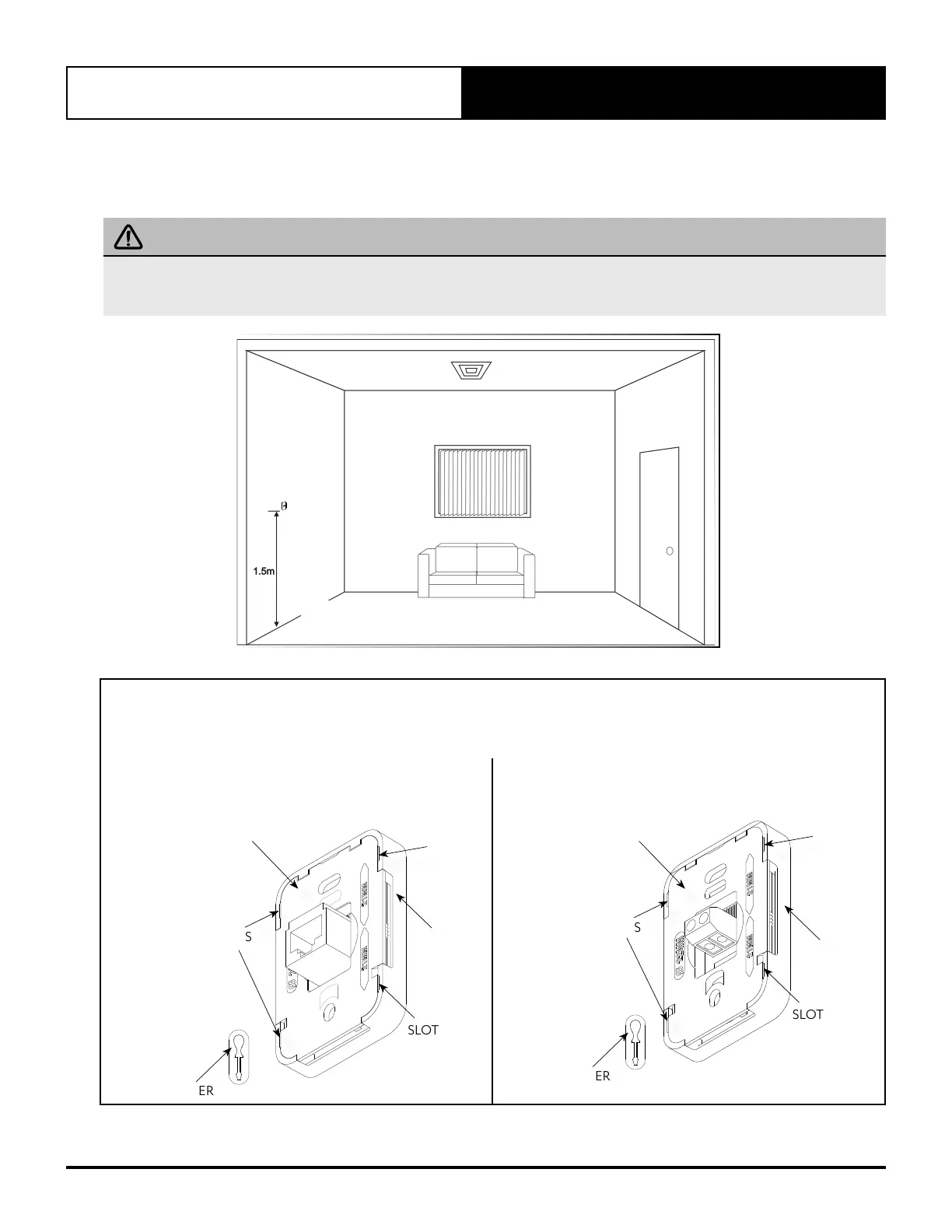

Install Sensor at approximately
1.5m above the floor.
1. Remove cover plate as shown below
• Use small flat blade screwdriver to fit into the slots in order to avoid damaging the zone sensor.
• Insert and gently twist screwdriver into the slot at the sides of the sensor. Do this procedure alternately between the two
slots until the cover plate separates from the sensor base.
Zone Sensor (LM-ZC-2)
SCREWDRIVER
SLOT
SLOT
COVER
PLATE
REMOTE
SENSOR BASE
SLOTS
Remote Sensor (LM-RS-2)
SCREWDRIVER
SLOT
SLOT
SLOTS
COVER
PLATE
REMOTE
SENSOR BASE
