Installation and Commissioning Guide - Split Ducted ESP Plus/Ultima Indoor Unit
Doc. No.0525-078 Ver. 2 190925
24
Installation and Commissioning Guide
Split Ducted ESP Indoor Unit

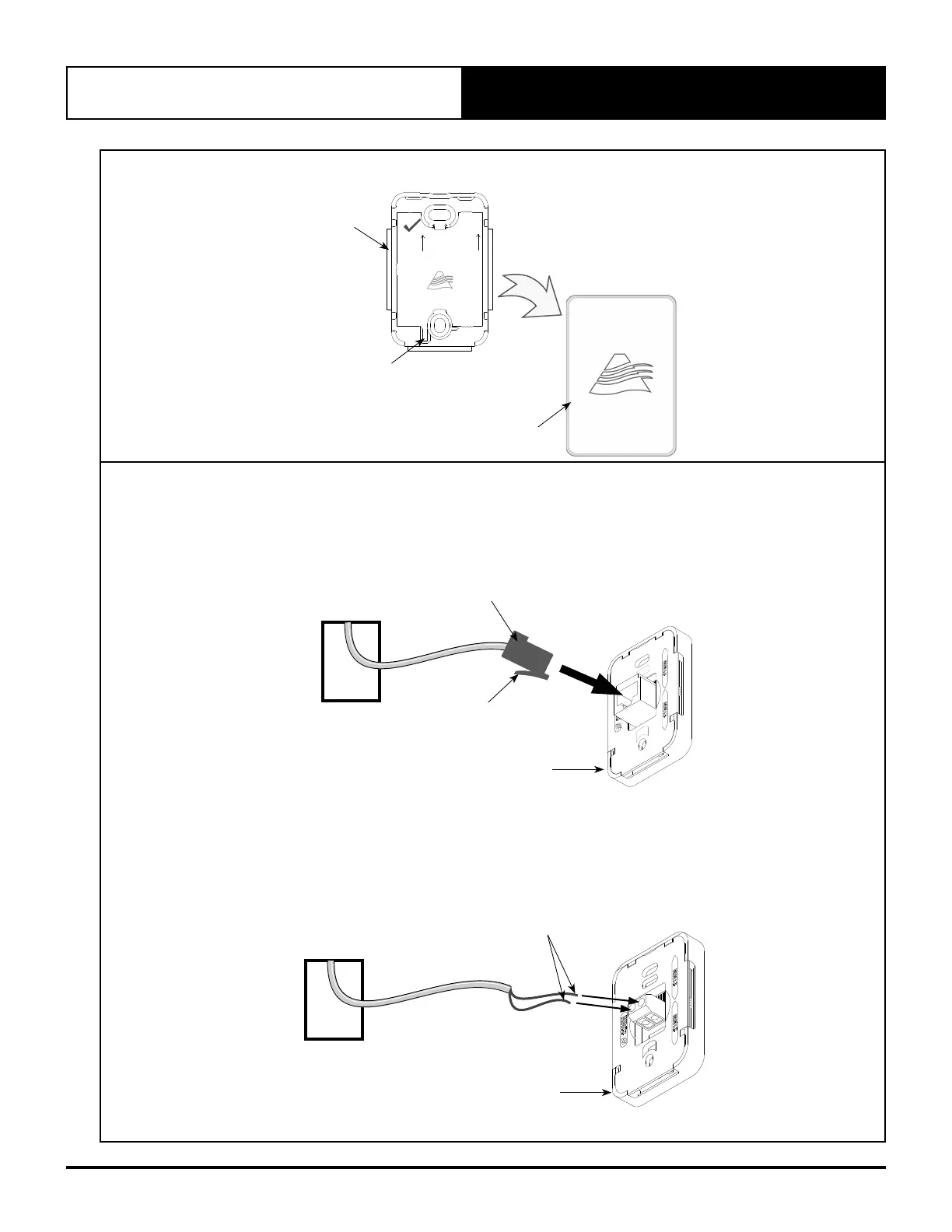

2. Detach cover plate carefully from Zone / Remote Sensor base as shown below
SENSOR
SENSOR
BASE
THIS WAY UP
Actron Controls
COVER
PLATE
3. Connect cable / plug to Sensor.
Zone Sensor (LM-ZS-2)
• Feed the sensor cable through the wall opening, make sure not to damage the barb.
• Protect the RJ45 connector barb by using tape.
WALL OPENING
BARB
RJ45
CONNECTOR
ZONE SENSOR
Remote Sensor (LM-RS-2)
• Feed the sensor cable through the wall opening.
• Strip the cable to expose the wires.
• Connect the wires to the sensor terminals as per wiring diagram on Section 13.
WALL OPENING
REMOTE SENSOR
Strip the cable to expose the wires
To Next Page
