ActronAir ESP Plus SRV151E - 4 Parts Specifications; ESP Plus; ESP Ultima; Optional Accessories

Installation and Commissioning Guide - Split Ducted ESP Plus/Ultima Indoor Unit
Doc. No.0525-078 Ver. 2 190925
6
Installation and Commissioning Guide
Split Ducted ESP Indoor Unit

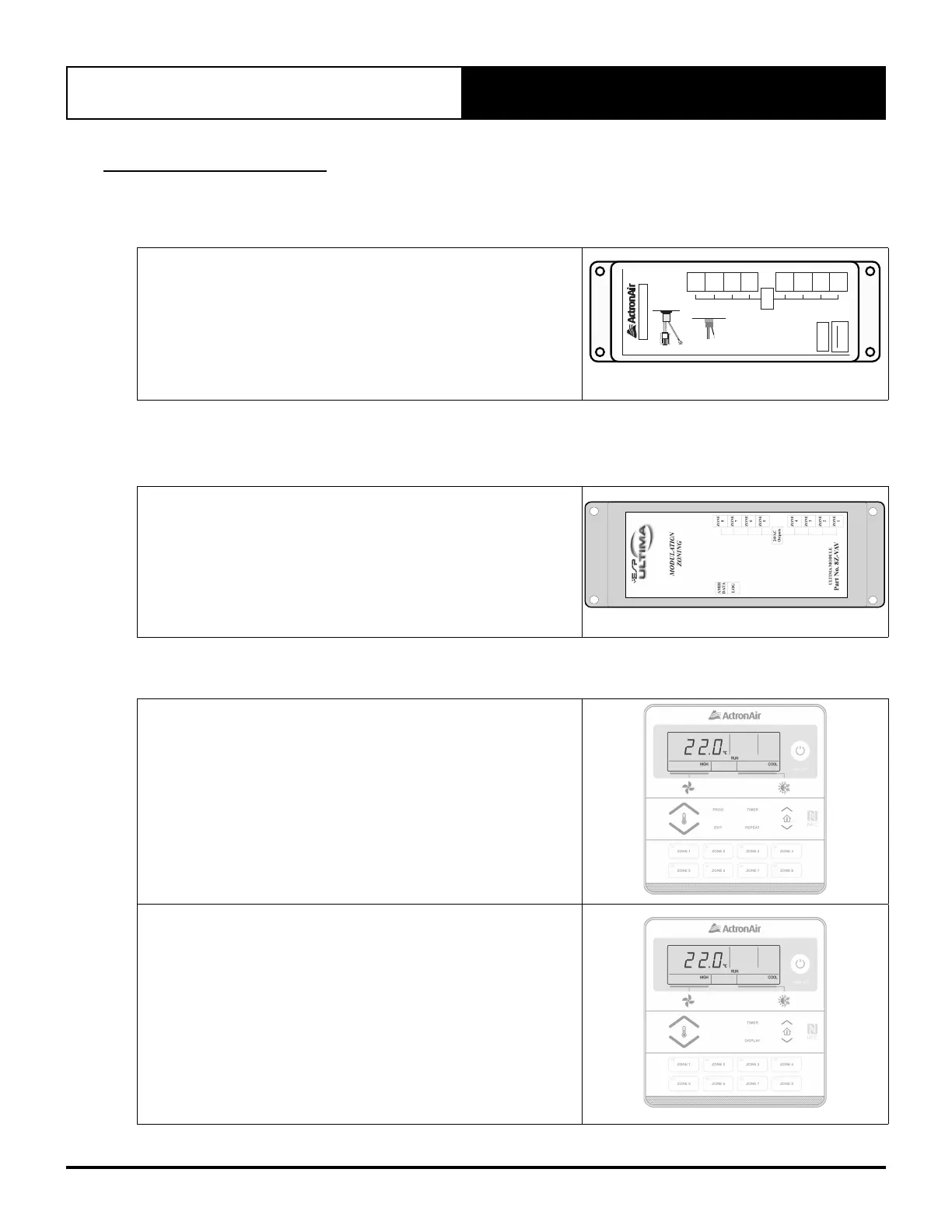

04. Parts Specifications
04.01. ESP Plus
Standard Parts Supplied With ESP Plus Fan Coil
8-ZONE 24V MODULE (Factory Included)
Part Number : 8Z-24V
Voltage : 240V (supply) and 24VAC (Zones Output)
Connections : RJ45 Socket
Dimensions - mm : 230 x 92 x 55 (W x H x D)
240VMains Cableto AMIB Indoor Unit
24 VAC Outputs
ActronControls#54002-5
Labelsize185mmx70mm
13-6-19
ZONE
8
ZONE
4
ZONE
7
ZONE
3
ZONE
6
ZONE
2
ZONE
5
ZONE
1
Data Cable to AMIB Indoor Unit
DATA COM
White
Black
SCRN Blue
8Z-24V
M-SERIES
8ZONEMODULE
PartNo.2020-170
WARNING
DAMAGEDUE TO
INCORRECT WIRING
VOIDS WARRANTY
ON/OFF ZONING
INTERNAL
2A FUSE
N
A
E
04.02. ESP Ultima
Standard Parts Supplied With Ultima Fan Coil
Ultima Module (Factory Included)
Part Number : 8Z-VAV
Voltage : 240V (supply) and 24VAC (Zones Output)
Connections : RJ45 Socket
Dimensions - mm : 230 x 92 x 55 (W x H x D)
04.03. Optional Accessories
LM7-2 - Series Master Wall Control
(Sold Separately)
Part Number : LM7-2W (White)
LM7-2G (Grey)
Dimensions - mm : 130 x 130 x 14.5 (W x H x D)
NOTE:
LM7-2 Master Wall Control shown for illustration purposes only.
LM24-2 Secondary Wall Control
(Sold Separately)
Part Number : LM24-2W (White)
LM24-2G (Grey)
Dimensions - mm : 130 x 130 x 14.5 (W x H x D)
NOTE:
LM24-2 is also available for optional dual Wall Control operation
(Mimic Logic).
