Installation and Commissioning Guide
Split Ducted ESP Indoor Unit
Installation and Commissioning Guide - Split Ducted ESP Plus/Ultima Indoor Unit
Doc. No.0525-078 Ver. 2 190925

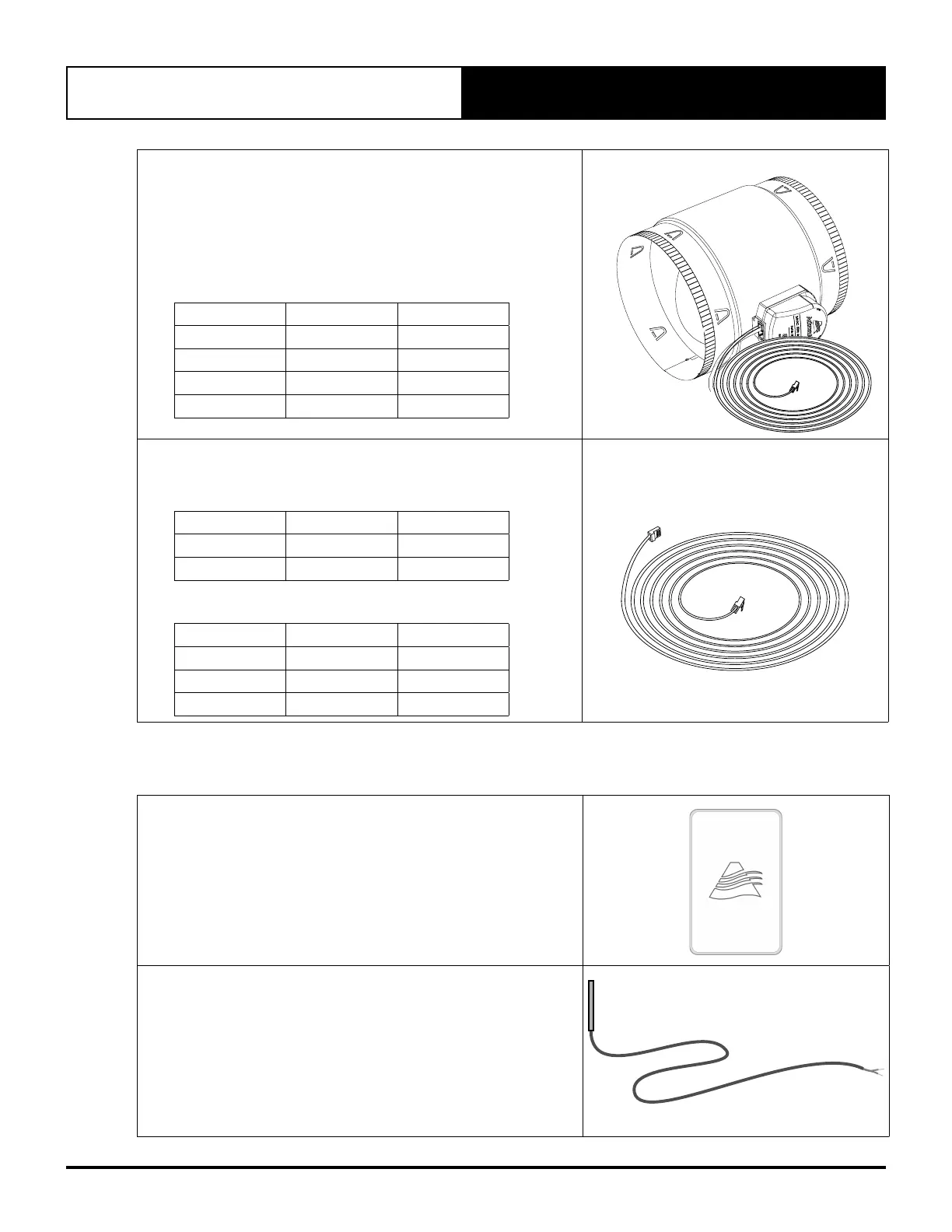

Integrated Zone Barrels (Sold separately)
Voltage : 24VAC
Torque : 3Nm
Cable Length : 7 meters (Included)
Part No. 4070-020
Part Number Diameter Length
ZB-10-250 10” (250 mm) 290 mm
ZB-12-300 12” (300 mm) 290 mm
ZB-14-350 14” (350 mm) 290 mm
ZB-16-400 16” (400 mm) 290 mm
Cat5e Zone Cable (Sold Separately)
For ESP Plus
Part Number Length Connector
4070-020 7 metres RJ45
4070-021 20 metres RJ45
For ESP Ultima
Part Number Length Connector
4070-013 7 metres RJ45
4070-014 20 metres RJ45
4070-018 12 metres RJ45
04.03.01. For ESP Plus
Wall Sensor (Sold Separately)
Part Number : LM-RS-2W (White)
LM-RS-2G (Grey)
Connections : Screw-in Terminal
Dimensions - mm : 41 x 63 x 9.5 (W x H x D)
Duct Bead Sensor (Sold Separately)
Part Number : AERSS
Voltage : 24VAC
Length : 2 metres (including cable)
Connections : Screw-in Type
