Operation Manual LM-ZC-2 Wall Controller
Document No. 0525-082 Ver. 1 190918
Operation Manual
Zone Controller
Page 7
Turning Off
1. Press the Button to turn off the zone. Alternatively, press the designated zone button on the Master Wall
Controller. When the designated zone LED in the Master Wall Controller turns Off, the zone is Off.
NOTES
• In Zone Control ESP Auto mode, the controller will adjust the position of zone damper automatically in order to meet
the desired temperature.
• Heating mode will be displayed when the zone starts to heat the room.
• Cooling mode will be displayed when the zone starts to cool the room.

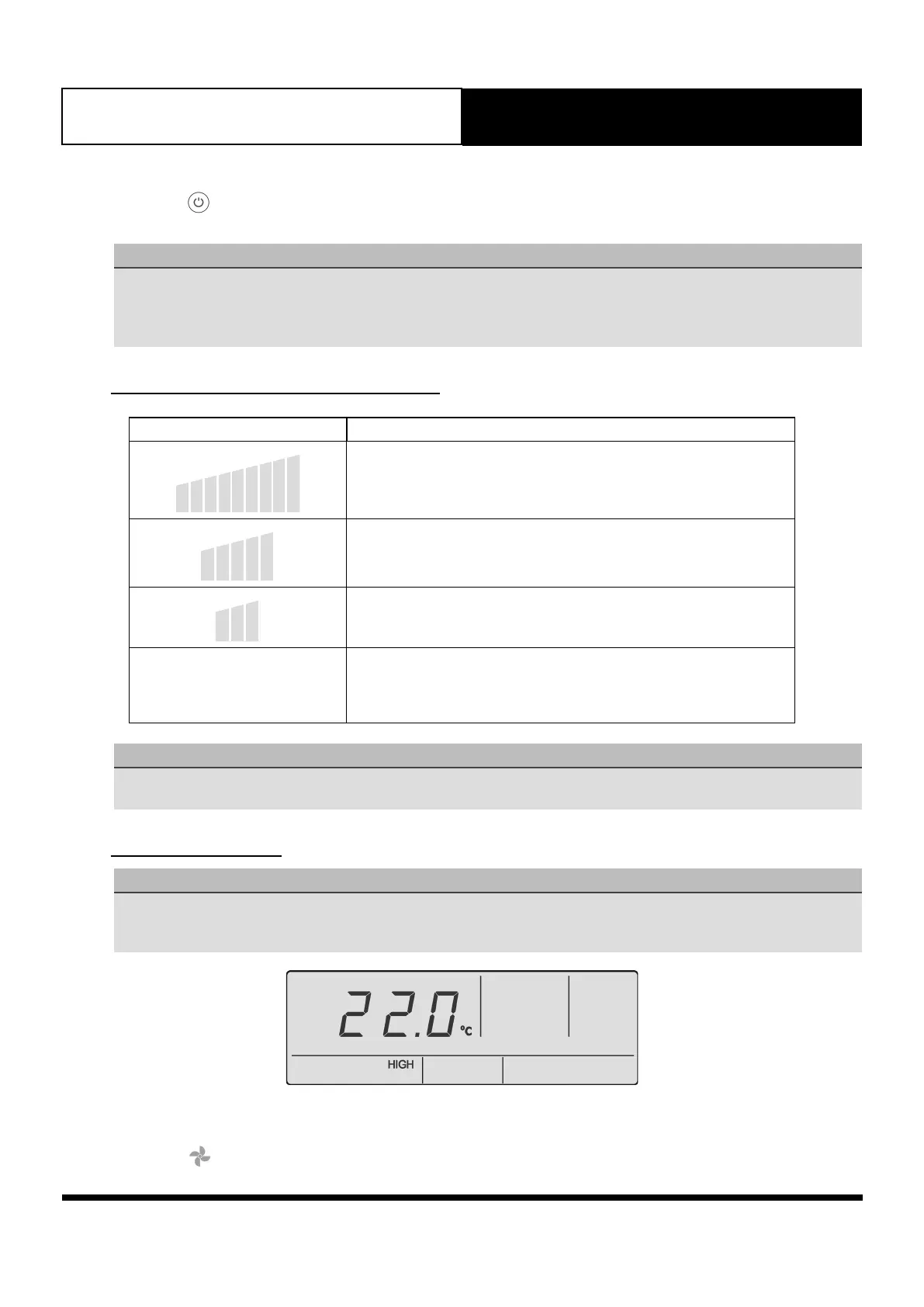

09. Zone Damper Blade Indicator
Display Status
Fully Open Damper Blade
Allows full airflow through in order to meet your required conditions.
Partially Closed Damper Blade
Regulating airflow and temperature to meet set conditions.
Partially Open Damper Blade
Regulating airflow and temperature to meet set conditions.
No Damper Blade Indicator
• Room is satisfied with temperature.
• Zone is turned Off.
• Zone is waiting on Heat/ Cool mode change.
NOTE
When in ESP Auto, damper blade indicator will automatically adjust itself to regulate the correct amount of airflow (HEAT or
COOL) in order to maintain the desired setpoint temperature.
10. Fan Only Mode
NOTES
• This mode is commonly used to circulate airflow without Cooling / Heating throughout your home.
• Quite often used on mild days to circulate fresh air through the home. Simply open a few windows and let the Fan Only
Mode circulate fresh air through your home.
Wall Controller
1. Make sure the air conditioner is Off.
2. Press the Button on the Master Wall Controller. The current fan speed setting will appear and the display
backlight will turn On (if it is off).
To Next Page
