Installation and Commissioning Guide - Standard Commercial Split Ducted Commercial Outdoor Unit
Doc. No.0525-056 Ver. 7 220308
Installation and Commissioning Guide
Split Ducted Outdoor Units
10

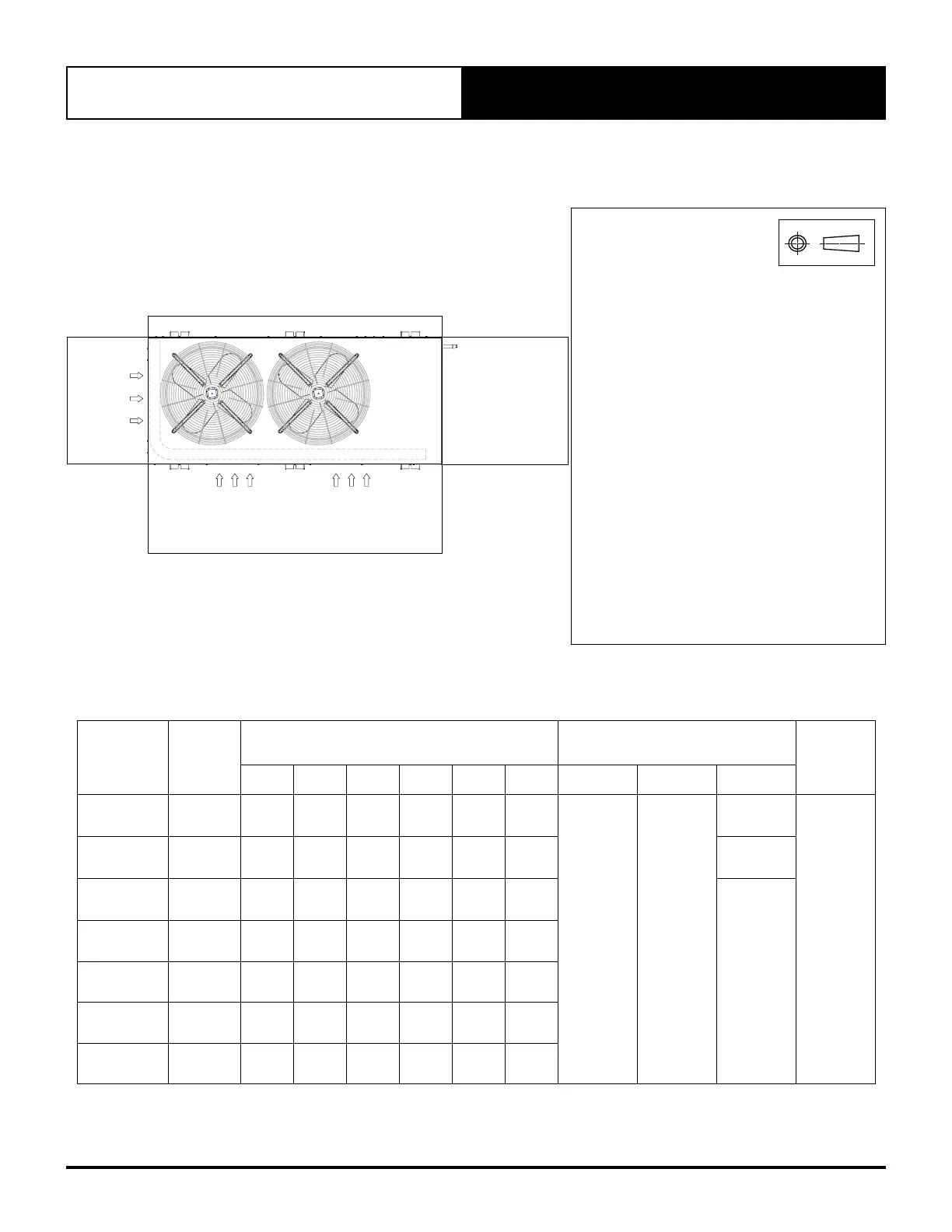

07.02. Minimum Service Access Area, Airflow Clearances and Weights
Note: SCA 290C model shown for illustration purposes only.
NOTES:
1. Do not scale drawing. All
dimensions are in mm
unless specified. Refer to
corresponding unit dimensional drawing for
mounting hole details.
2. Ensure that Service Access Areas and Spaces
for Airflow Clearances are met. This is based on
the condition that the spaces around the units
are free from any obstructions and a walkway
passage of 1000mm between the units or
between the unit and the outside perimeter is
available.
3. Minimum service access areas and spaces for
airflow clearances are responsibilities of the
installer, ActronAir will not be held liable for any
extra charges incurred due to lack of access and
space for airflow.
4. Under all circumstances, condenser air must not
recirculate back onto condenser coil. Keep all
clearance free of any obstructions.
5. MTG C-C DIST = Mounting Centre to Centre
Distance.
6. Use M12 bolt for feet mounting.
THIRD ANGLE
PROJECTION
OUTDOOR COIL
COMP
SIDE
SCA260-400C Gen Dim.TCW
SCA260-400C Clearances
X
SERVICE /
AIRFLOW
AND
CLEARANCE
Y
SERVICE
CLERANCE
(COMPRESSOR
AND
ELECTRICALS)
Z
SERVICE / AIRFLOW CLERANCE
F
D
C
B
E
A
NIL - TO - MINIMUM SERVICE CLEARANCE
Unit Model
Number
Unit
Weight
(kg)
Corner Weights (kg)
Service Clearance and
Airflow Allowance
Height
Clearance
A B C D E F X Y Z
CRA300T 300 23.7 29.6 90.1 33.2 1 7.8 105.6
300 800
750
1500
SCA260C 245 16.0 24.6 81.3 22.5 24.6 76.0 600
SCA290C 290 33.8 28.0 84.1 23.2 30.9 90.0
750
SCA300C 300 23.7 29.6 90.1 33.2 17.8 105.6
SCA330C 305 25.4 24.3 100.5 37.0 17.3 100.5
SCA340C 335 43.0 23.7 103.1 33.7 23.7 107.8
SCA400C 332 43.9 23.5 101.2 32.8 23.5 107.1
