Installation and Commissioning Guide
Split Ducted Outdoor Units
Installation and Commissioning Guide - Standard Commercial Split Ducted Commercial Outdoor Unit
Doc. No.0525-056 Ver. 7 220308
25
. Control Cable Length and Specification
ITEM DESCRIPTION MAXIMUM CABLE LENGTH * ^
1 to 2 Outdoor PCB to Master Controller 50 m (60 m without CZ-1)
1 to 4 Outdoor PCB to Indoor Fan (230VAC) 50 m
2 to 3 Master Controller to Remote Sensor (Max. of 2 Optional Sensors) 50 m each
Suggested Maximum Cable Length.
Long runs beside Mains cables or TV antenna cables should be avoided where possible, 2 CORE 14/0.20 (0.44mm) Shielded Data Cable must be used.
Total Cumulative length of all the aggregate cable lengths must not exceed 500 meters. Consult ActronAir
®
for longer cable length requirement.
*
^

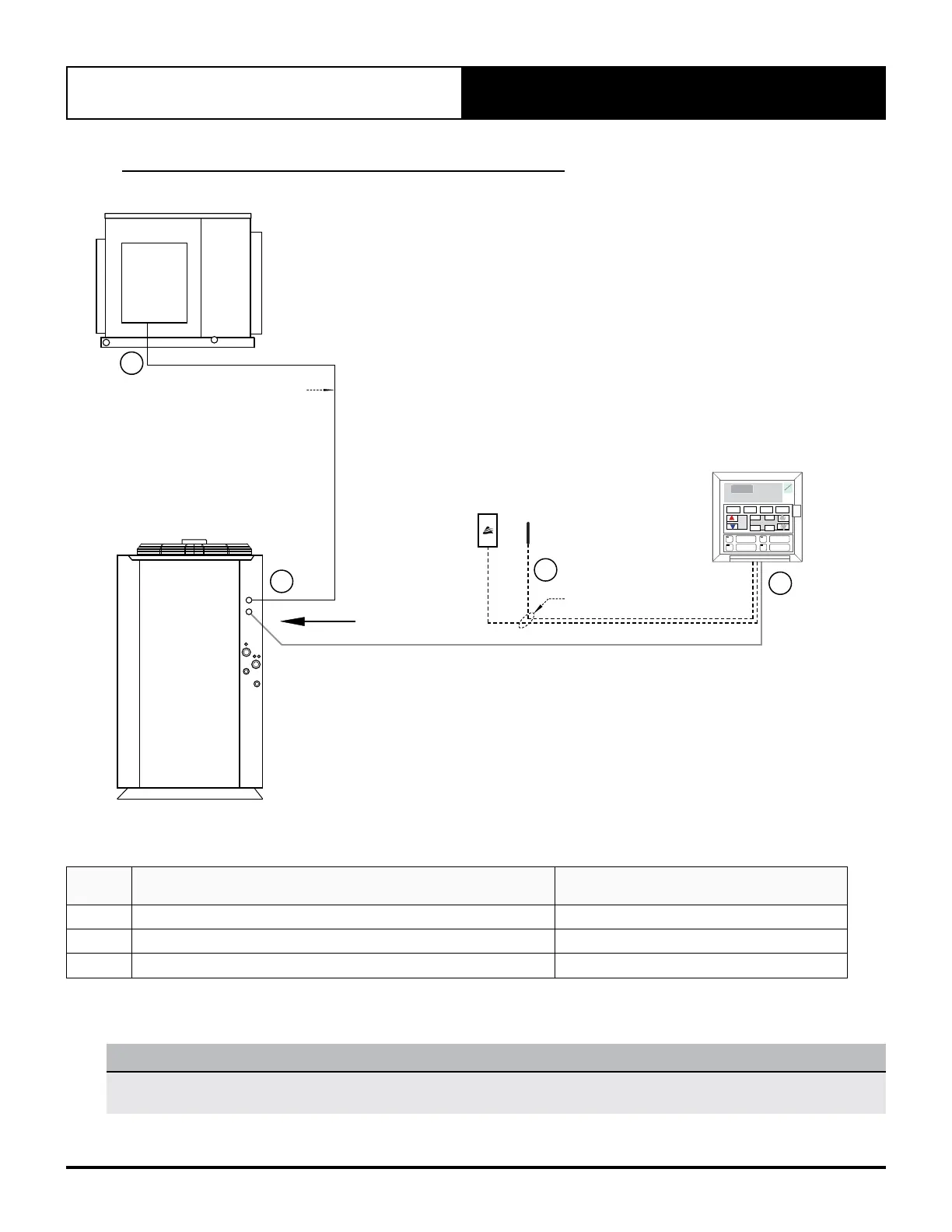

OUTDOOR UNIT
WALL CONTROLLER
C7-4
230VAC CABLES
*
2 CORE 14/0.20 (0.44mm)
Shielded Data Cable
TO OUTDOOR PCB
3
4
2
INDOOR UNIT
FAMILY
MASTER BED
RUMPUS
BEDROOM 1
1
3
2
4
FAN
CONTROL
SET
TEMP
AUTO
HEAT/COOL
TIMERDISPLAY
EXIT
CANCEL
RESTORE
REPEAT
TIME CLOCK
PROGRAM
ON
OFF
CONT HIGH LOW AUTO HEAT COOL RUN STAGE ROOM
MON TUE WED THU FRI SAT SUN TIMER FILTER AH
AM
PM
SET BACK EVENT 1 2
o C TIME CLOCK ON OFF
LM-RS-2
OPTIONAL
REMOTE SENSOR
AERSS
OPTIONAL
DUCT BEAD
SENSOR
1
NOTE
Diagram shown above is a general presentation only. Refer to individual unit wiring diagram for complete wiring connection
details.
