. Unit Lifting Procedure
WARNING
WH&S regulations must be observed and will take precedence during lifting process.
Crane Lifting Method
Crane lifting method is recommended for high rise lifting.
Connect the loop ends Connect the loop ends
of slings into shackleof slings into shackle
A

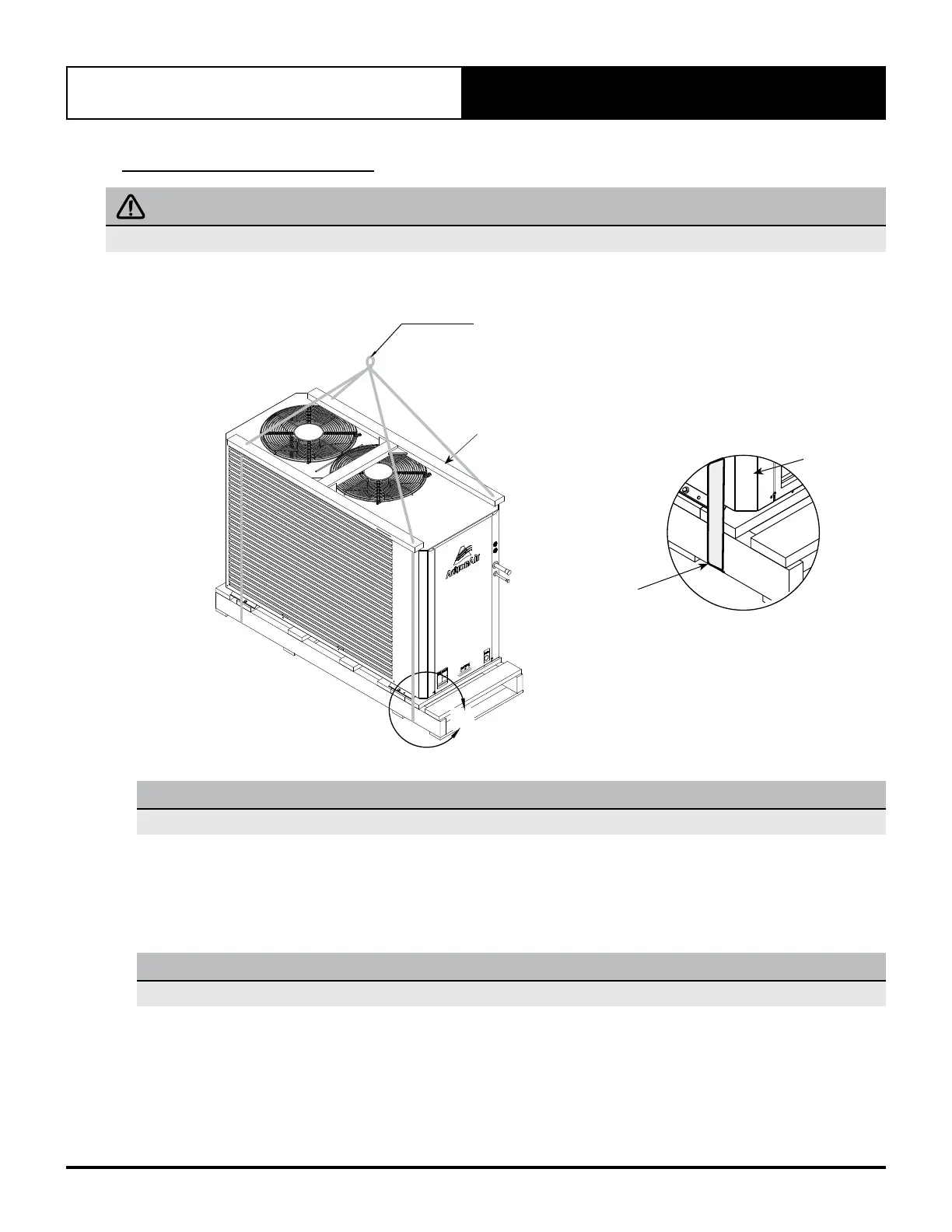

Fig. 1
SPREADER
BAR
Provide rubber pads
under spreader bar
to prevent damage
to the unit
DETAIL A
OUTDOOR
UNIT
Slip nylon slings
through the pallet
Connect the loop ends
of slings into shackle
NOTE
Undo the 6-screws (4-screws only for SCA260C) holding down the unit unto the pallet before removing the pallet
Equipment Required For Crane Lifting:
• 1 Shackle
• 2 x Nylon Slings
• Spreader bars
Refer to catalogue for unit weight before selecting shackles and slings.
NOTE
Refer to Unit Dimensions and Clearances section for unit weight before selecting shackle and slings.
Procedure:
1. Slip nylon slings through the pallet as shown in Fig. 1.
2. Use a Bow or Dee shackle to connect the slings.
3. Ensure slings are protected by rubber pads or similar if slings are draped across unit edges, corners, or air grilles .
This will prevent the unit from being damaged during lifting.
4. SPREADER BARS must be used when lifting the unit.
5. Test lift the unit to determine exact unit balance and stability before hoisting it to the installation location.
To Next Page
