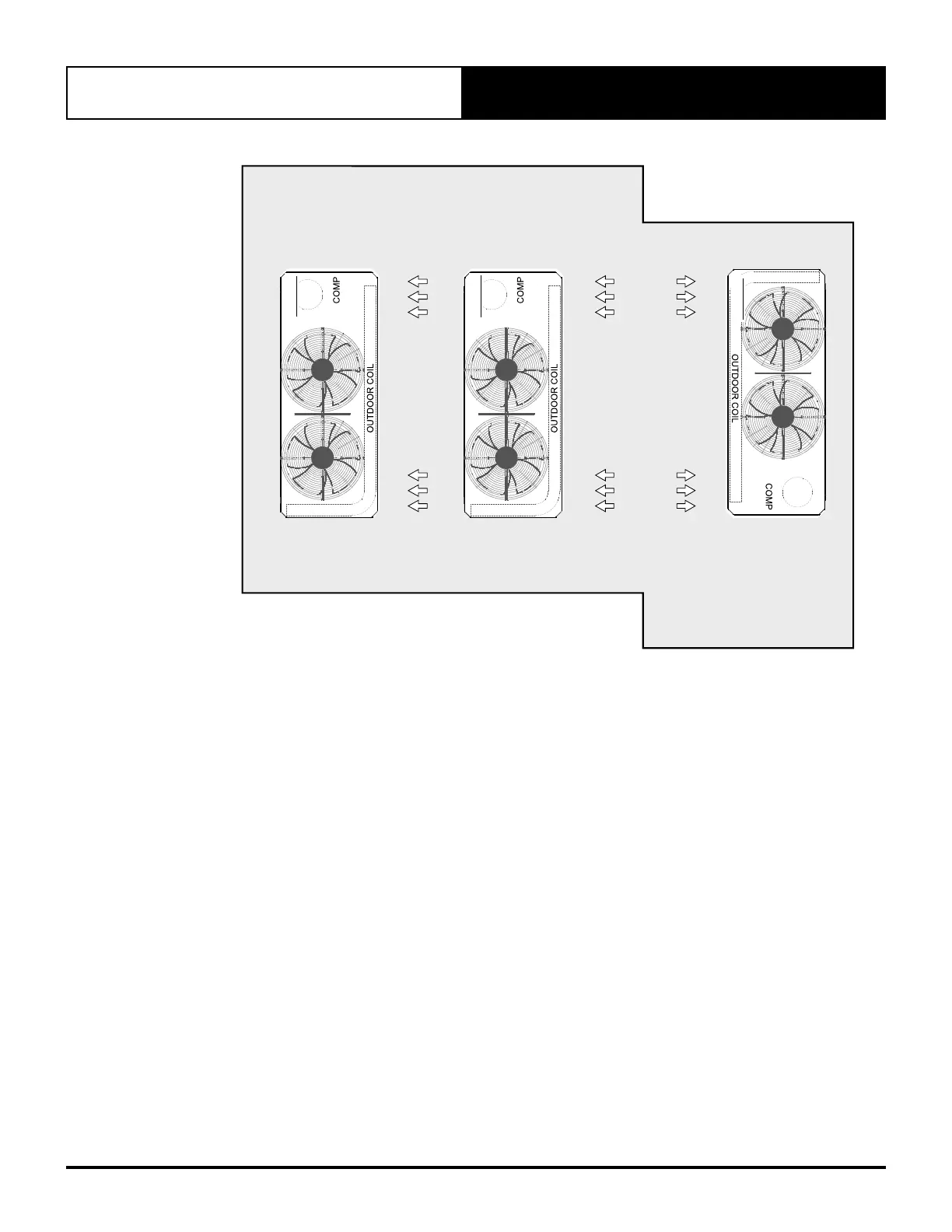

CONFIGURATION 3
UNIT 2
UNIT 3
NIL - TO - MINIMUM SERVICE CLEARANCE
NIL - TO - MINIMUM SERVICE CLEARANCE
300mm
SERVICE
CLEARANCE
800mm
SERVICE CLEARANCE
(COMPRESSOR AND ELECTRICALS)
300mm
SERVICE CLEARANCE
800mm
SERVICE
CLEARANCE
(COMPRESSOR AND
ELECTRICALS)
* 600/750 mm AIRFLOW
ALLOWANCE
and SERVICE CLEARANCE -
OUTDOOR COIL *
* 600/750 mm AIRFLOW
ALLOWANCE
and SERVICE CLEARANCE -
OUTDOOR COIL
*
* 600/750 mm AIRFLOW
ALLOWANCE
and SERVICE CLEARANCE -
OUTDOOR COIL *
UNIT 1
HEIGHT CLEARANCE
FOR ALL UNITS = 1500mm
*Clearances will vary depending on model. Higher capacity models clearance requirement must be allocated.
