ActronAir SCA260C - Unit Dimensions, Clearances and Weights; Unit Dimensions

Installation and Commissioning Guide
Split Ducted Outdoor Units
Installation and Commissioning Guide - Standard Commercial Split Ducted Commercial Outdoor Unit
Doc. No.0525-056 Ver. 7 220308
9

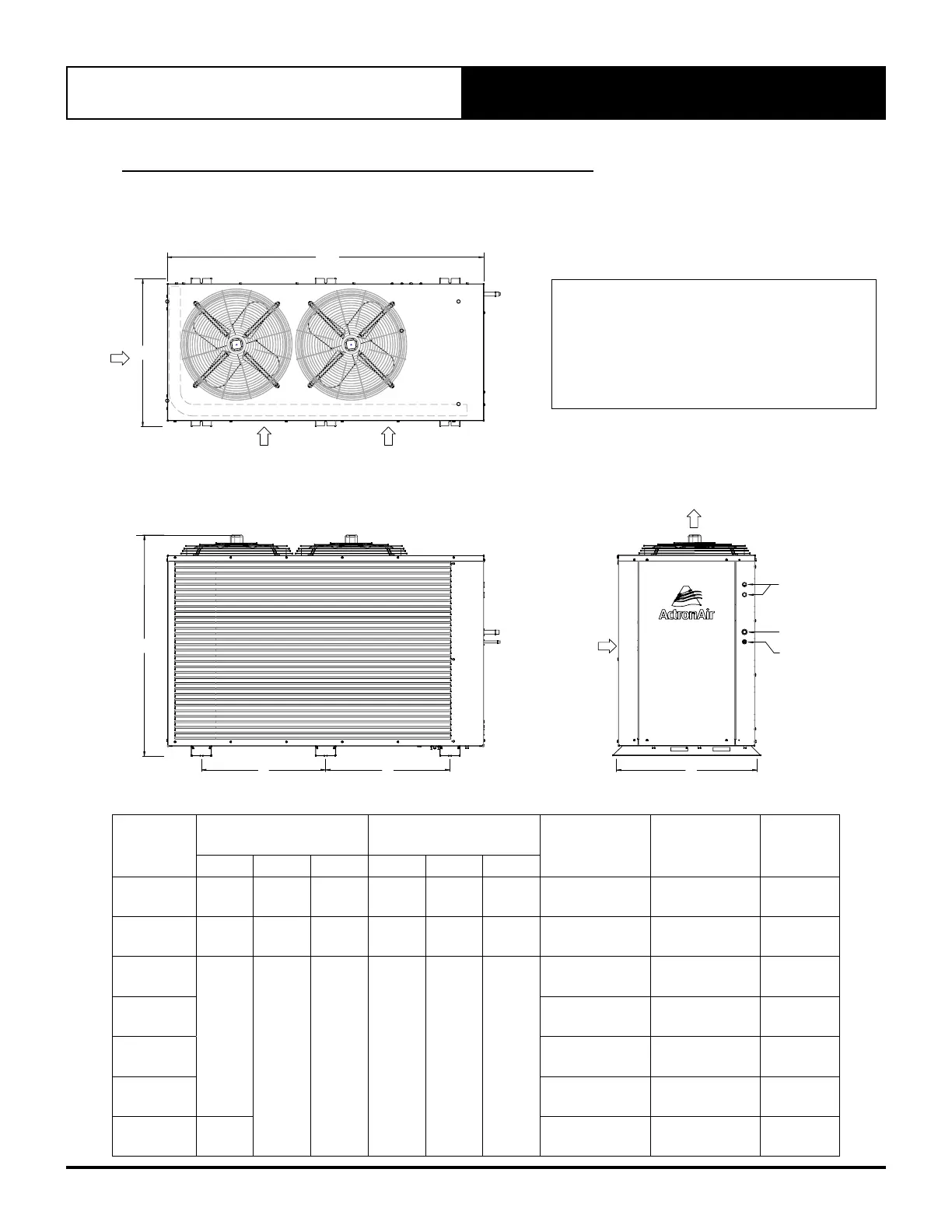

. Unit Dimensions, Clearances and Weights
07.01. Unit Dimensions
Note: SCA 290C model shown for illustration purposes only.
** DRAWING IS SUBJECT TO CHANGE WITHOUT NOTICE**
CONDENSATION POINTS ARE DESIGNED TO ENSURE ALL
CONDENSATION IS REMOVED EFFICIENTLY TO AVOID
WATER POOLING WITHIN THE CONDENSER. IF A SINGLE
CONDENSATION DRAIN POINT IS REQUIRED, ACTRONAIR
RECOMMENDS THE INSTALLATION OF A CONDENSER
TRAY. THESE ARE AVAILABLE AS AN ADDITIONAL
ACCESSORY.
H
B
A
C
OUTDOOR COIL
COMP
SIDE
OUTDOOR AIR INLET
AIR
INLET
AIR INLET
AIR OUTLET
W
ELECT. ACCESS
2 x Ø 25.4 mm (1")
GAS PIPE
LIQUID PIPE
SCA260-400C Gen Dim.TCW
SCA260-400C Gen Dim
D
TOP VIEW
SIDE VIEW
FRONT VIEW
Unit
Model
Overall Nominal
Dimensions (OA)
Mounting Distance
(Centre to Centre)
Gas
Pipe
Liquid
Pipe
No. of
Comp.
H W D A B C
CRA300T 1330 1875 875 835 7 37.5 7 37.5
2 x Ø 19.1mm
(3/4") Swaged
2 x Ø 9.5mm
(3/8") Swaged
2
SCA260C 1105 1685 685 616 673.5 673.5
Ø 28.6 mm
(1-1/8") Swaged
Ø 15.9 mm
(5/8") Swaged
1
SCA290C
1330
1875 875 835 7 37.5 7 37.5
Ø 28.6mm
(1-1/8") Swaged
Ø 15.9mm
(5/8") Swaged
1
SCA300C
2 x Ø 19.1mm
(3/4") Swaged
2 x Ø 9.5mm
(3/8") Swaged
2
SCA330C
Ø 28.6mm
(1-1/8") Swaged
Ø 15.9mm
(5/8") Swaged
1
SCA340C
2 x Ø 19.1mm
(3/4") Swaged
2 x Ø 9.5mm
(3/8") Swaged
2
SCA400C 1315
2 x Ø 22.2mm
(7/8") Swaged
2 x Ø 12.7mm
(1/2") Swaged
2
