Installation and Commissioning Guide
Split Ducted Outdoor Units
Installation and Commissioning Guide - Standard Commercial Split Ducted Commercial Outdoor Unit
Doc. No.0525-056 Ver. 7 220308
17
TABLE 1: EQUIVALENT STRAIGHT PIPE LENGTH OF ELBOW FITTINGS METRES
Pipe size Nominal
Diameter
90
o
Long Radius
Elbow
90
o
Short Radius
Elbow
45
o
Long Radius
Elbow
45
o
Short Radius
Elbow
9.52 (3/8”)
0.24 0.36 0.09 0.14
15.88 (5/8”)
0.30 0.45 0.15 0.23
19.05 (3/4”)
0.40 0.60 0.18 0.27
22.22 (7/8”)
0.46 0.69 0.21 0.32
25.4 (1”)
0.52 0.78 0.24 0.36
28.58 (1-1/8”)
0.55 0.83 0.27 0.41
Selected field pipe sizes must match the recommended sizes in Table 2. If the installation requires different field pipe
diameter due to different application condition other than recommended, contact ActronAir for advice.
Most of unit pipe connections are factory swaged to easily fit to the recommended field pipe diameter.
When it is required to install other refrigeration devices, such as refrigerant drier, solenoid valve and the like, include the
equivalent straight pipe length of the device in the calculation of total equivalent field pipe length.
Both pipes are required to be insulated.

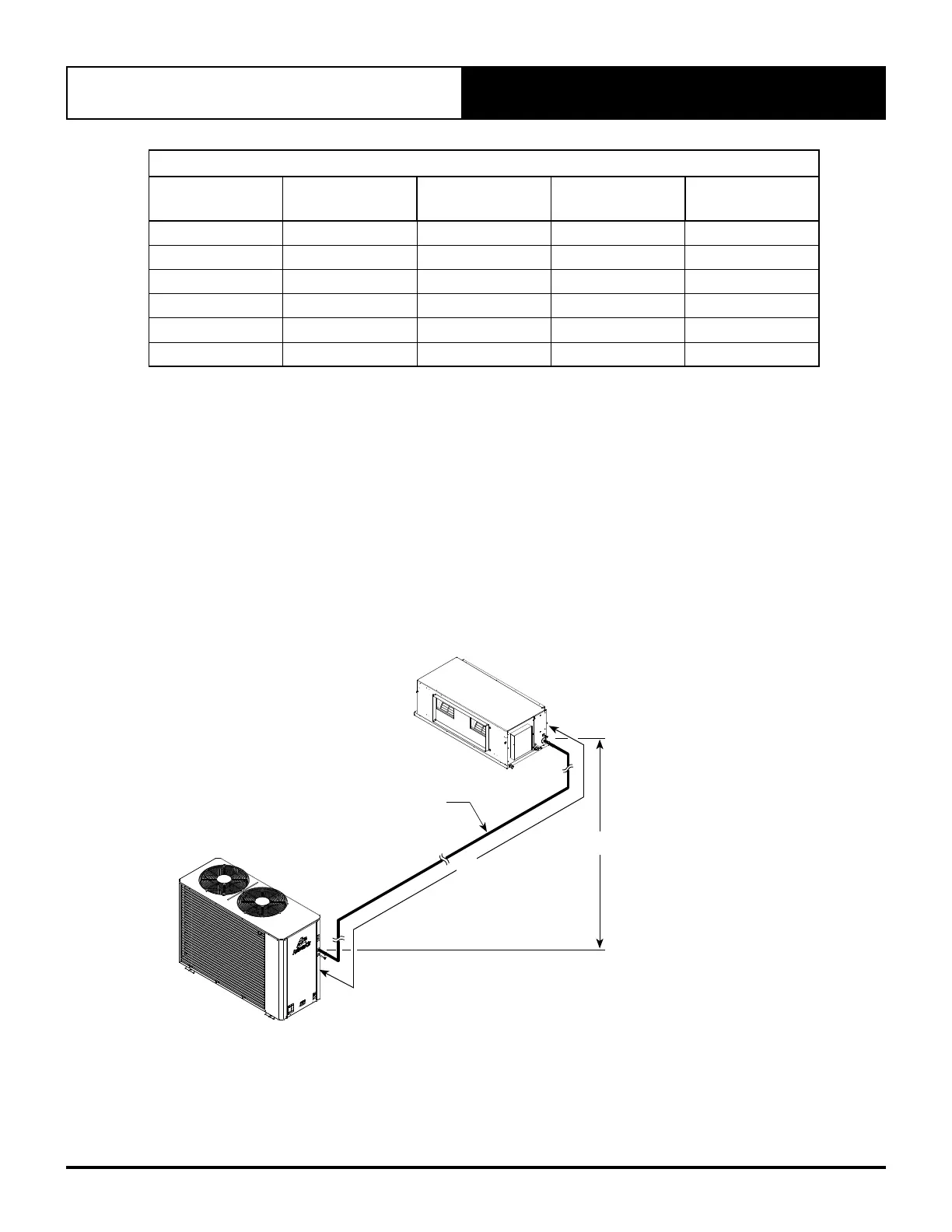

A = EQUIVALENT PIPE LENGTH,
60 meters (max)
B = VERTICAL HEIGHT,
20 meters (max)
B
OUTDOOR UNIT
INDOOR UNIT
A
FIELD PIPE
(Installer to Supply)
