User’s Manual T1-16 Tactical Ascender
SERVICE & MAINTENANCE

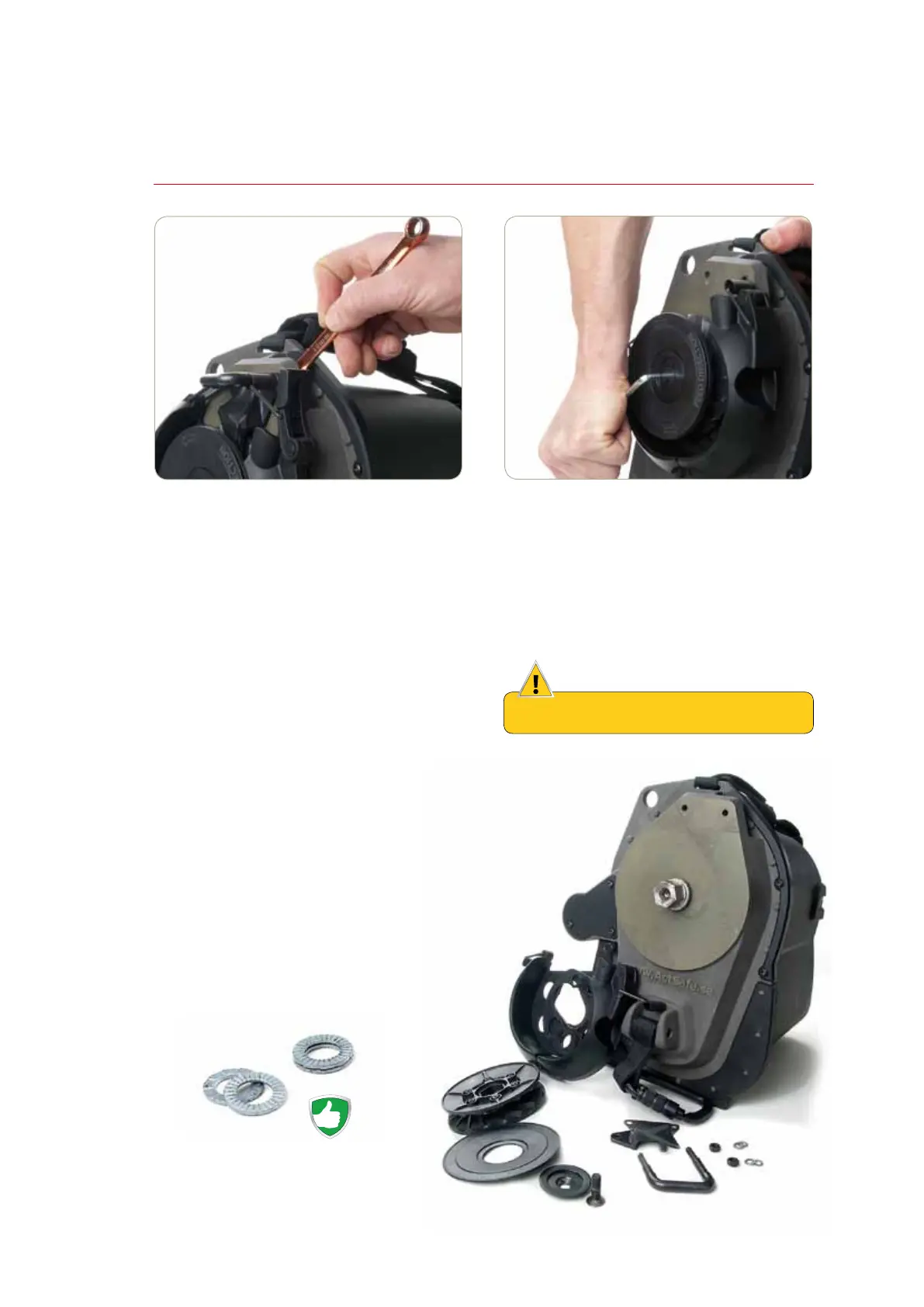

Changing the rope grab system
If unsure of any of these steps, contact
ActSafe Systems AB or local distributor.
1. Unscrew the rope guide (2 nuts).
2. Pull out the rope guide, lift up the knife.
3. Unscrew the rope grab, take o the
heat shield (1 screw).
4. Pull out the rope grab and rope cover.
Check and replace any damaged parts.
5. If parts are not replaced, clean them
before reassembling.
6. Put the rope cover, rope grab and heat
protection shield on the axle, with the
screw tightened to 10 Nm and use
Loctite 542 .
7. Put the knife, spacing washer and loop
in place. Attach the rope cover to the
rope guide. Tighten the nuts to 10 Nm.
Make sure the Nordlock washers are
assembled correctly.
Check that the knife is centred in the rope grab.
CAUTION
