Speedometer
U.S. Models
This shows your speed in miles per
hour (mph). The smaller inner
numbers are the speed in kilometers
per hour (km/h).
Canadian Models
This shows your speed in kilometers
per hour (km/h). The smaller inner
numbers are the speed in miles per
hour (mph).
Tachometer
The tachometer shows the engine
speed in revolutions per minute
(rpm). To protect the engine from
damage, never drive with the
tachometer needle in the red zone.
Gauges
Oil Pressure Gauge
This shows the engine's oil pressure
in kilograms per square centimeter
(kg/cm
2
). This pressure varies with
engine speed and temperature. If the
oil pressure falls low enough to
cause engine damage, the Low Oil
Pressure Indicator conies on (see
page 255).
Temperature Gauge
This shows the temperature of the
engine's coolant. During normal
operation, the pointer should rise
from the bottom white mark to about
the middle of the gauge. In severe
driving conditions, such as very hot
weather or a long period of uphill
driving, the pointer may rise to near
the upper white mark. If it reaches
the red (Hot) mark, pull safely to the
side of the road. Turn to page 252 for
instructions and precautions on
checking the engine's cooling
system.
Instruments and Controls

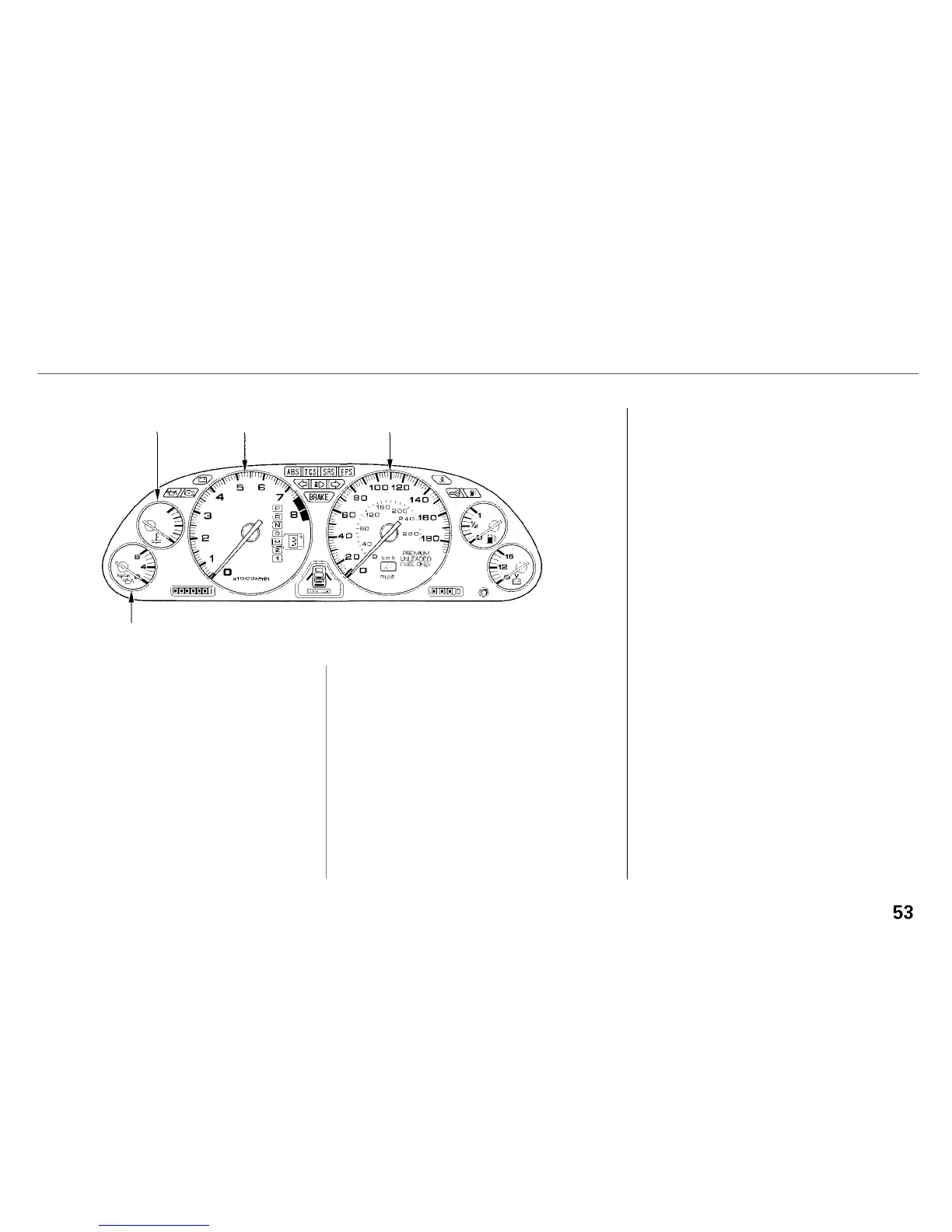

TEMPERATURE GAUGE TACHOMETER
SPEEDOMETER
