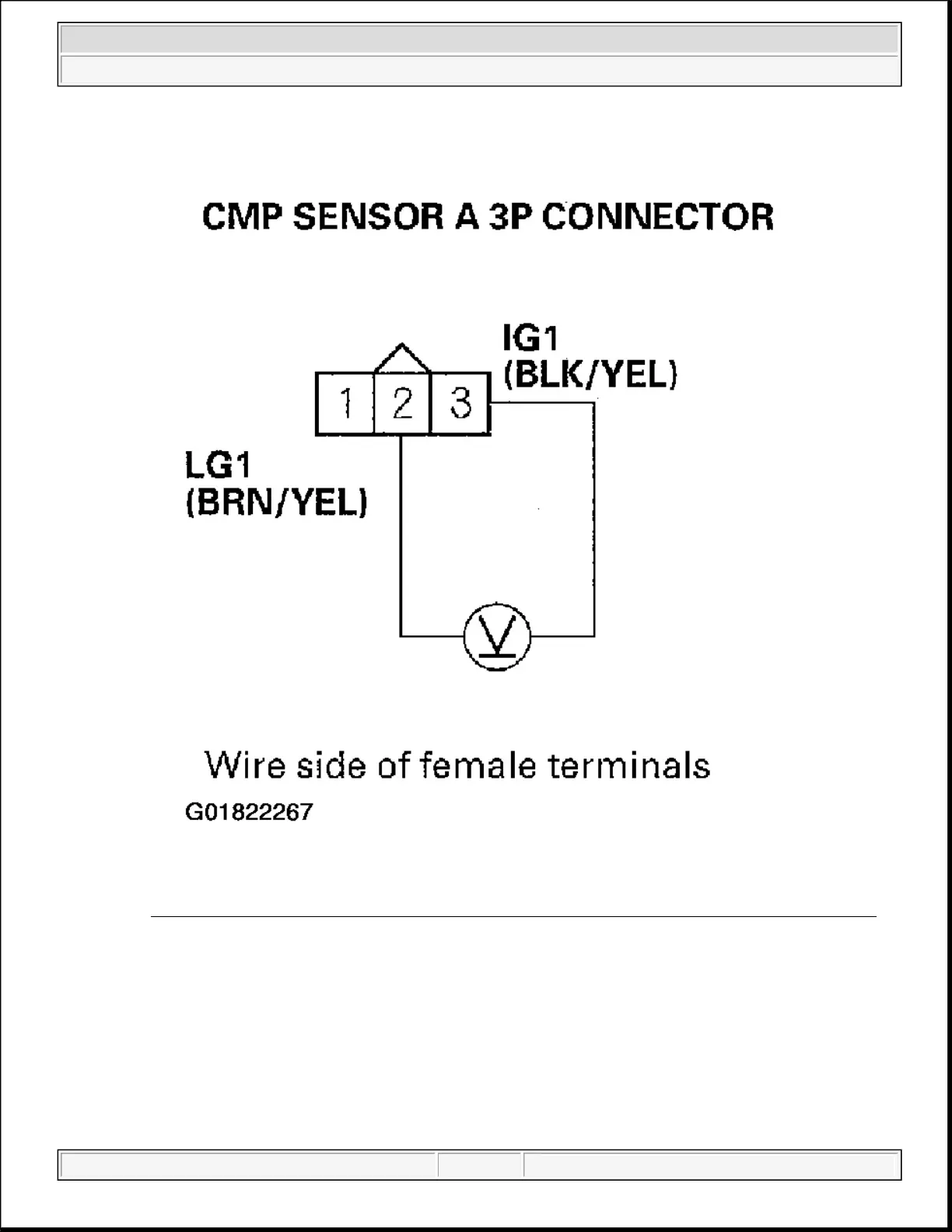

Fig. 10: Measuring Voltage Between CMP Sensor A 3P Connector Terminals No. 2 & No. 3
11. Measure voltage between ECM/PCM connector terminal A19 and body ground.
Is there about 5 V?
YES: Repair open in the wire between the ECM/PCM (A19) and CMP Sensor A, then go to
step 19 .
NO: Go to step 12.
2004 Acura TSX
2004 ENGINE PERFORMANCE VTEC/VTC - TSX
Wednesday, March 12, 2008 2:17:58 AM Page 14
