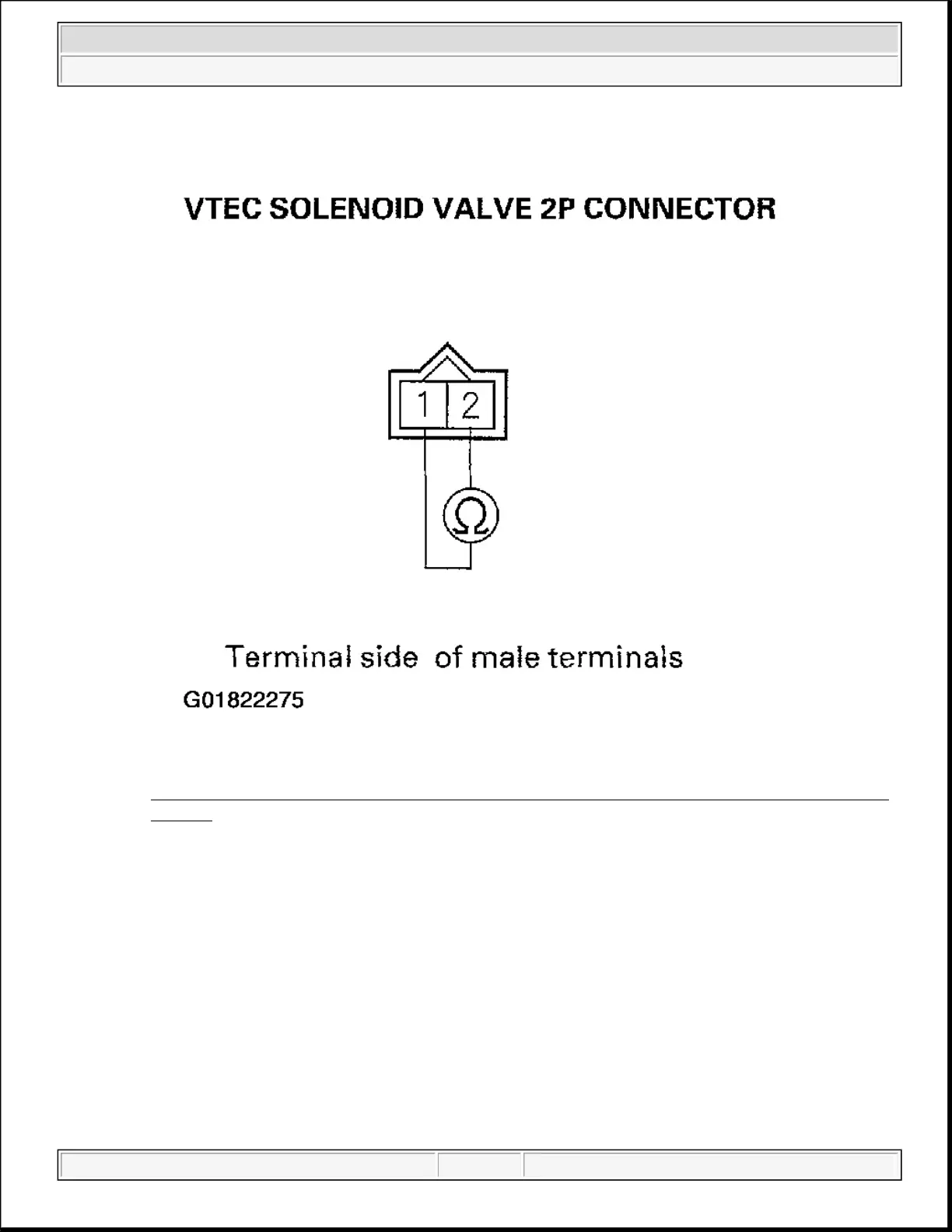

Fig. 18: Measuring Resistance Between VTEC Solenoid Valve 2P Connector Terminals No. 1
& No. 2
7. Jump the SCS line with the HDS.
8. Disconnect ECM/PCM connector B (24P).
9. Check for continuity between ECM/PCM connector terminal B6 and body ground.
Is there continuity?
YES: Repair short in the wire between the ECM/PCM (B6) and the VTEC solenoid valve,
then go to step 11 .
NO: Go to step 18 .
2004 Acura TSX
2004 ENGINE PERFORMANCE VTEC/VTC - TSX
