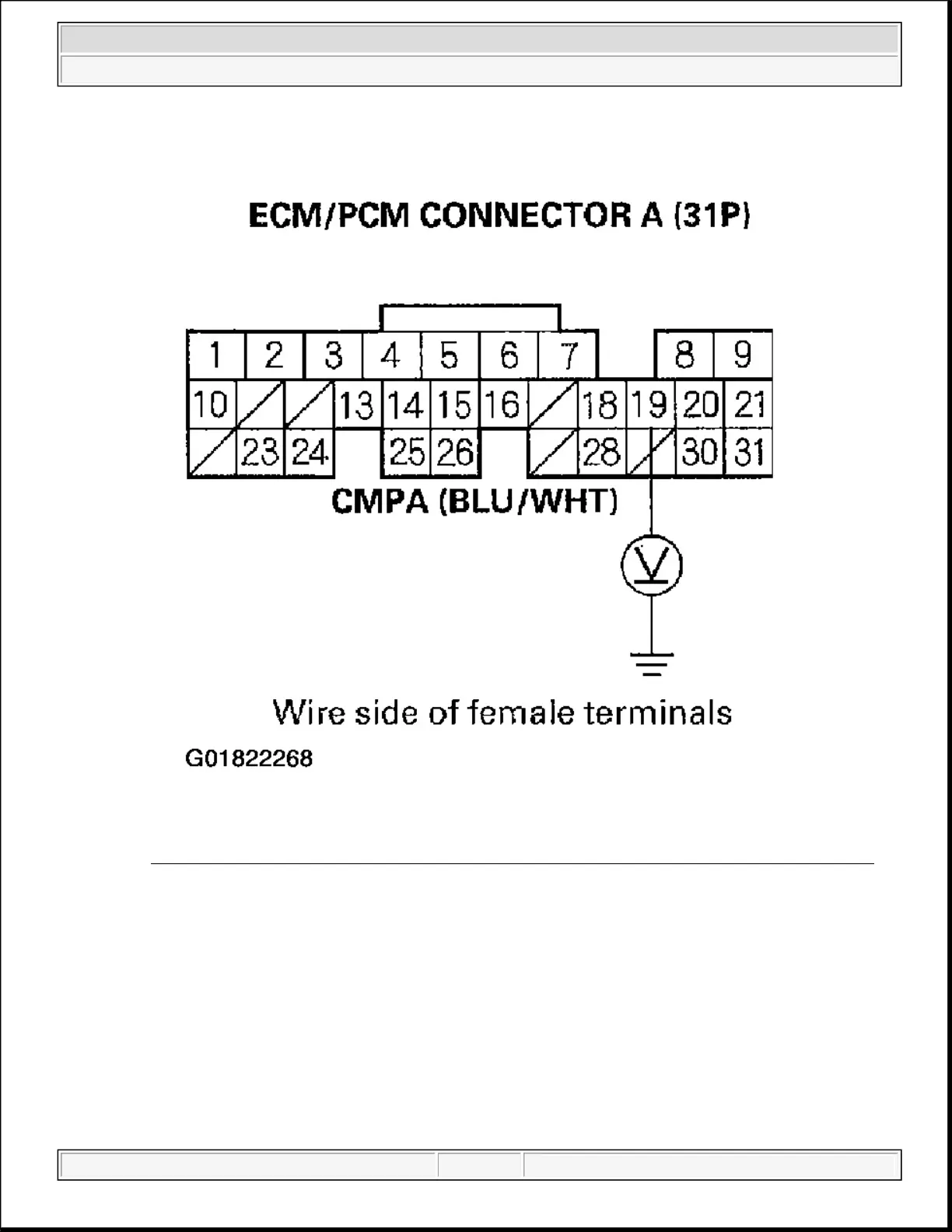

Fig. 11: Measuring Voltage Between ECM/PCM Connector Terminal A19 & Body Ground
12. Turn the ignition switch OFF.
13. Jump the SCS line with the HDS.
14. Disconnect ECM/PCM connector A (31P).
15. Check for continuity between ECM/PCM connector terminal A19 and body ground.
Is there continuity?
YES: Repair short in the wire between the ECM/PCM (A19) and CMP Sensor A, then go to
step 18 .
NO: Go to step 23 .
2004 Acura TSX
2004 ENGINE PERFORMANCE VTEC/VTC - TSX
Wednesday, March 12, 2008 2:17:58 AM Page 15
