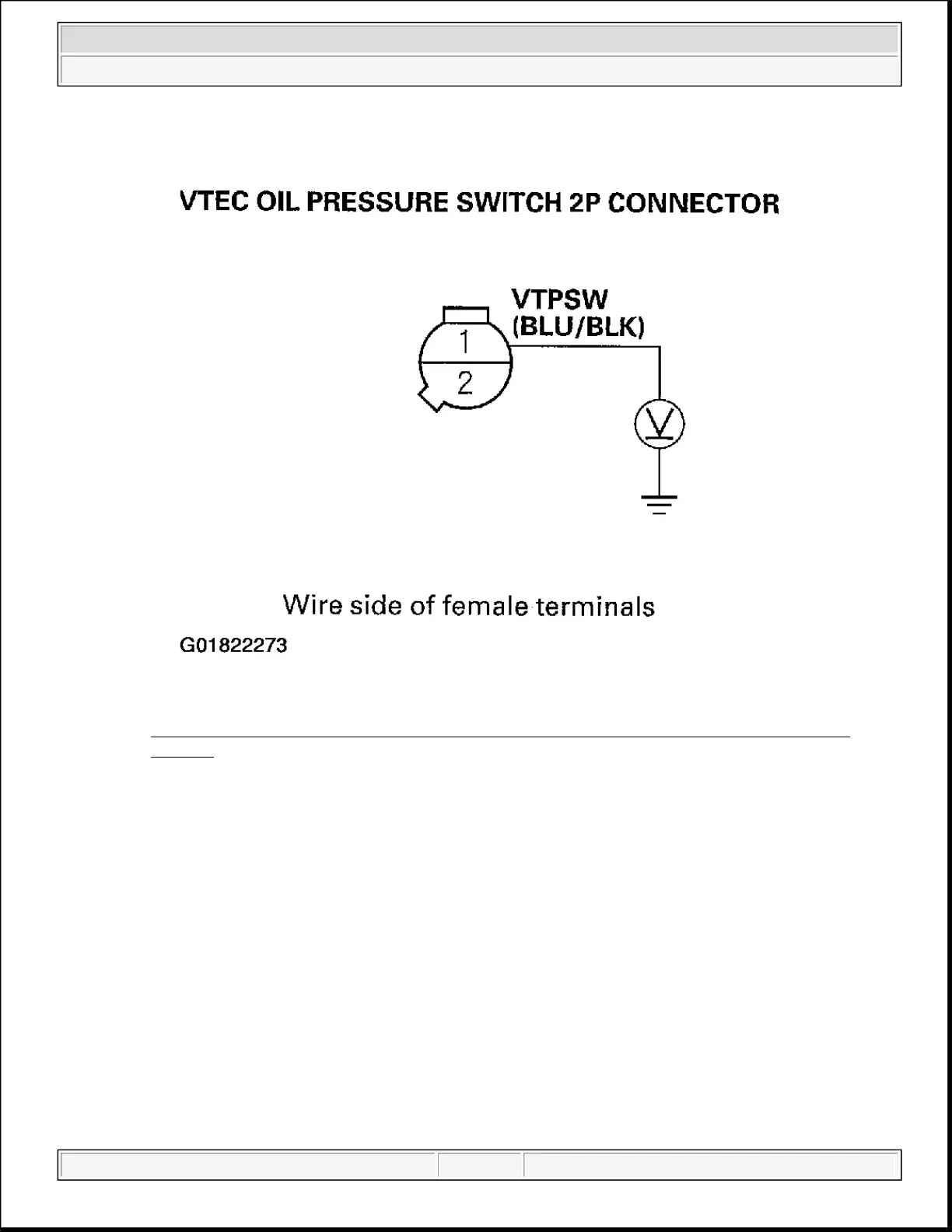

Fig. 16: Measuring Voltage Between VTEC Oil Pressure Switch Terminal No. 1 & Body
Ground
11. Measure voltage between ECM/PCM connector terminal B11 and body ground.
Is there battery voltage?
YES: Repair open in the wire between the ECM/PCM (B11) and the VTEC oil pressure
switch, then go to step 12.
NO: Go to step 19 .
2004 Acura TSX
2004 ENGINE PERFORMANCE VTEC/VTC - TSX
Wednesday, March 12, 2008 2:17:58 AM Page 26
