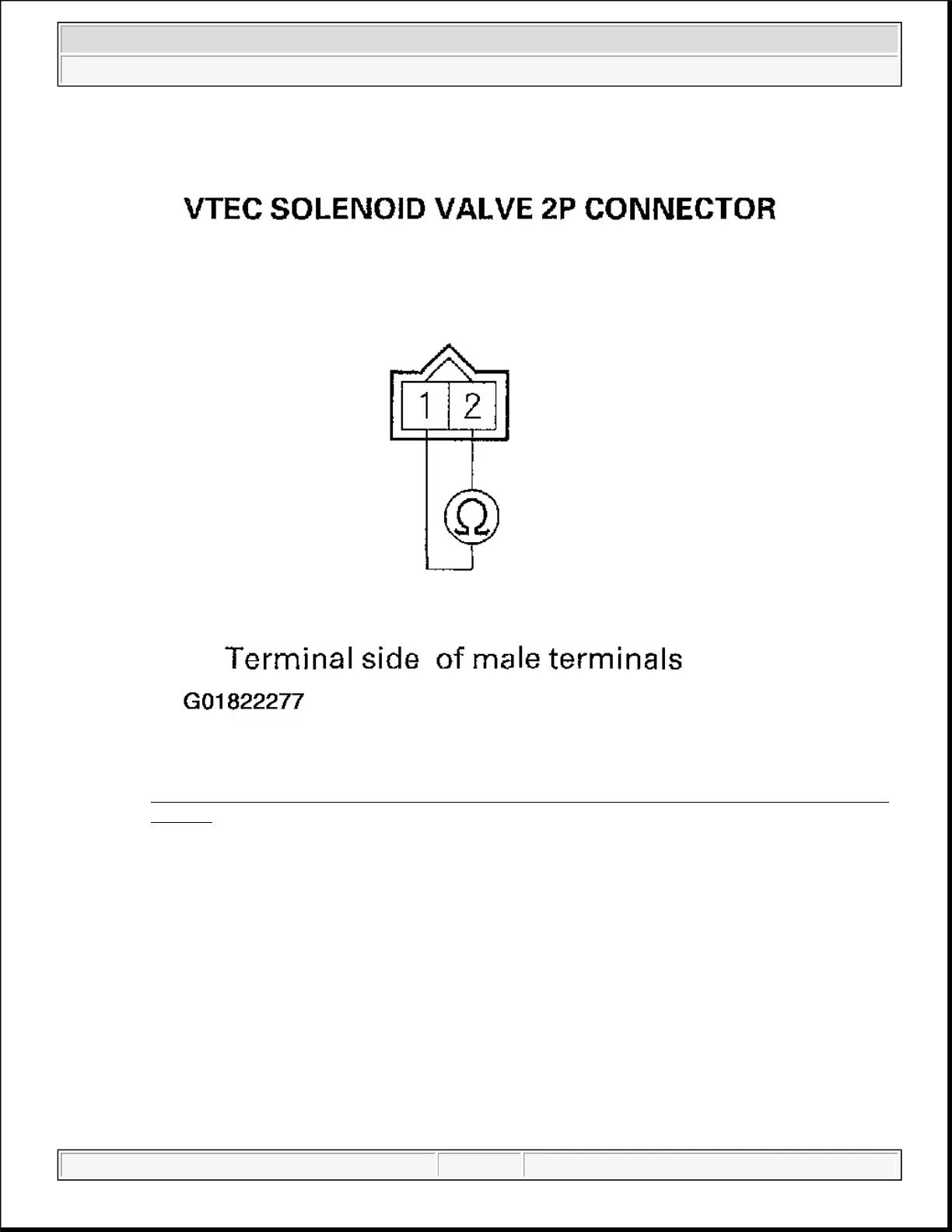

Fig. 20: Measuring Resistance Between VTEC Solenoid Valve 2P Connector Terminals No. 1
& No. 2
8. Check for continuity between VTEC solenoid valve terminal No. 2 and body ground.
Is there continuity?
YES: Go to step 9.
NO: Repair open in the wire between the VTEC solenoid valve and G101, then go to step
14 .
2004 Acura TSX
2004 ENGINE PERFORMANCE VTEC/VTC - TSX
Wednesday, March 12, 2008 2:17:58 AM Page 32
