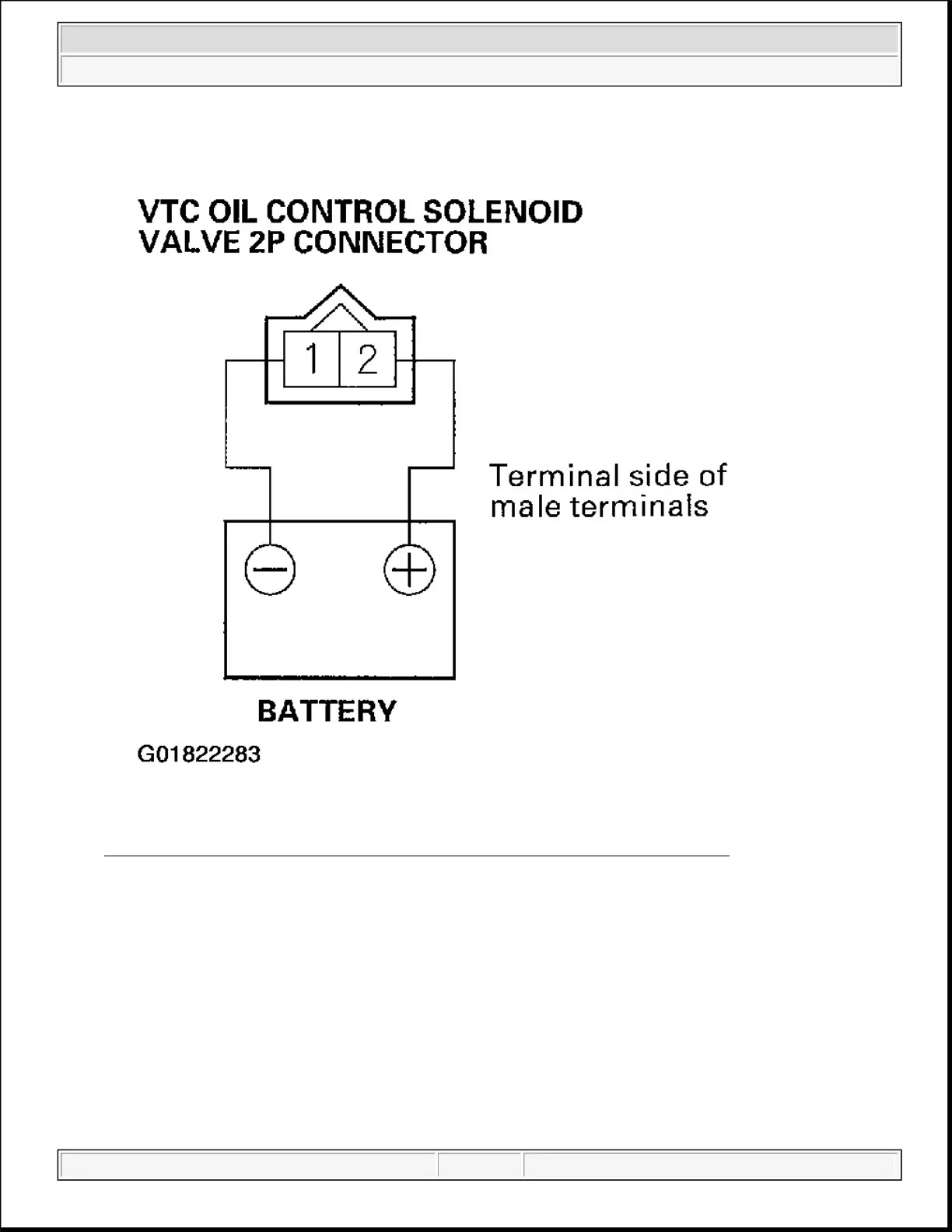

Fig. 26: Connecting Battery To VTC Oil
Control Solenoid Valve 2P Connector
6.
Connect the battery negative terminal to VTC oil
control solenoid valve 2P
connector terminal No. 1.
Clearance (A) should be at least 1.2 mm
(1/16 in.). If the valve does not
open, replace it, then go to step
7.
2004 Acura TSX
2004 ENGINE PERFORMANCE VTEC/VTC - TSX
Wednesday, March 12, 2008 2:17:58 AM
Page 39
38
40
Table of Contents
Component Location Unit
1
Troubleshooting
1
DTC P0010: VTC Oil Control Solenoid Valve Malfunction
2
VTC Oil Control Solenoid Valve 2P Connector
3
ECM/PCM Connector B (24P)
5
DTC P0011: VTC System Malfunction
8
Removing the VTC Strainer & Checking It for Clogging
9
DTC P0340: CMP Sensor a no Signal
10
CMP Sensor a 3P Connector
12
ECM/PCM Connector a (31P)
15
DTC P0341: CMP Sensor and CKP Sensor Incorrect Phase Detected
17
DTC P0344: CMP Sensor a Intermittent Interruption
18
DTC P2646: Oil Pressure Switch Circuit Low Voltage
20
DTC P2647: VTEC Oil Pressure Switch Circuit High Voltage
23
VTEC Oil Pressure Switch 2P Connector
25
DTC P2648: VTEC Solenoid Valve Circuit Low Voltage
28
VTEC Solenoid Valve 2P Connector
29
DTC P2649: VTEC Solenoid Valve Circuit High Voltage
31
VTC Oil Control Solenoid Valve Removal/Test/Installation
36
VTEC Solenoid Valve Inspection
41
CMP Sensor Replacement
44
Removal and Installation
44
VTEC Solenoid Valve Removal/Installation
45
Removing VTEC Solenoid Valve
47
Removing VTEC Oil Pressure Switch
47
