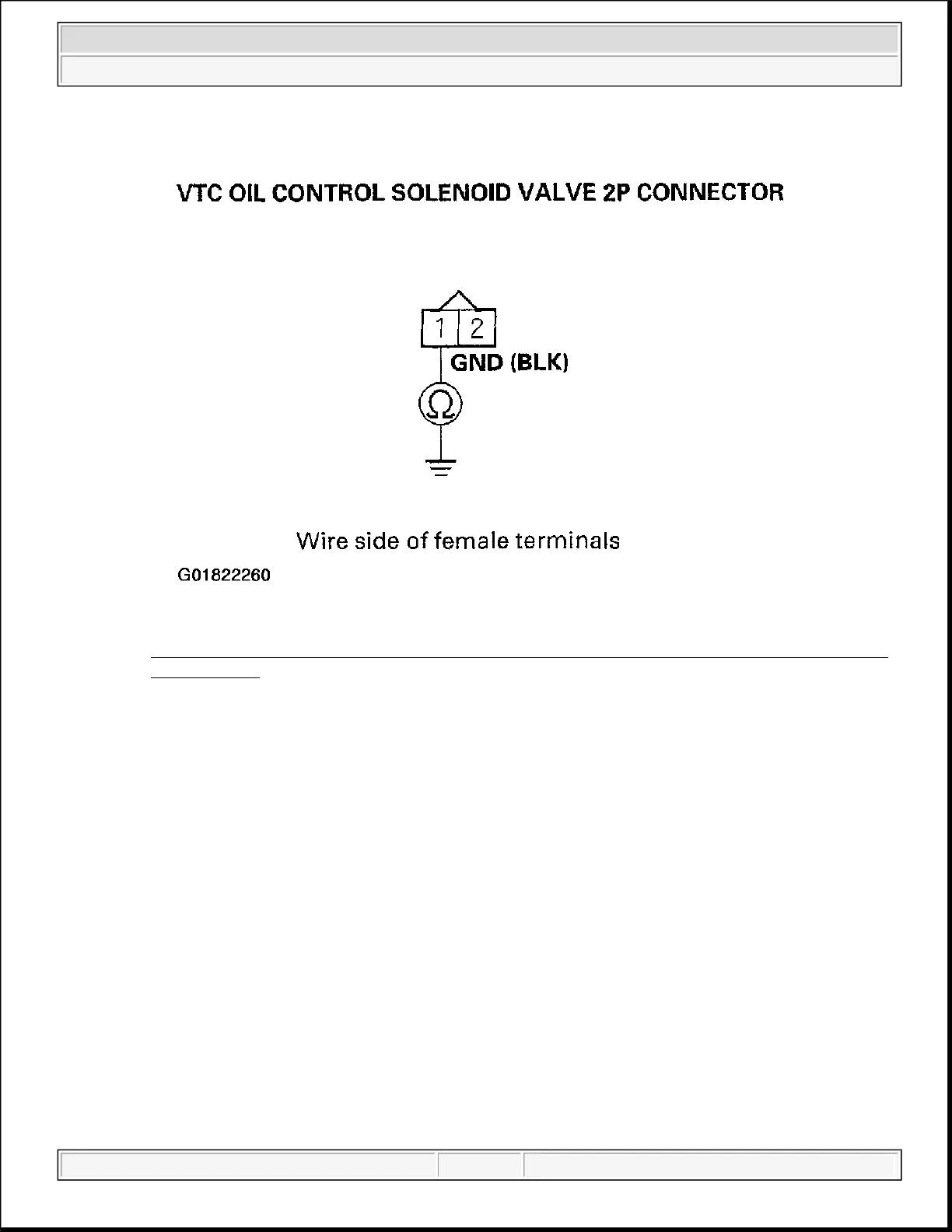

Fig. 3: Checking For Continuity Between VTC Oil Control Solenoid Valve Terminal No. 1 &
Body Ground
10. Jump the SCS line with the HDS.
11. Disconnect ECM/PCM connector B (24P).
12. Check for continuity between ECM/PCM connector terminal B1 and body ground.
Is there continuity?
YES: Repair short in the wire between the ECM/PCM (B1) and the VTC oil control solenoid
valve, then go to step 16 .
NO: Go to step 13.
