6 A SERIES MANUAL [ENGLISH] 7A SERIES MANUAL [ENGLISH]

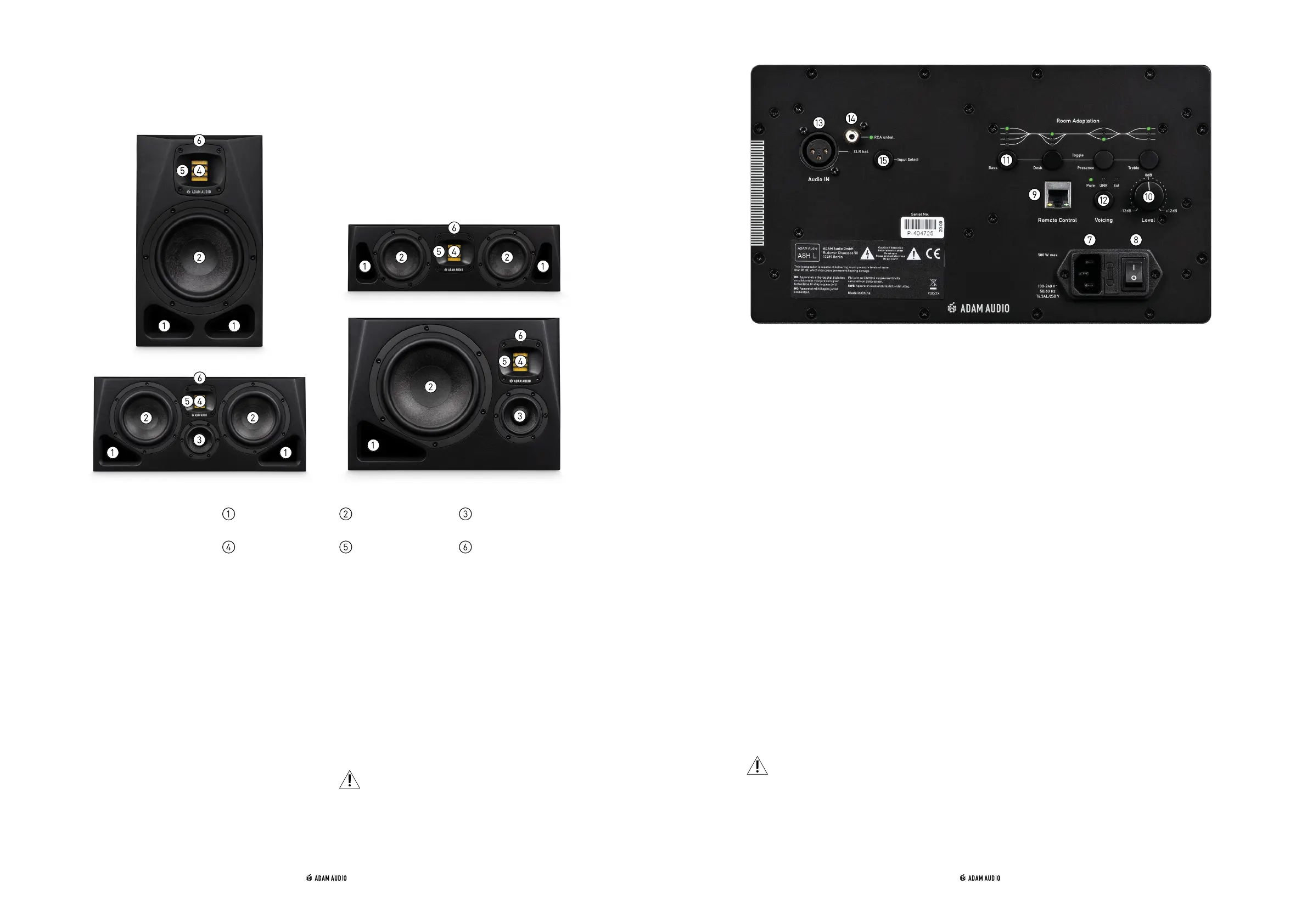

2. OVERVIEW
Port(s) Woofer(s) Midrange driver
Tweeter Waveguide Status LED
Backplate:
IEC mains power connector to connect to AC mains power.
Mains power switch to switch the loudspeaker on and off.
RJ45 Ethernet connection brings remote control functionality when used with
ADAM Audio A Control software (see section 5). The loudspeaker’s firmware can also
be updated using ADAM Audio A Control via the Ethernet connection.
Level control knob for gain adjustment.
Press buttons to cycle between Room Adaptation options for Bass, Desk, Presence
and Treble.
Press button to cycle between Voicing options.
XLR balanced analog audio input.
RCA unbalanced analog audio input.
Press button to cycle the two analog inputs.
Note: All the elements described above are present on all the products. However,
the position of the back panel elements varies on each product.Note: There are two versions of
the A8H denoted left and right. See
section 3.3 for further information
about installing them in your room.
Status color scheme and functionality:
Color Function
Green Power on
Dim (flashing)
Sleeping (pulsing)
Red Booting up
Shutting down
Muted (flashing)
Gold Short term limiter active (flash)
Firmware update (slow blinking)
Factory reset (fast blinking)
Major parts:
Color Function
Violet Long term limiter active
(on whilst active)
White Identify function in ADAM Audio
A Control
⑦
⑧
⑨
⑩
⑪
⑫
⑬
⑭
⑮
