5

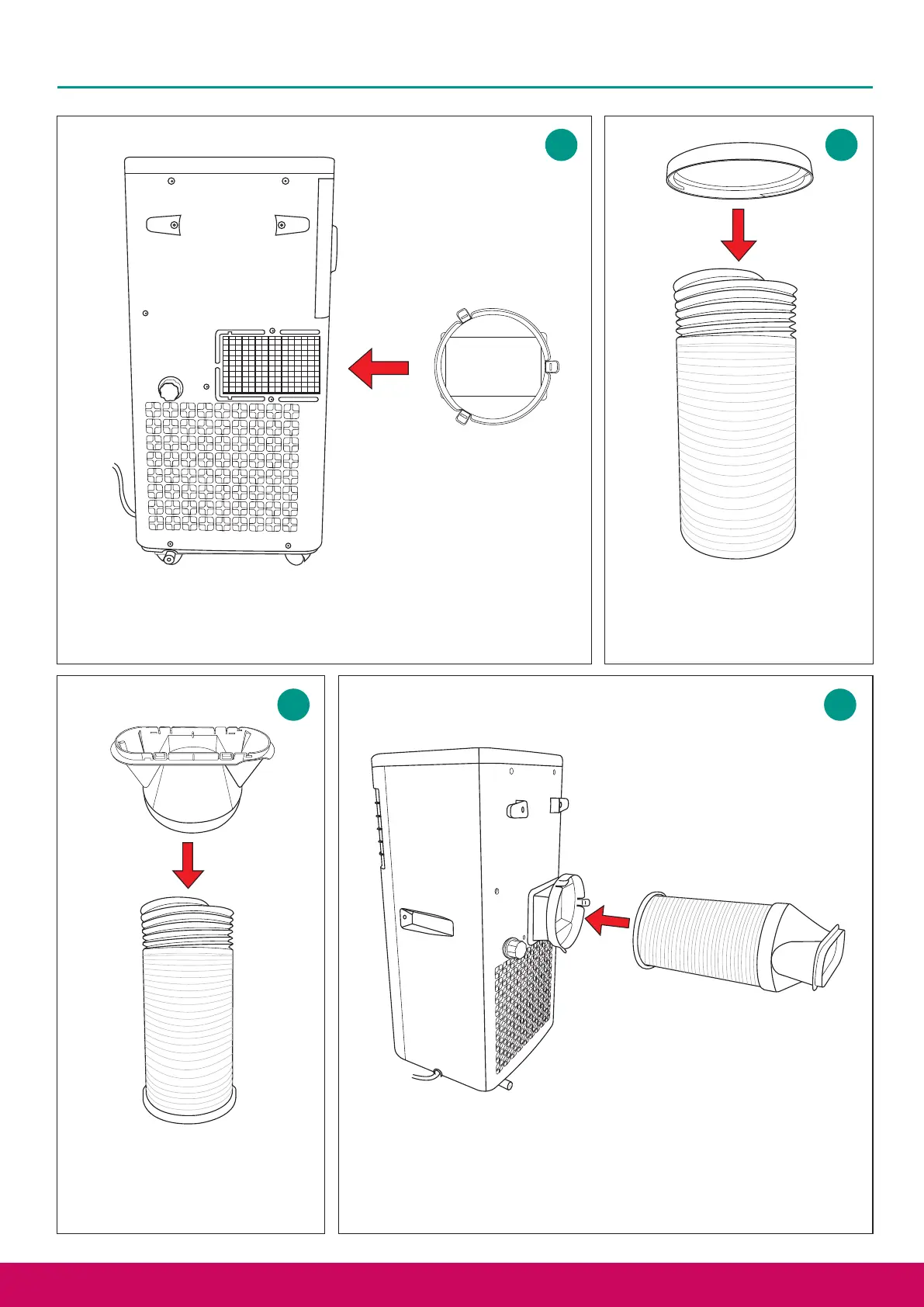

Exhaust Hose Installation
Connect the Exhaust Hose Connector to the Air Conditioner’s
exhaust outlet by sliding it in from right to left on the back of the
Air Conditioner.
1
Pull one end of the Exhaust Hose to
unfold part of the hose. Rotate the
Exhaust Snap Ring onto the Exhaust
Hose.
2
Unfold the other end of the
Exhaust Hose and rotate the
Exhaust Outlet onto the hose.
3
Press the assembled Exhaust Hose into the Exhaust Hose Connector
on the back of the Air Conditioner.
4
To Next Page
