IRIS-4 Technical Reference Manual.docx 12/01/2023 page 39

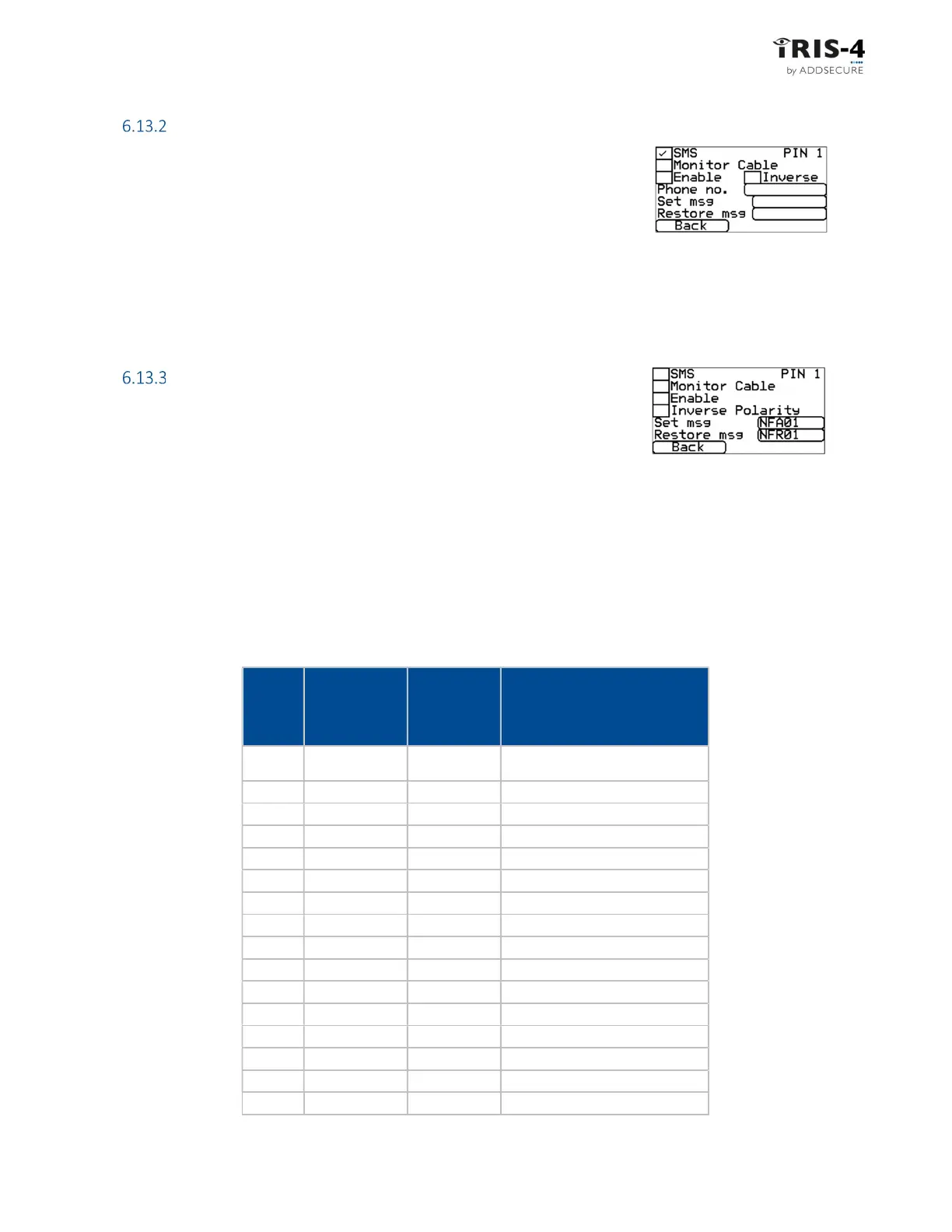

Alarm format SMS
Selecting SMS format for all pins or ticking this box for a specific pin will mean
that on input “Set” (open circuit) and input “Restore” (closed circuit), the
terminal will send the configured SMS text for the set or restore message to the
configured phone number.
6.13.2.1 Phone number
This option lets you enter the phone number to which the SMS message will be sent
.
6.13.2.2 Set msg and Restore msg
Enter the Set and Restore text messages to be sent. No message is sent for an entry that is blank.
Alarm format SIA
On input “Set” (open circuit) and input “Restore” (closed circuit), the terminal
will send SIA alarm protocol messages for that input.
6.13.3.1 Set msg and Restore msg
Here you can input the “Set” and “Restore” messages in the correct format as defined in SIA format protocol
SIA DC-03-1990.01(R2003.10). The default "Set" and "Restore" event codes are in the table below.
These defaults can be changed and text descriptions to be sent with the SIA alarm code (under SIA level 3
alarm protocols) can be added. If you exceed the maximum number of characters for the combined set and
restore messages supported by the terminal, a warning will be shown.
Text descriptions can be added by adding ^ before and after the text. For example, to add the text "Fire" to
the message SIA code "NFA01", input "NFA01^FIRE^" into the touchscreen.
Pin
no.
Set message
SIA code
Restore
message
SIA code
SIA event description
1 NFA01 NFR01 Fire alarm zone 1
2 NPA02 NPR02 Panic alarm zone 2
3 NBA03 NBR03 Burglary alarm zone 3
4 NOP04 NCL04 Open/Close zone 4
5 NIA05 NIR05 Equipment fault zone 5
6 NBB06 NBU06 Burglary bypass zone 6
7 NBV07 NBR07 Burglary verified zone 7
8 NTA08 NTR08 Tamper alarm zone 8
9 NAT09 NAR09 AC Power trouble zone 9
10 NFT10 NFJ10 Fire trouble zone 10
11 NQA11 NQR11 Emergency alarm zone 11
12 NYT12 NYR12 System battery trouble zone 12
13 NMA13 NMR13 Medical alarm zone 13
14 NUA14 NUR14 Untyped alarm zone 14
15 NUA15 NUR15 Untyped alarm zone 15
16 NUA16 NUR16 Untyped alarm zone 16
