www.adeept.com
34

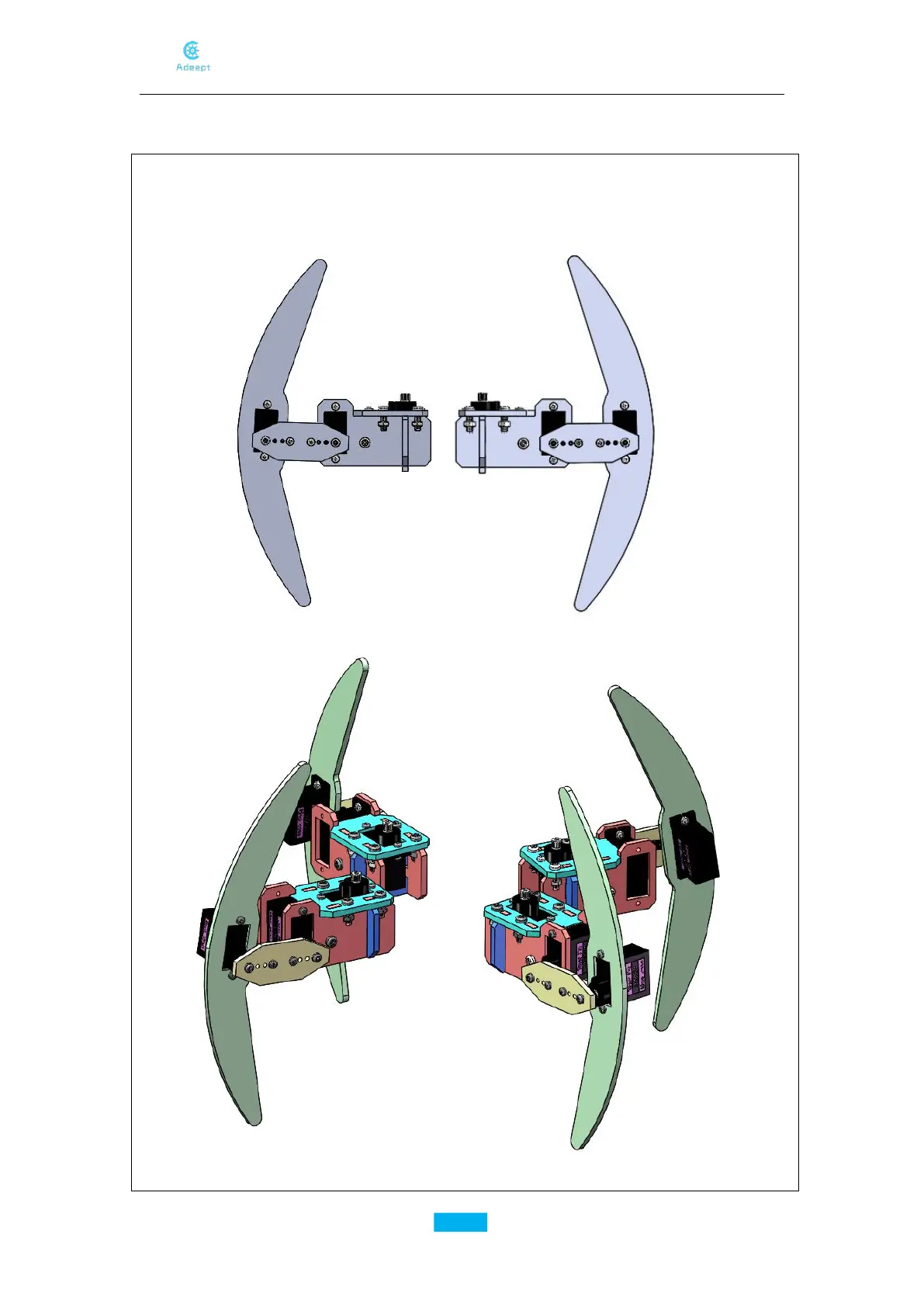

The above is the installation of the leg on one side of the robot. For the installation of the other
side of the leg, refer to the picture below (the legs on both sides are symmetrical).
