www.adeept.com
45

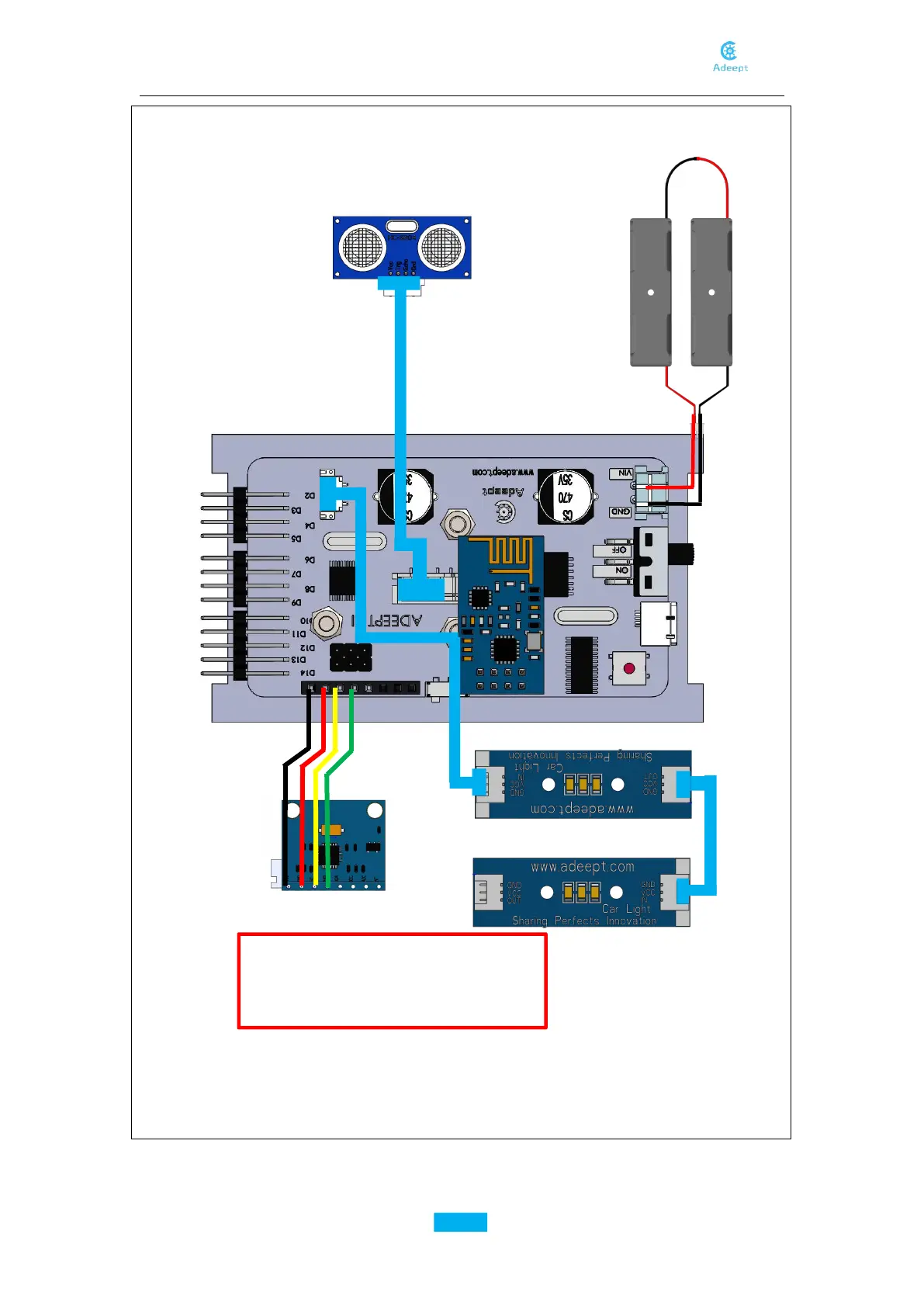

Connect the robot according to the diagram.
When connecting the MPU-6050 with 4-pin
wire-2, please connect different interfaces of
AdeeptPixie according to the figure.
