GENERAL INFORMATION

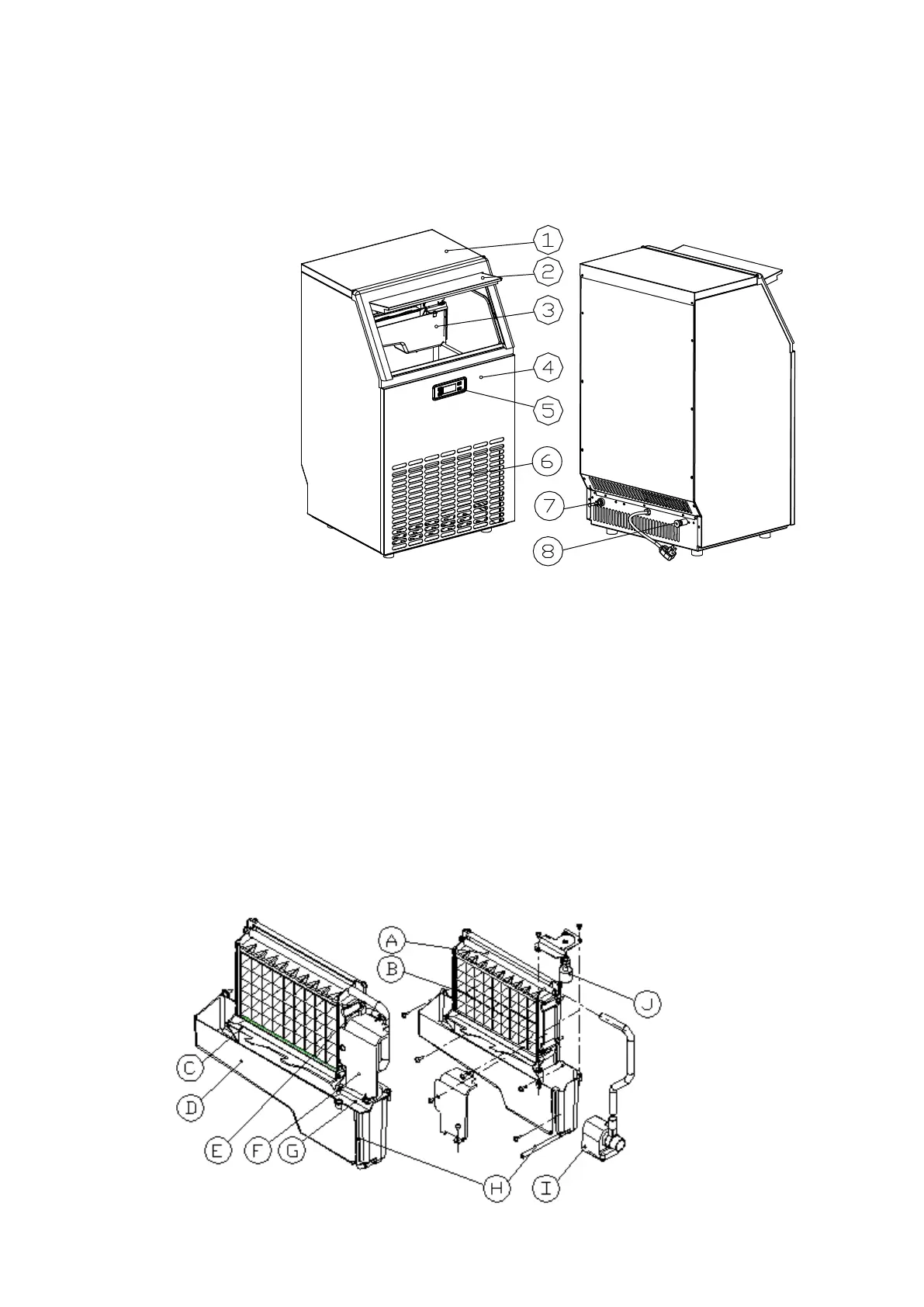

1) Mai n Unit Construction
1. Top cover
2. Door for ice taking
3. Ice-making & its water tank assembly: Including ice-making evaporator, water tank, water pump
and some detecting parts
4. Front panel
5. Operation panel
6. Air outlet: Must keep the air circulate smoothly, hot air will blow out when unit running.
7. Water draining port：Normal plugged with the cap . When need to drain the water, unplug the cap.
And connect the white drain pipe.
8. Water inlet p
ort for water sup ply: Use to connect the water supply pipe.
Accessory: 2 meters long and white color water drain pipe、
water quick connector of the water faucet,
¢6.35mm diameter and white color water supply pipe(3 meters long）。
2) Ice- making and its water tank parts
To Next Page
