7
A. Water dividing pipe ：with nine little holes, wate r will flow out from these little holes. And if no
water flows out, can be disassembled and cleaned.
B. Evaporator (ice-making module)
C. Ice full detecting board: Use to detect the inner cabinet is full of ice or not, and to check the the
ice-harvest process is over or not.
D．Water tank：
E．Water supplying pipe：
F．Cover board on the right side of the evaporator：
G．Water level switch installing plate：
H．Water drain pipe of the
water tank：when ice-making, this pipe should be clamped in the slot of
the water tank wall; And when draining , thi s pipe should be pulled out.
I．Water pump：
J．Water level detect ing switch

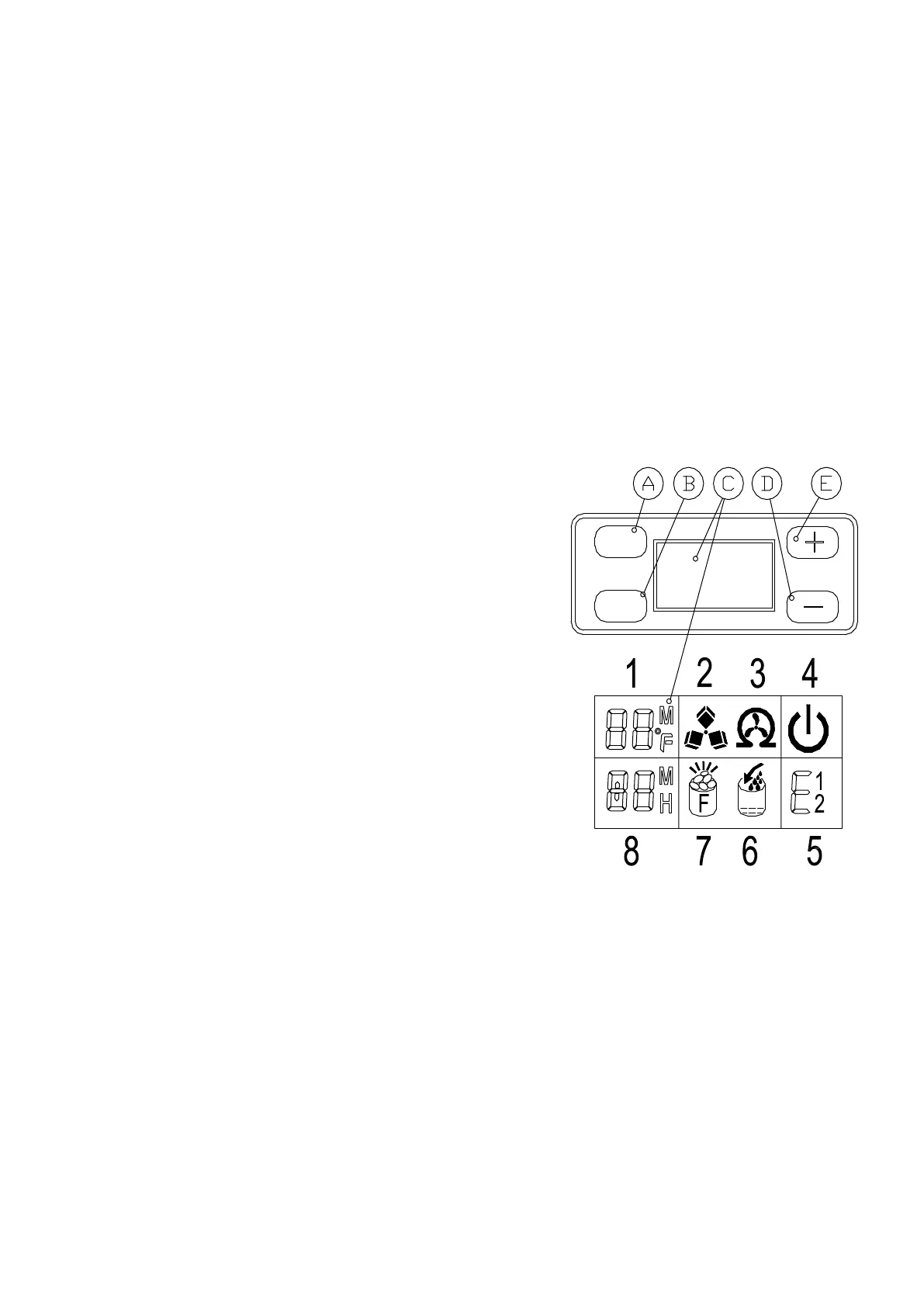

3) Operation panel
5．Error code display，E1 means the environmental temperature sensor is damaged.，E2 means
ice making anomaly or the refrigerant leaked
6．Water flow in and water shortage display, the arrow flashing indicates that the machine is in
the water, the whole symbol is bright t
o indicate that the machine is short of water.
7．Ice full alarm,the machine will making ice again when you take out the ice.
8．Setting display.Display timing switch machine with the H as unit display;Display ice making
time setting with M as unit displa y.
D&E．“+”、“-”button：
Use to adjust the ice-making process duration period length, the default setting is zero, 1
minute adding or decreasing per each pressing of “+” or “-” button.
Also to adjust the delay time of the timer, t
he default setting is zero, 1 hour adding or
decreasing per each pressing of “+” or “-” button.
“
”
：
Quickly press this button once, to enter the Timer
setting program; And press this button for more than 5
seconds, to enter the Cleaning program.
B.“ON/OFF”button：
When the unit is off, press this button to turn on the
unit; And during the Self-cleaning program, or normal
ice-making s tate, press this button to turn off the unit
at once; And also if the unit is set with the Timer, press
this button to cancel the Timer setting.
When the unit is m aking the ice cube, press this butto n
for more than 5 seconds, the unit will switch to ice
harvest process by force.
C．LCD display window
1.Environmental temperature display and ice - making
time countdown display.Display ice-making time
countdown with M as the unit display,and display
environmen tal temperature with F as the unit display.
2．Making ice and deice symbol display,the machine is
making ice when the symbol rotate,and the machine
is deice when the symbol flash. .
3．Automatic s elf-cleaning s ymbo
l display
．
ON/OFF
TIMER
CLEAN
+
-
