INSTALLATION
STAND MOUNTING

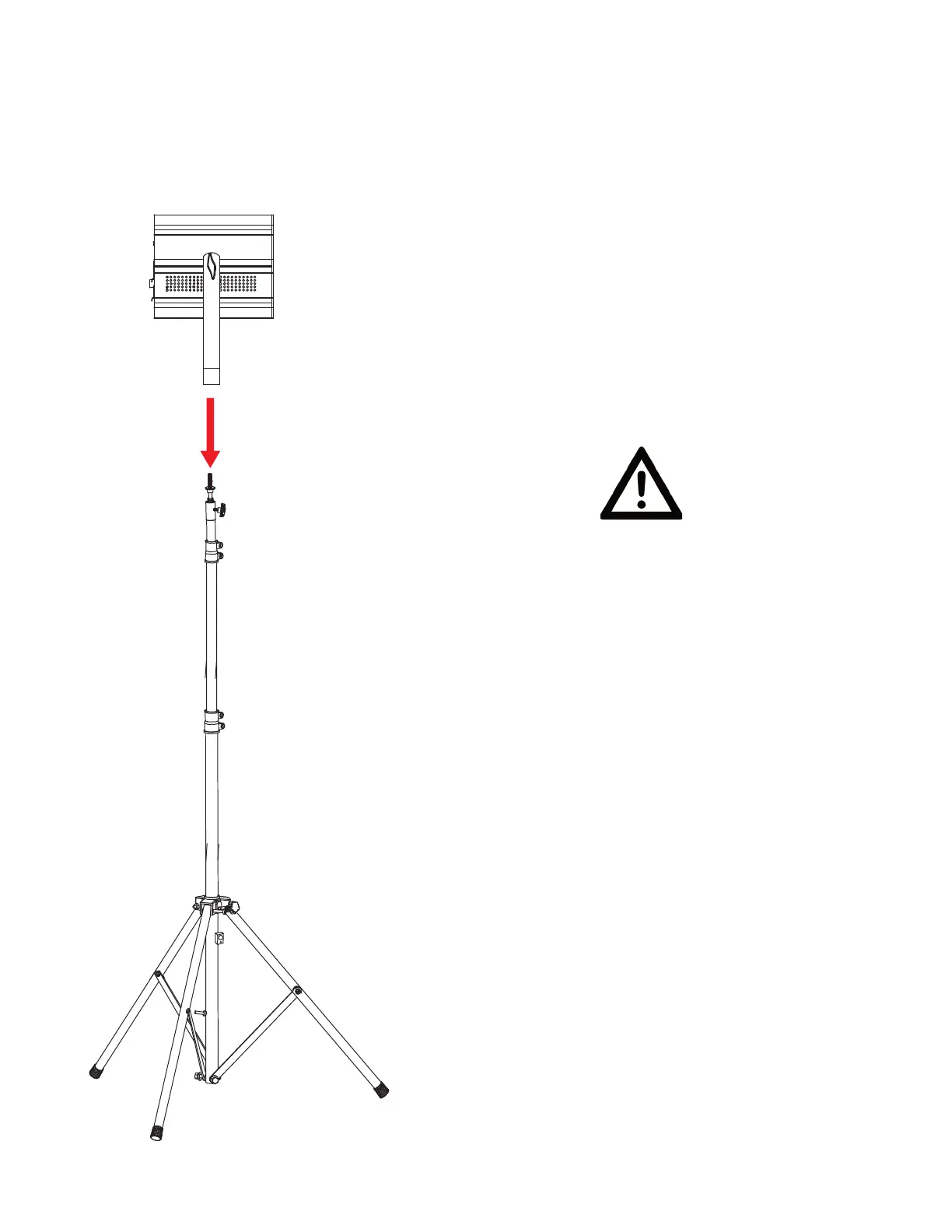

This unit can also be installed atop a tripod stand. Simply insert the threaded bolt on the top of the
tripod stand through the hole in the top of the mounting yoke. Tighten the nut onto the threaded bolt
to secure the mounted device in place.
CAUTION!
MAKE SURE THAT THE TRIPOD LEGS AND ALL
TELESCOPING ELEMENTS OF THE TRIPOD
STAND ARE LOCKED IN PLACE BEFORE INSTALL-
ING THE DEVICE ATOP THE STAND!
POSITION THE TRIPOD STAND AND MOUNTED
DEVICE ONLY ON FLAT, STABLE SURFACES! DE-
PLOY TRIPOD LEGS FULLY IN ORDER TO MAXI-
MIZE STABILITY!
