Time (ms)
0 Sec
255 255
0 0
Standard (default) 0 0 0 0
Stage 780 1100 1540 1660
TV 1180 1520 1860 1940
Architectural 1380 1730 2040 2120
Theatre 1580 1940 2230 2280
Dimming Curve
Ramp Effect
Rise Time Down Time
0 sec Fade Time 1 sec Fade Time
Rise Time (ms) Down Time (ms) Rise Time (ms) Down Time (ms)
ADJ Products, LLC - www.adj.com - Element QA User Manual Page 34 ADJ Products, LLC - www.adj.com - Element QA User Manual Page 35

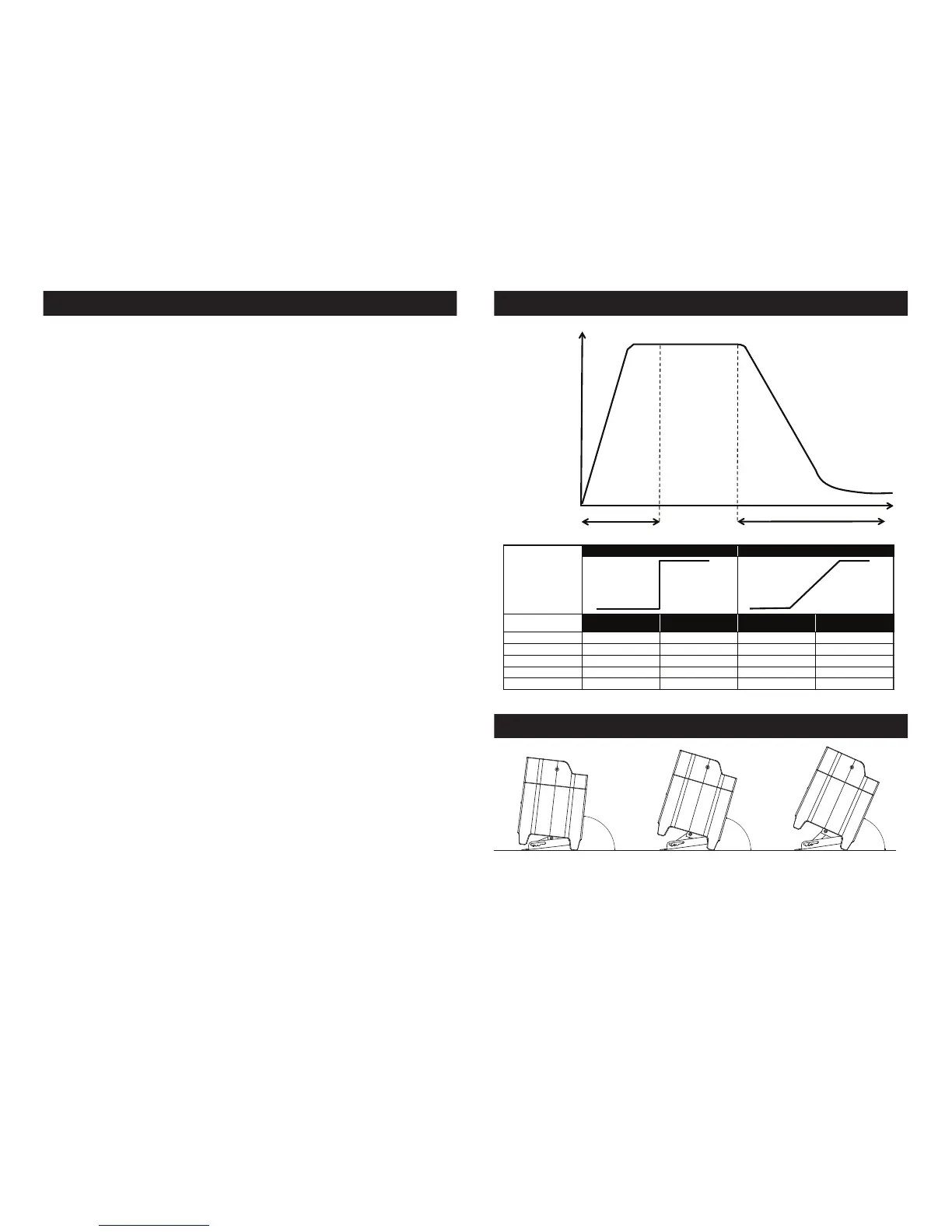

Element QA Kickstand Angles
84°
75°
67°
Battery Status:
This function is used to check the life status of the battery.
Plug the fixture in and press the MODE button until “bXXX” is
displayed. “XXX” represents an number between “000” and
“100”. The number that is displayed is the remaining battery
life. If “b---” is displayed, it means the battery is dead or you are
running the unit on AC power. Please do not let the battery
fully die, this severly shortens the life of the battery.
Example: If “b050” is displayed, the battery is at half life. If
“b025” is displayed, the battery is at 25% life.
NOTE: When the battery is charging or if the battery life is
below 30% the digital display will flash.
NOTE: After 20 seconds of inactivity, the display will revert
back to the battery life display.
Battery Recharge: To recharge the battery, plug the supplied
AC cord into the AC input on the side of the unit and plug the
other end into a matching power supply. It takes about 4 hours
to reach full charge. The display will STOP ashing when the
unit reaches 100% charge.
Note: When unplugging the unit from charging and then
applying power via battery, there will be a minimal charge
drop.
For a faster recharge, turn the Load setting to “O” and turn the
battery “On”. See LOAD SETTING on page 24.
Element QA Battery Status & Recharge
