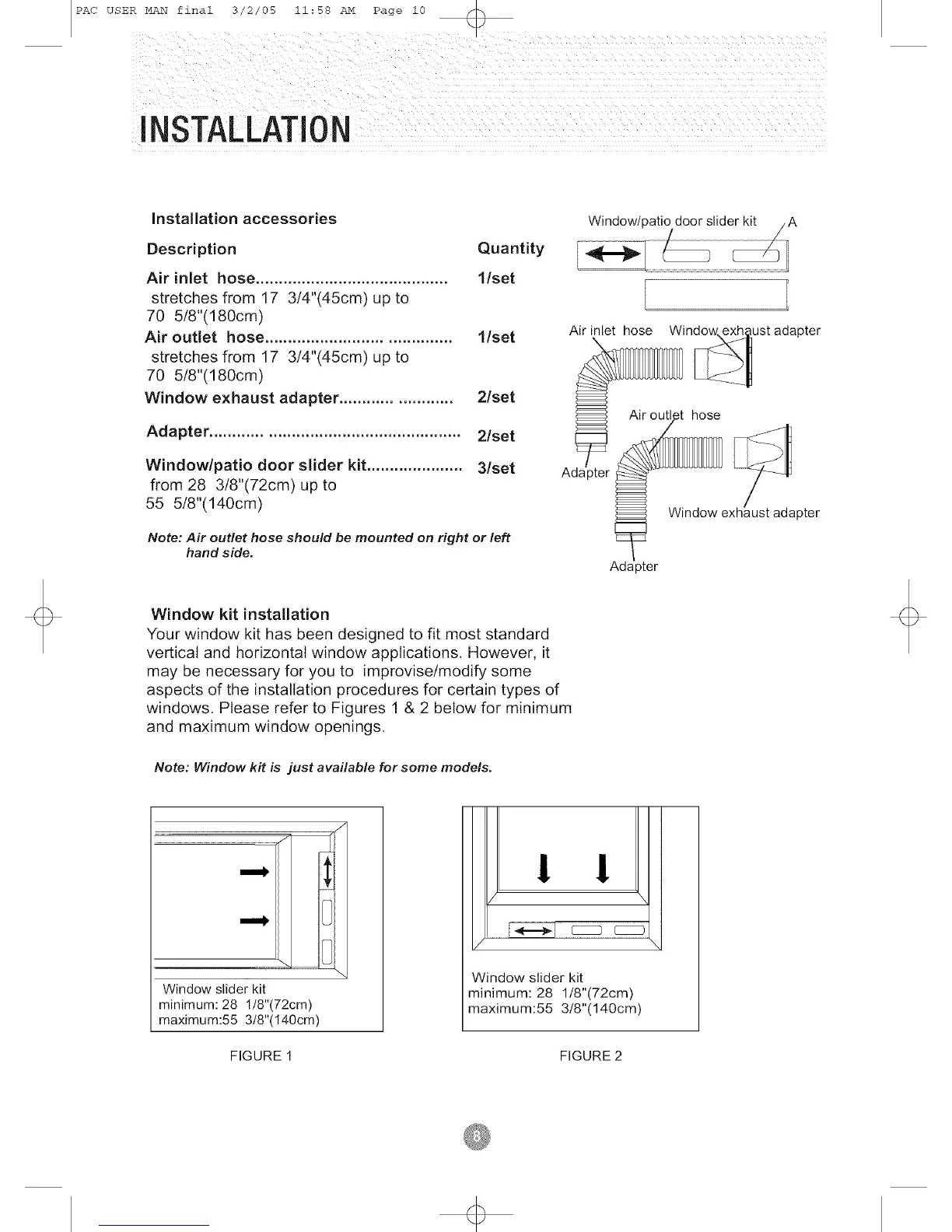

INSTALLATION
installation accessories
Description Quantity
Air inlet hose .......................................... l/set
stretches from 17 3/4"(45cm) up to
70 5/8"(180cm)
Air outlet hose ........................................ l/set
stretches from 17 3/4"(45cm) up to
70 5/8"(180cm)
Window exhaust adapter ........................ 2/set
Adapter ...................................................... 2/set
Window/patio door slider kit ..................... 3/set
from 28 3/8"(72cm) up to
55 5/8"(140cm)
Note: Air outlet hose should be mounted on right or left
hand side.
Window/patio door slider kit /A
! I
Ada _ter
Window kit installation
Your window kit has been designed to fit most standard
vertical and horizontal window applications. However, it
may be necessary for you to improvise/modify some
aspects of the installation procedures for certain types of
windows. Please refer to Figures 1 & 2 below for minimum
and maximum window openings.
Note: Window kit is just available for some models.
/
Window slider kit
minimum: 28 1/8"(72cm)
maximum:55 3/8"(140cm)
FIGURE 1
Window slider kit
minimum: 28 1/8"(72cm)
maximum:55 3/8"(140cm)
FIGURE 2
