PAC USER MAN final 3/2/05 11:58 AM Page 7 O

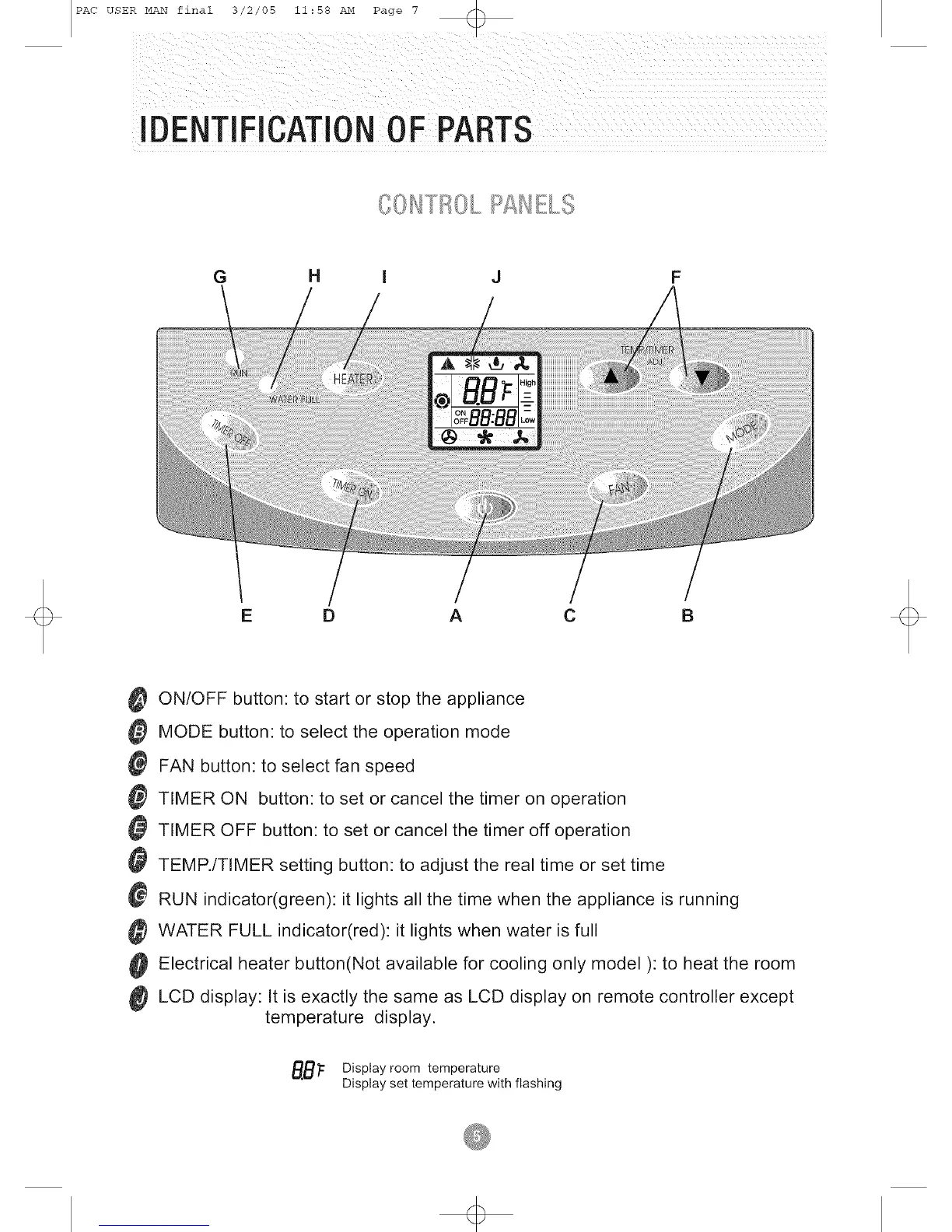

iDENTiFiCATiONOF PARIS
G H I J F
E D A C B
0
ON/OFF button: to start or stop the appliance
MODE button: to select the operation mode
FAN button: to select fan speed
TIMER ON button: to set or cancel the timer on operation
TIMER OFF button: to set or cancel the timer off operation
TEMP./TIMER setting button: to adjust the real time or set time
RUN indicator(green): it lights all the time when the appliance is running
WATER FULL indicator(red): it lights when water is full
Electrical heater button(Not available for cooling only model ): to heat the room
LCD display: It is exactly the same as LCD display on remote controller except
temperature display.
_.B_ Display room temperature
Display set temperature with flashing
