ADOBE FRAMEMAKER 10
MIF Reference
224
# Now draw all the black bars, since they have the same
fill.
# Set the fill for the first bar; the others inherit the
fill
# pattern.
<Rectangle <GroupID 1>
<Fill 1>
<ShapeRect 1.10" 1.97" 0.13" 0.38">
>
<Rectangle <GroupID 1>
<ShapeRect 1.60" 1.72" 0.13" 0.63">
>
<Rectangle <GroupID 1>
<ShapeRect 2.10" 1.22" 0.13" 1.13">
>
<Rectangle <GroupID 1>
<ShapeRect 2.60" 0.85" 0.13" 1.50">
>
# Define the group for all the objects to make the chart
easier
# to
# manipulate after it's imported into a FrameMaker
document.
<Group <ID 1>
>

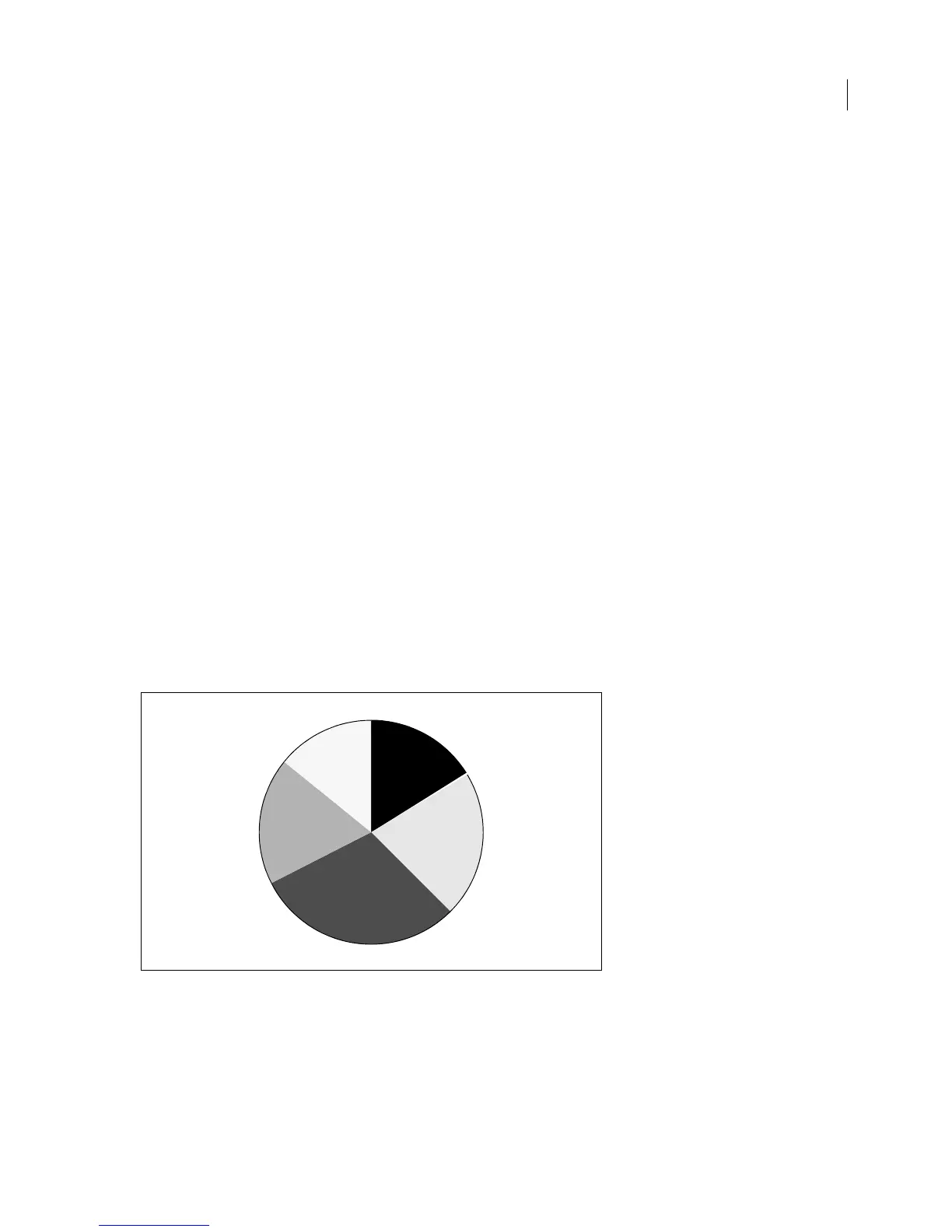

Pie chart example
When the MIF in this sample is imported into a page or graphic frame in a document, FrameMaker centers the chart
in the page or graphic frame. This example is in the file
piechart.mif.
<MIFFile 8.00> # Generated by xyzgrapher 3.5; identifies this as a
# MIF file.
# All dimensions are in points.
<Units Upt >
# Set the current pen pattern, width, and fill pattern.
<Pen 0>
