ADS FlashLogic FLRSBA - FLRSBA + CRIMESTOPPER; Compatible Accessories

Patent No. US 8,856,780 CA 2759622 FLRSBA + CRIMESTOPPER

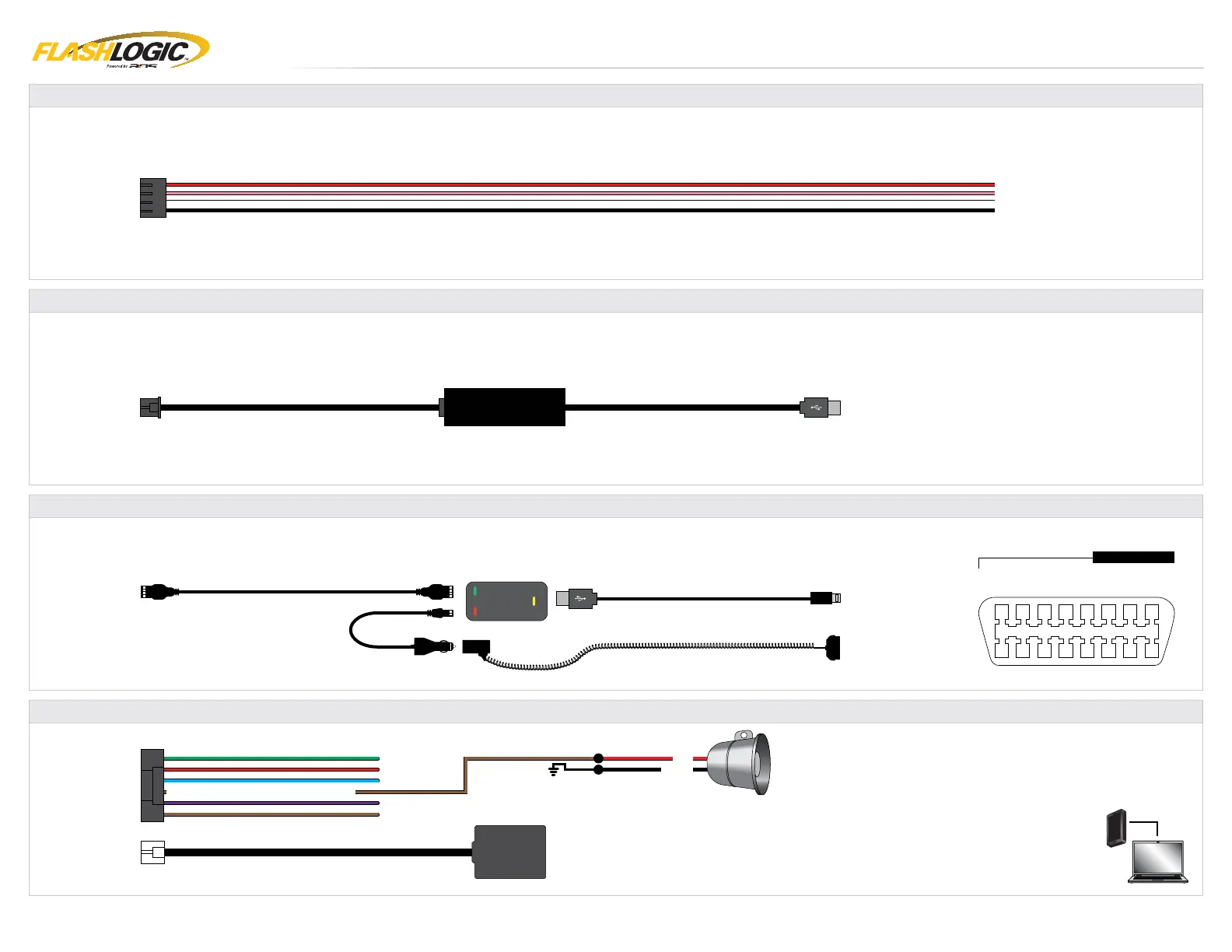

COMPATIBLE ACCESSORIES - 1 OF 2
MODULE
M1
FLASHLOGIC: ADS-AHR-PWR HIGH CURRENT HARNESS SOLD SEPARATELY
FLASHLOGIC: FLPROG WEBLINK CABLE SOLD SEPARATELY
COMPUTER
USB PORT
4 PIN BLACK CABLE
MODULE
M10
10 11 12 13 14 15 16
1 2 3 4 5 6 7 8
9
MOBILE DEVICE
PORT
OBDII CONNECTOR
4 PIN BLACK CABLE
MODULE
M10
OBDII CONNECTOR
FLASHLOGIC: FLWLMAN1, FLWLMAP1 WEBLINK MOBILE SOLD SEPARATELY
TO ACTIVATE THE BUILT-IN TILT & SHOCK SENSOR,
THE SHOCK SENSOR PORT FOR COMPATIBLE ACCESSORIES AND THE SIREN OUTPUT:
1-LOG INTO YOUR WEBLINK ACCOUNT.
2-CONNECT YOUR CONTROL MODULE AND FOLLOW THE PROGRAMMING STEPS.
3-SELECT BASEC AND ENTER THE 16 DIGIT ACTIVATION CODE.
4-PROCEED WITH THE PROGRAMMING STEPS AND INSTALLATION.
TO ACTIVATE THE BUILT-IN TILT & SHOCK SENSOR,
THE SHOCK SENSOR PORT FOR COMPATIBLE ACCESSORIES AND THE SIREN OUTPUT:
1-LOG INTO YOUR WEBLINK ACCOUNT.
2-CONNECT YOUR CONTROL MODULE AND FOLLOW THE PROGRAMMING STEPS.
3-SELECT BASEC AND ENTER THE 16 DIGIT ACTIVATION CODE.
4-PROCEED WITH THE PROGRAMMING STEPS AND INSTALLATION.
: DIGITAL TILT SENSOR
: GLASS BREAK SENSOR
: FIELD DISTURBANCE/MOVEMENT SENSOR
: DUAL STAGE PIEZO SHOCK SENSOR
: DUAL STAGE INFRASONIC SHOCK SENSOR
DUB1: DIGITAL TILT SENSOR
CAGBS: GLASS BREAK SENSOR
MV3: FIELD DISTURBANCE/MOVEMENT SENSOR
AS9492A: DUAL STAGE PIEZO SHOCK SENSOR
AS94954P: DUAL STAGE INFRASONIC SHOCK SENSOR
FLASHLOGIC: BASEC / VOXX: DUB1, CAGBS, MV3, AS9492A, AS94954P SECURITY PACKAGE SOLD SEPARATELY
07 BROWN•BLACK DOT - SIREN (+) OUTPUT
RED
BLACK
BASEC SIREN
MODULE
M2
MODULE
M13
OPTIONAL SENSORS
www.idatalink.comAutomotive Data Solutions Inc. © 2022 FLRSBA
PAGE 18 OF 45
• 20220110FLRSBA + CRIMESTOPPER
