ITC8113 / TabX® 34
© ads-tec Industrial IT GmbH • Heinrich-Hertz-Str. 1 • 72622 Nürtingen • Germany

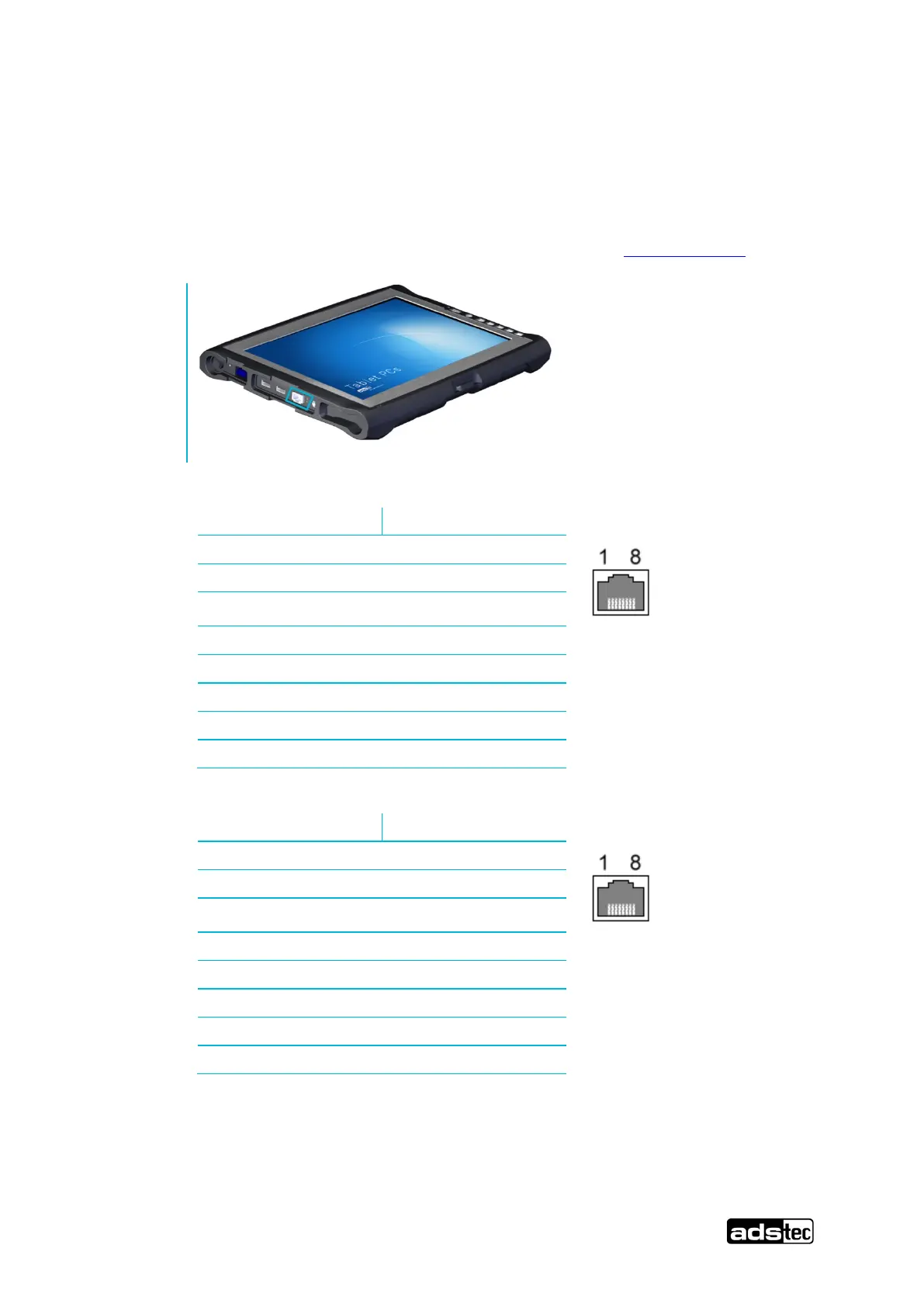

6.5 Network connection (RJ45)
If the drivers required for functioning are installed on the device, the device may be integrated
in an Ethernet network supporting the 10/100/1000Mbit standard by using the Ethernet
10/100/1000 BaseT network connector.
The specifications of this network topology must be observed. If the drivers necessary for the
function are not installed, they can be downloaded from the website www.ads-tec.de.
10/100Mbit
Pin Signal
1 TX +
2 TX -
3 RX +
4 NC
5 NC
6 RX -
7 NC
8 NC
1000 BaseT
Pin Signal
1 D1+
2 D1-
3 D2+
4 D3+
5 D3-
6 D2-
7 D4+
8 D4-
