6.4 USB interfaces
The USB interfaces are used for connecting peripherals with USB connection.
These interfaces comply with the USB 3.0 standard requirements.
USB 3.0
Pin
Signal
1
VBUS
2
D -
3
D +
4
GND
5
StdA_SSRX−
6
StdA_SSRX+
7
GND_DRAIN
8
StdA_SSTX−
9
StdA_SSTX+

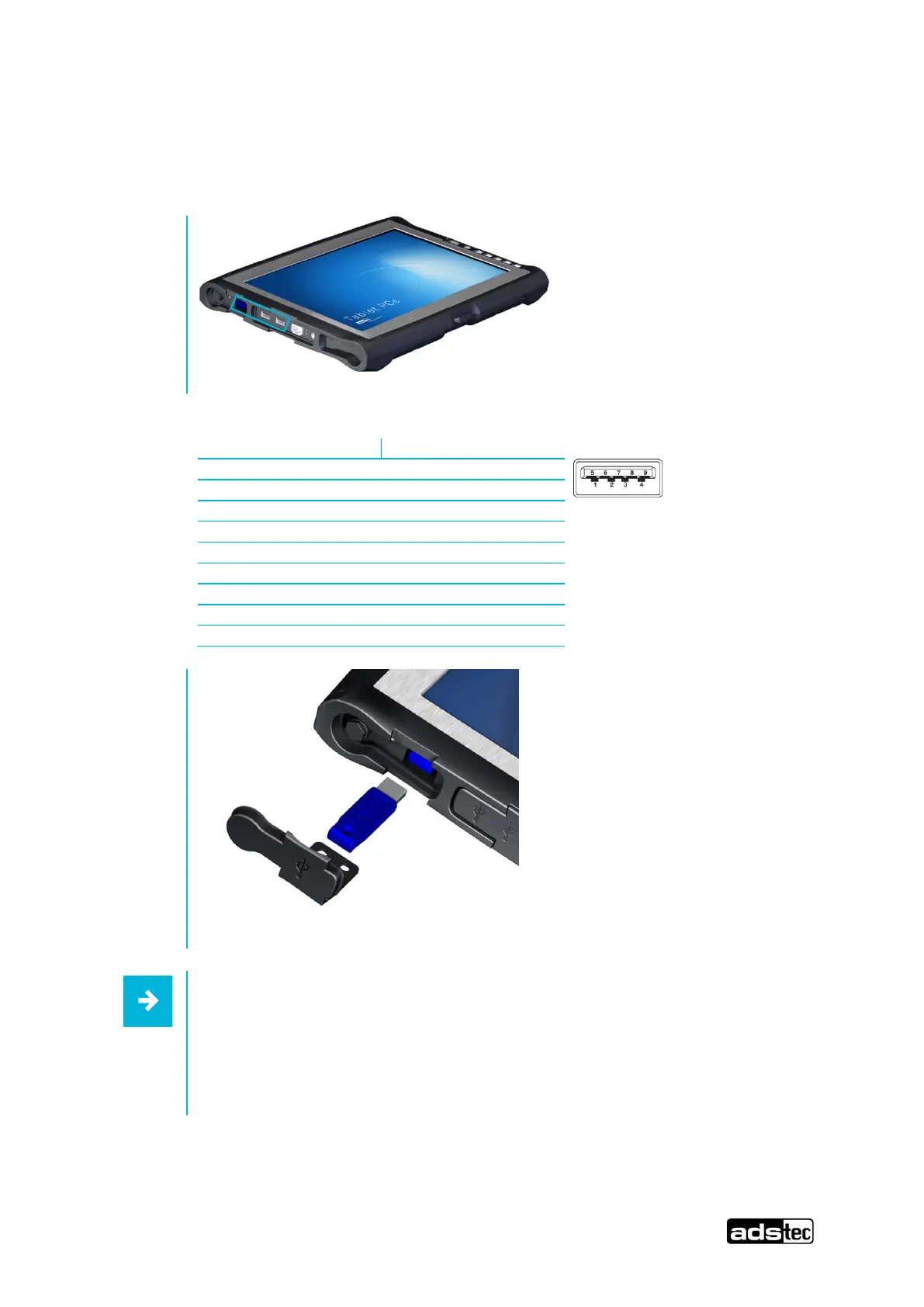

Recommendation for use:
The recessed USB interface (not available in the Display port version)
enables the use of a USB dongle. This can be operated in the device.
The two side USB interfaces are designed for 1A.
Exception: the recessed USB interface, which is designed for 1.8A.
