Advanced Energy Thyro-PX 3PX User Manual

Rating
Self cooling
Forced cooling
Temperature (°C)

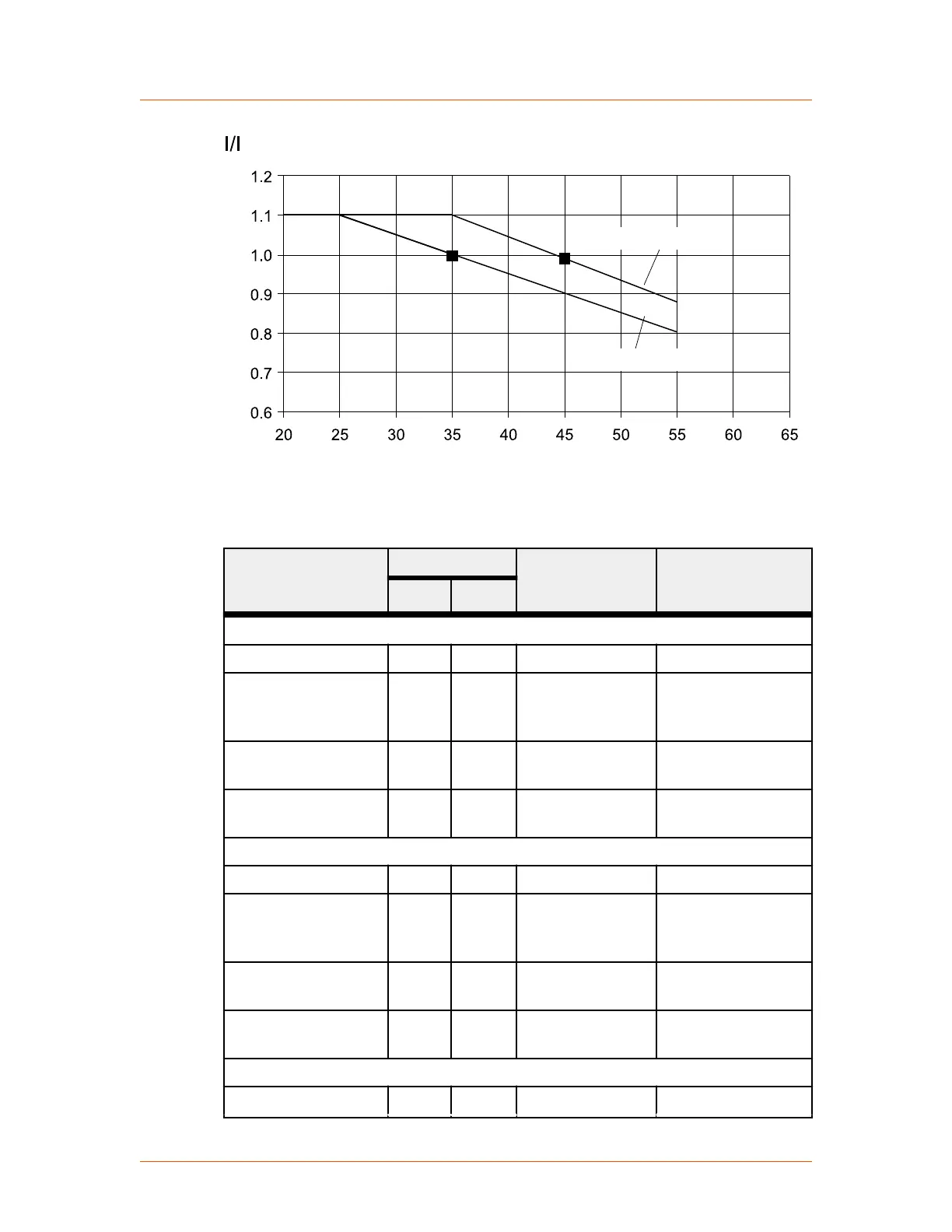

Figure 3‑1. Current derating
Table 3‑8. Fan current, air volume, and sound pressure
Model Current (A) Air Volume
(m
3
/h)
Sound Pressure
(dbA @ 1m)
50 Hz 60 Hz
1PX
200 HF, 280 HF 0.22 0.22 120 53
300 HF, 350 HF,
495 HF, 500 HF,
650 HF
0.50 0.38 150 67
780 HF, 1000 HF,
1400 HF, 1500 HF
0.55 0.60 580 75
2000 HF, 2100 HF,
2600 HF, 2900 HF
1.00 1.20 2200 81
2PX
200 HF, 280 HF 0.50 0.38 200 67
300 HF, 350 HF,
495 HF, 500 HF,
650 HF
0.50 0.38 230 67
780 HF, 1000 HF,
1400 HF, 1500 HF
1.00 1.20 1200 81
1850 HF, 2000 HF,
2400 HF, 2750 HF
1.00 1.20 2100 81
3PX
200 HF, 280 HF 0.50 0.38 260 67
