X4 I/O bus

X3 24 V auxiliary power supply input

X21 Fault relay K1

X22 Limit relay K2

X23 Optional relay K3

X1 AC auxiliary power supply input

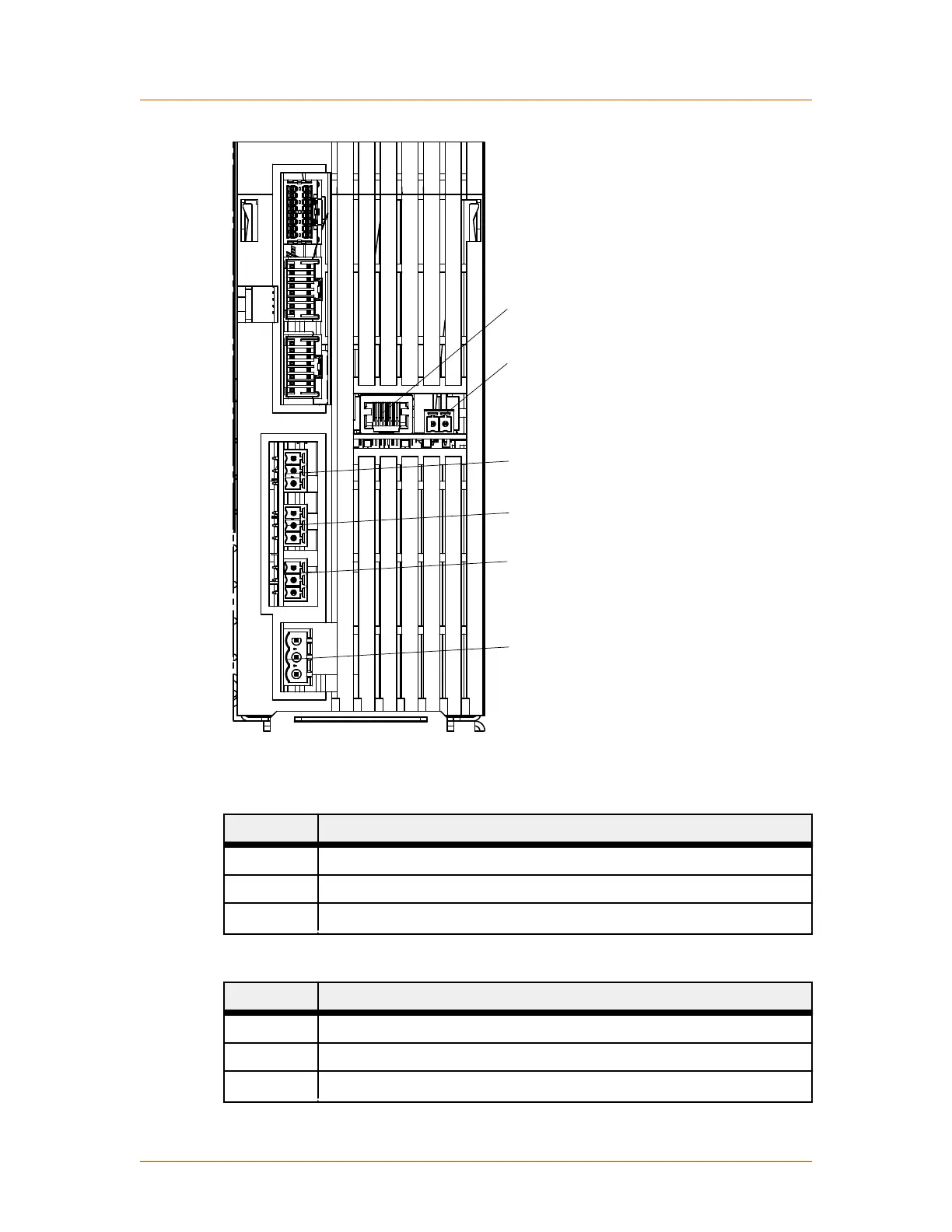

Figure 4‑5. Bottom I/O connectors

Table 4‑7. Relay K1, K2, and K3 connectors (X21, X22, X23)

Pin Function

1 Common

2 Normally closed

3 Normally open

Table 4‑8. AC auxiliary power supply input (X1)

Pin Function

1 L1

2 N

3 Ground

Advanced Energy

Thyro-PX

Power Controller

57010148-00G Communication Controls 4‑9
