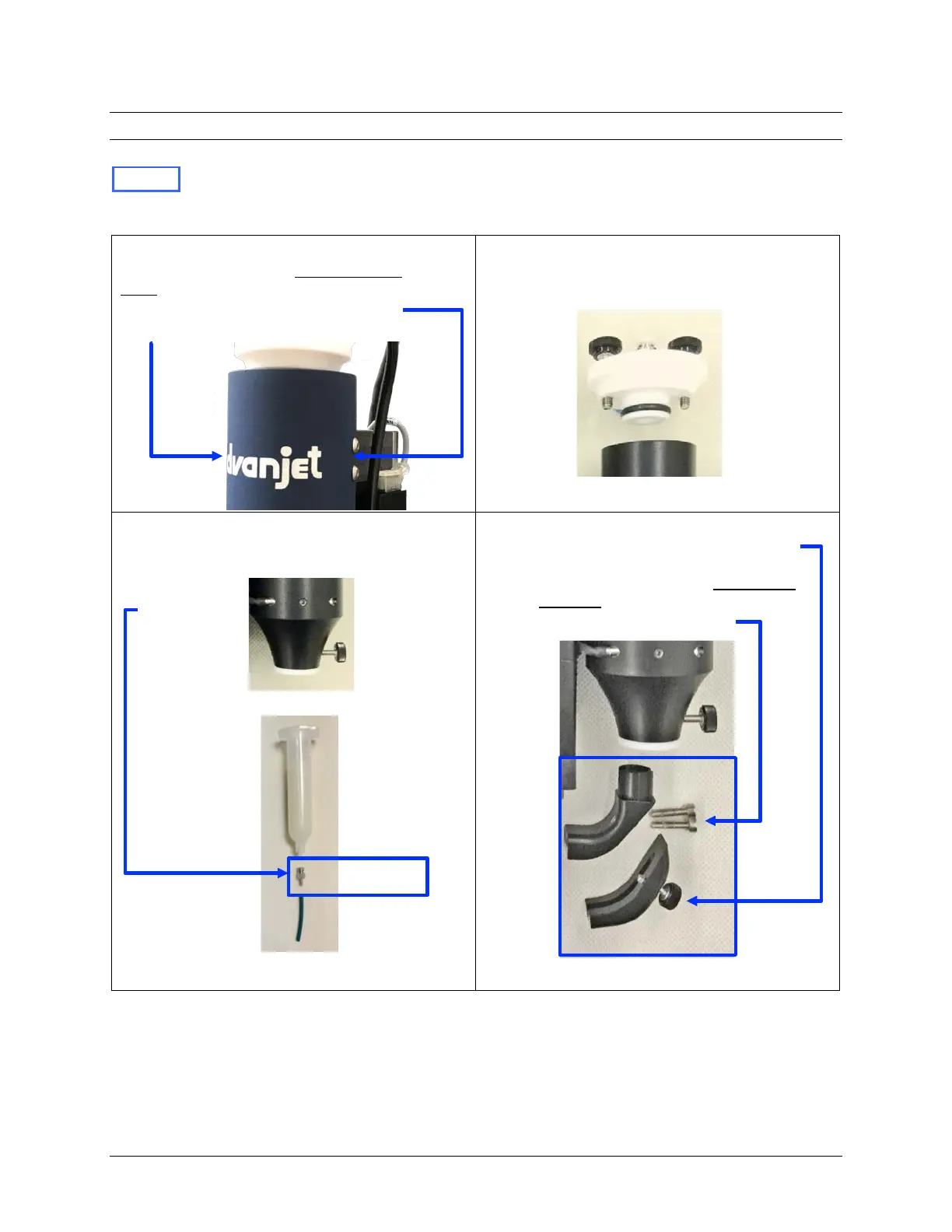

2.3 Remove Syringe and Feed Tube Enclosure

KEEP these parts and screws to set aside and reinstall. A checklist is provided in

section 2.7.

2.3.1 Remove the Melter Cover

Use the 2.5 mm driver to remove and set

aside the four screws securing the melter

cover to the syringe holder (two on each

side).

2.3.2 Remove the Receiver Head

Loosen the receiver head thumbscrews and

remove the receiver head.

2.3.3 Remove the Syringe

 Loosen the luer lock securing the feed

tube.

2.3.4 Remove the Feed Tube Enclosure

 Loosen the thumbscrew securing the

lower feed tube enclosure.

 Use the 2.5 mm driver to remove and

set aside the two screws securing the

upper feed tube enclosure.



Detach the

luer from

the feed

tube. Keep

luer to

clean and

reuse.



Discard

feed tube.

KEEP

Page 12 of 28 Advanjet HM-2600 Hotmelt Jet Maintenance and Repair 3A6328A
