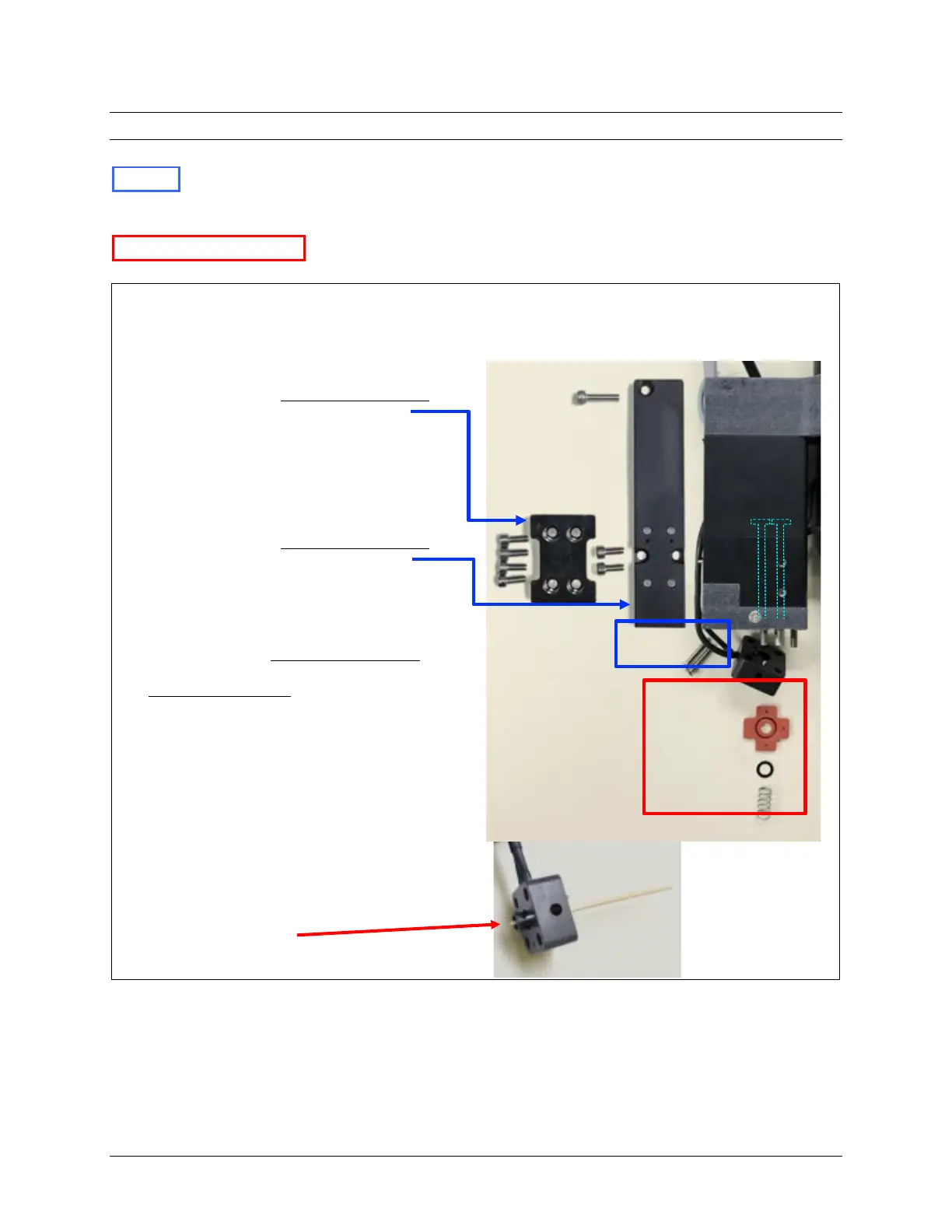

2.4 Remove Mounting Plates and Top Cover
KEEP these parts and screws to set aside and reinstall. A checklist is provided in
section 2.7.
BK-2001 or HK-2600 kit replaces these parts.
2.4.1 Remove Nozzle Plate (if present)
Going through the melter holder, use the 3 mm driver to loosen the two screws that secure the nozzle
plate. Remove the nozzle plate and set aside; nozzle plate screws will be removed later.
2.4.2 Remove the Dovetail Plate
Using the 3 mm driver, remove and set aside the
four screws securing the dovetail plate.
2.4.3 Remove the Mounting Plate
Using the 3 mm driver, remove and set aside the
three screws securing the mounting plate.
2.4.4 Disconnect Heater Block
 Use the #1 PH to remove and set aside the two
screws securing the heater block.
 Remove and discard the heater seal and
washer, and the jet compression spring.
2.4.5 Remove Heater Bearing
 Use a cleaning swab or similar tool to push out
the heater bearing.
 Leave any lubricant in place in the heater block;
Discard the bearing.
KEEP
DISCARD
