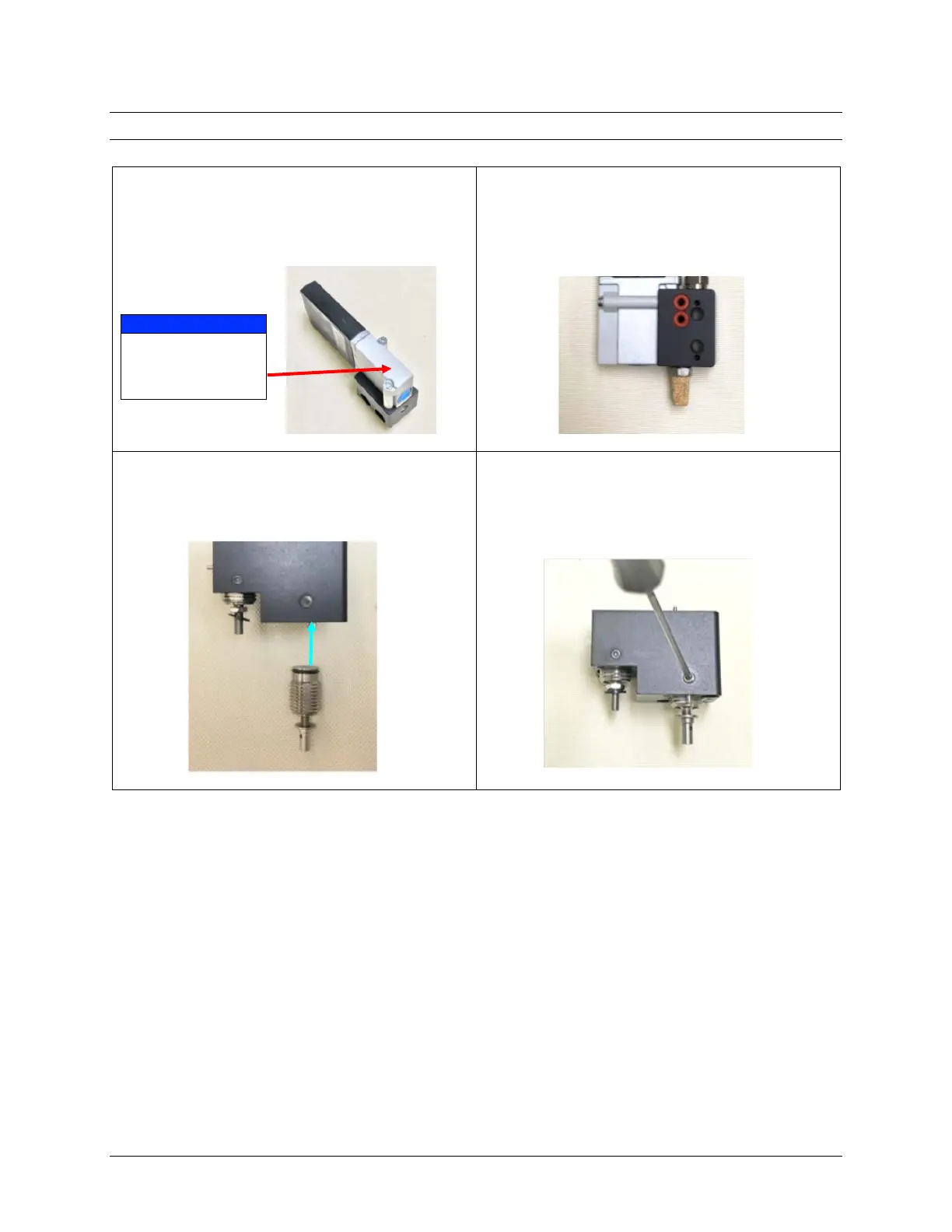

3.2 Install the Main Air Valve and Hammer Cylinder
3.2.1 Install the Air Valve
Apply a small amount of Loctite 242 to the air
valve screws and install the new air valve on the
valve mount as shown.
NOTICE
Over-tightening
can easily break
this plastic.
3.2.2 Install the Silencer
Apply a small amount of Loctite 242 to the new
muffler and install into the valve mount. The fit
should be snug, but not so tight that it crushes the
rubber washer.
3.2.3 Install the Air Cylinder
Install the new air cylinder and use the 13 mm
wrench to tighten the cylinder in place until it hard
stops.
3.2.4 Tighten the Air Cylinder Setscrew
Apply a small amount of Loctite 242
to the
setscrew and use the 2 mm hex driver to tighten.
